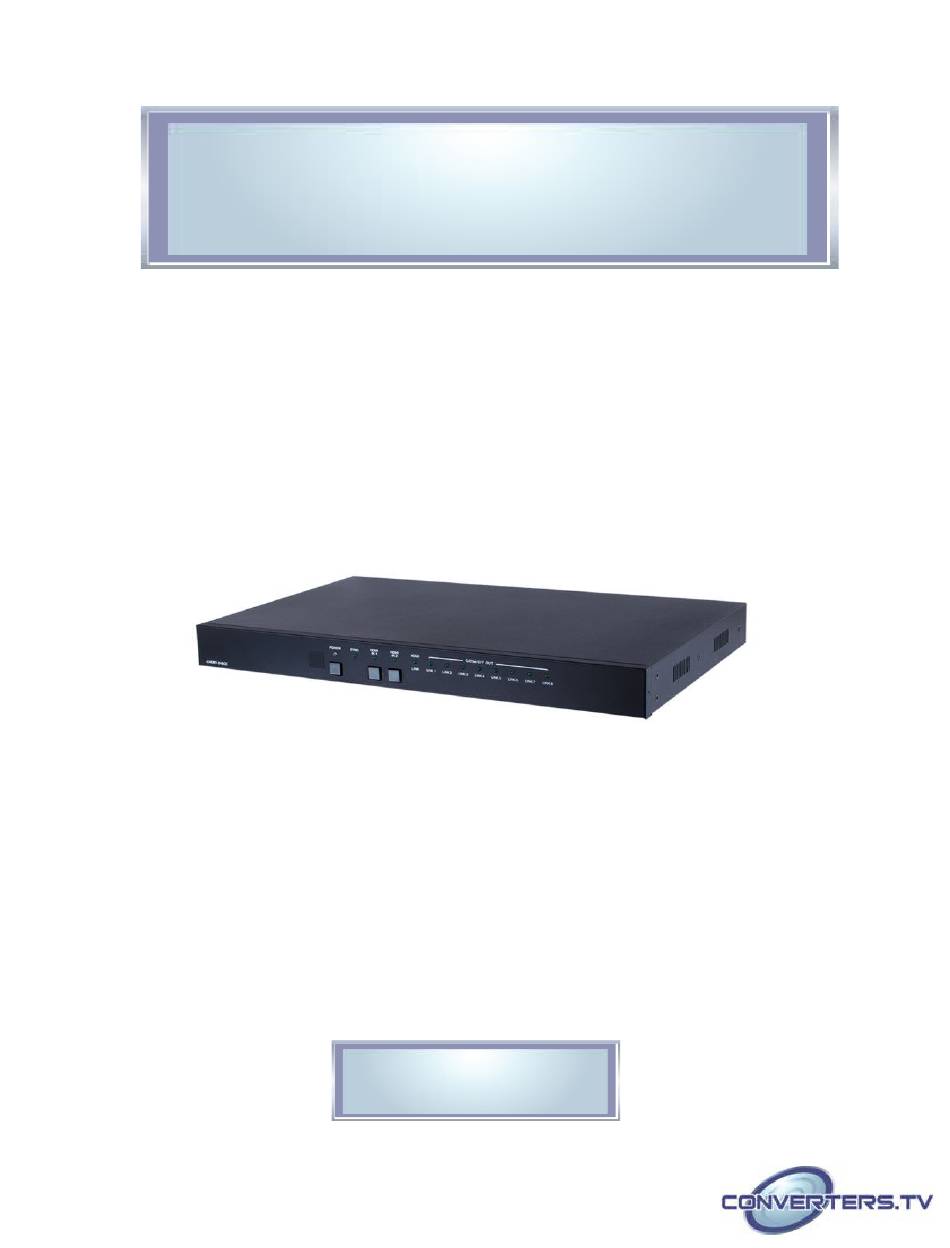

- Page 1 HDBaseT 2×8 HDMI over CAT5e/6/7 Switch Splitter with LAN Serving # 15325 Operation Manual...
- Page 2 Introduction The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and eight CAT5e/6/7 outputs. The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters.
- Page 3 System Requirements • Source equipment with HDMI output connector • Display TV/Monitor with HDMI input connector • HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables Operation Front Panel Controls and Functions IR Window: Receive IR signal from the package included remote control only. POWER Button &...
-
Page 4: Optical Out
IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. - Page 5 IR Cable Pin Assignment Remote Control Power: Press the button to turn On/Off the unit. Input Selection 1/2: Press 1/2 to select HDMI input sources 1 or 2 RS-232 Pin Definition Define Tx/Rx TxD/RxD RxD/TxD Baud Rate: 115200bps Flow Control: None Data bit: 8 bits Stop Bit: 1 Parity: None...
- Page 6 RS-232 Commands Command Description Power 00 Power off (standby) Power 01 Power on Port 01 Select input 1 Port 02 Select input 2 Note: 1. All the RS-232 command will be not executed unless followed with carriage return and LF (Line Feed). 2.
- Page 7 Connection Diagram...
