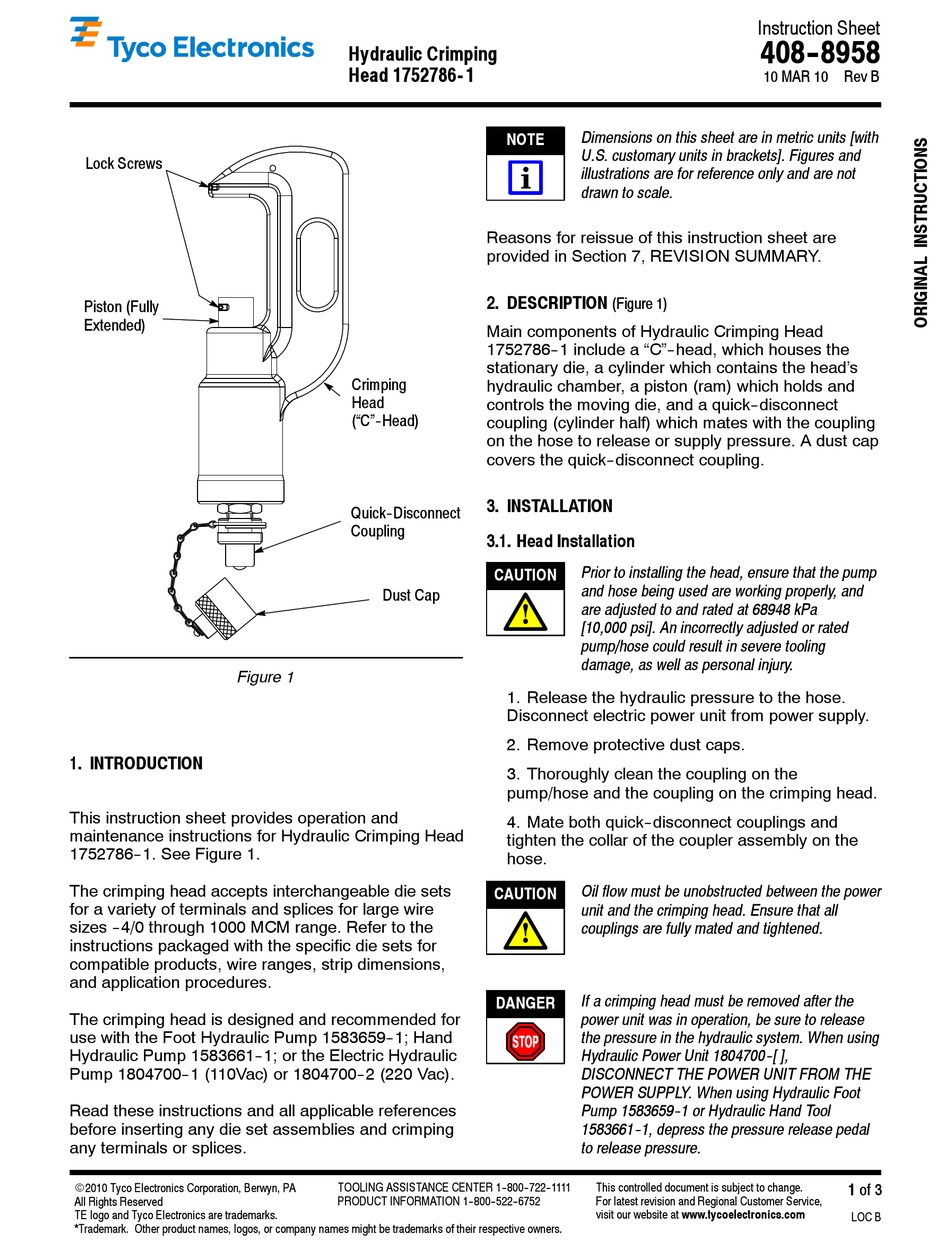

Tyco Electronics 1752786-1 Instruction Manual

Lock Screws
Piston (Fully
Extended)
Figure 1

1. INTRODUCTION

This instruction sheet provides operation and
maintenance instructions for Hydraulic Crimping Head
1752786--1. See Figure 1.
The crimping head accepts interchangeable die sets
for a variety of terminals and splices for large wire
sizes --4/0 through 1000 MCM range. Refer to the
instructions packaged with the specific die sets for
compatible products, wire ranges, strip dimensions,
and application procedures.
The crimping head is designed and recommended for
use with the Foot Hydraulic Pump 1583659--1; Hand
Hydraulic Pump 1583661--1; or the Electric Hydraulic
Pump 1804700--1 (110Vac) or 1804700--2 (220 Vac).
Read these instructions and all applicable references
before inserting any die set assemblies and crimping
any terminals or splices.
E2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
Hydraulic Crimping
Head 1752786- 1
NOTE
Reasons for reissue of this instruction sheet are
provided in Section 7, REVISION SUMMARY.

2. DESCRIPTION

Main components of Hydraulic Crimping Head
1752786--1 include a "C"--head, which houses the
stationary die, a cylinder which contains the head's
Crimping
hydraulic chamber, a piston (ram) which holds and
Head
controls the moving die, and a quick--disconnect
("C"- - Head)
coupling (cylinder half) which mates with the coupling
on the hose to release or supply pressure. A dust cap
covers the quick--disconnect coupling.

3. INSTALLATION

Quick- - Disconnect
Coupling

3.1. Head Installation

CAUTION
Dust Cap
1. Release the hydraulic pressure to the hose.
Disconnect electric power unit from power supply.
2. Remove protective dust caps.
3. Thoroughly clean the coupling on the
pump/hose and the coupling on the crimping head.
4. Mate both quick--disconnect couplings and
tighten the collar of the coupler assembly on the
hose.
CAUTION
DANGER
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Dimensions on this sheet are in metric units [with
U.S. customary units in brackets]. Figures and
i
illustrations are for reference only and are not
drawn to scale.
(Figure 1)
Prior to installing the head, ensure that the pump
and hose being used are working properly, and
!
are adjusted to and rated at 68948 kPa
[10,000 psi]. An incorrectly adjusted or rated
pump/hose could result in severe tooling
damage, as well as personal injury.
Oil flow must be unobstructed between the power
unit and the crimping head. Ensure that all
!
couplings are fully mated and tightened.
If a crimping head must be removed after the
power unit was in operation, be sure to release
the pressure in the hydraulic system. When using
Hydraulic Power Unit 1804700- - [ ],
DISCONNECT THE POWER UNIT FROM THE
POWER SUPPLY. When using Hydraulic Foot
Pump 1583659- - 1 or Hydraulic Hand Tool
1583661- - 1, depress the pressure release pedal
to release pressure.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 8958
10 MAR 10 Rev B
1 of 3
LOC B
