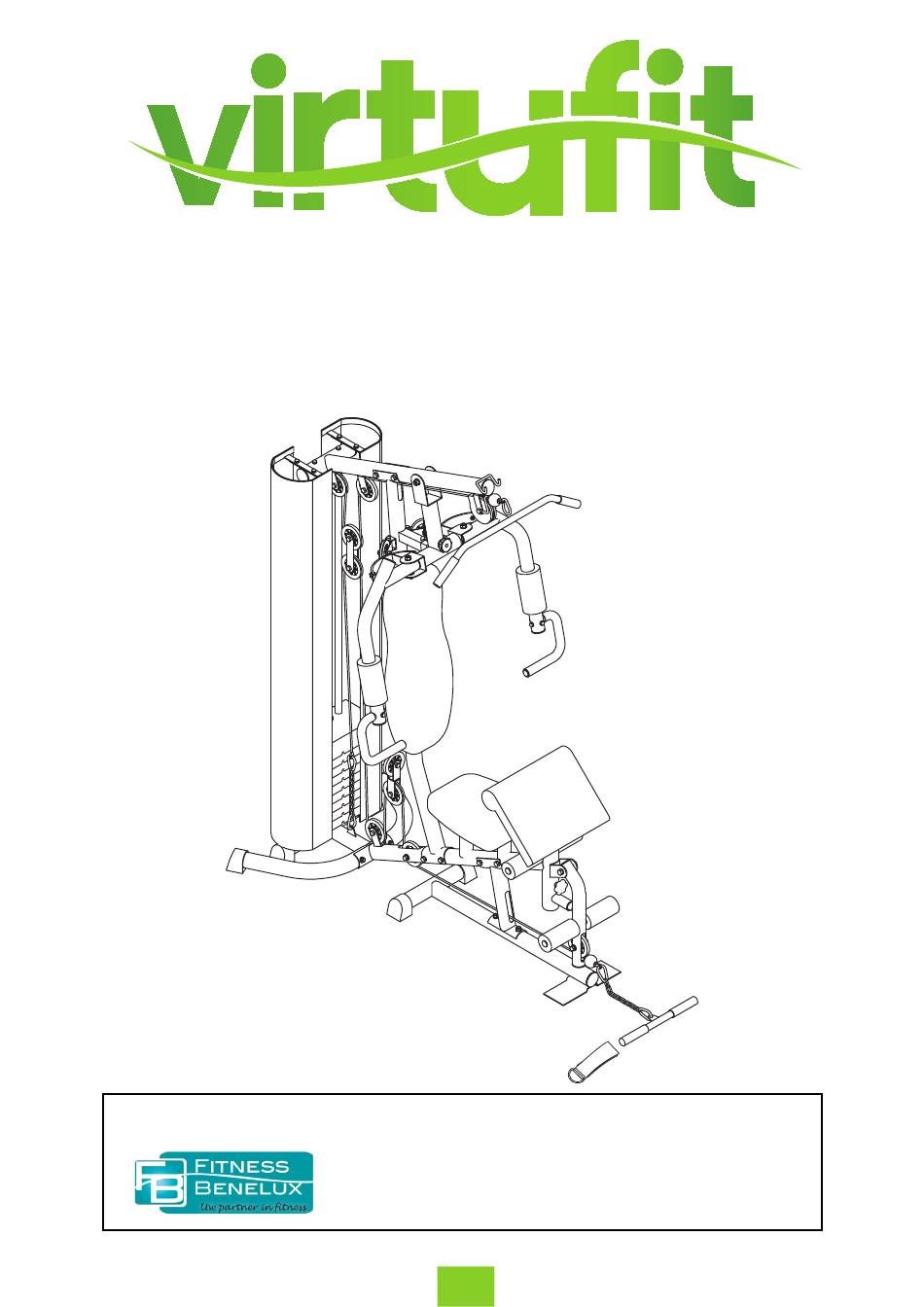

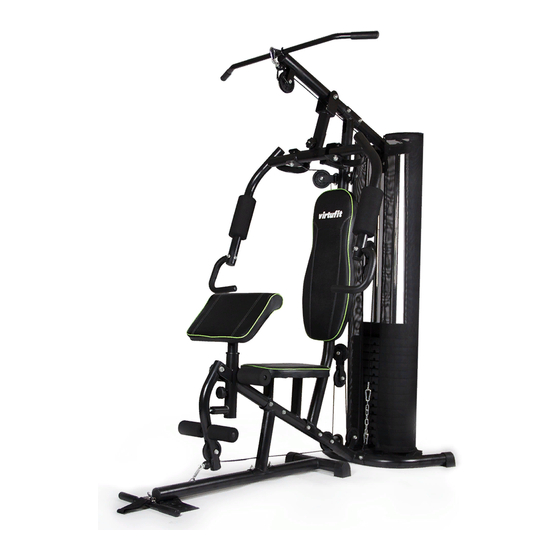

- Page 1 Homegym KH 1 Owners manual For questions or missing items, please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 7553 LZ Hengelo service@fitnessbenelux.nl The Netherlands www.fitnessbenelux.nl...
- Page 2 CONTENTS Important precautions Detailed drawing List of components 21-22 Assembly instructions 23-31 Training exercises Virtufit Krachtstation Homegym KH 1...
-
Page 3: Important Safety Precaution
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. SAVE THESE INSTRUCTIONS. Virtufit homegym KH 1... -
Page 4: Exploded View
EXPLODED VIEW Virtufit homegym KH 1... -
Page 5: Parts List
Hex head bolt M10 x 80mmL Powder metal ring 12 Powder metal ring 16 Select pin Curve washer OD22XID8.3 Curve washer OD23XID10.3 Flat washer OD23XID10.3 Flat washer OD23XID8.3 Flat washer OD24XID12.3 Flat washer OD40XID12.5 M8 nylon nut M10 nylon nut Virtufit homegym KH 1... - Page 6 Weight Stack 10 lbs Cable for lat bar Cable for butterfly arm Cable for lower pull bar Cushion support tube Bushing Rubber stopper knob Elbow cushion Bracket for cloth cover Spring Cloth cover for left/right Plum-nut Ankle strap Virtufit homegym KH 1...
- Page 7 Attach the Base Frame (01) to Upright support tube (02) and tighten by X2 hex Head Bolt (27), X4 Flat Washer (34) and X2 Nylon Nuts (39). Attach the Main support tube (05) to the Seat Support Tube(04)and tighten by X2 hex Head Bolt (30), X4 Flat Washer (35) and X2 Nylon Nuts (39). Virtufit homegym KH 1...
- Page 8 Weight Stack (63) upper the Select Bar (19) and place the Flat Washer (37) upper the Weight Stack (63). lnsert the Select Pin (32) through the Weight Stack (64) into the hole of Select Bar (19). Virtufit homegym KH 1...
- Page 9 Place the Guiding Tube (07) into the Bridge Tube (8) and tighten by X2 Flat Washer (33) and X2 Hex Head Bolt (22). Attach the Bridge Tube (8) to the Upright Support Tube (05) and tighten by X2 Hex Head Bolt (30), X4 Flat Washer (35) and X2 Nylon Nuts (39.) Virtufit homegym KH 1...
- Page 10 Attach the Foam Tube for Leg Curl (14) into the holes on Leg Curl Tube (06) and front/upper bracket of Seat Support Tube (04). Attach the Foam for Leg Curl Tube (54) onto the 2 sides of each Foam Tube for Leg Curl (14). Virtufit homegym KH 1...
- Page 11 Hex Head Bolt (22). Do the same procedure of Butterfly Arm L (1OL) with the ether Handlebar (11). Attach the Pulley Bracket (20) onto the 2 sides of Upright Support Tube (Oq) tighten by X2 Hex Head Bolt (23), X4 Flat Washer (35) and X2 Nylon nuts (39) for 2 sides. Virtufit homegym KH 1...
- Page 12 Draw the Cable (65) downwards between the two Guiding Tube (07) and fully thread the bolt on the end of the Cable (65) into the top opening on the Select Bar (19). Attach the Lat Bar (12) /Ankle Strap (77) to the front end of the Cable (65), connect by X1 Hook (62). Virtufit homegym KH 1...
- Page 13 (20) on the left side of the upright Support Tube (05), tighten by X1 Hex Head Bolt (25) and X1 Nylon Nut (39). Attach the ether end of Cable (66) to the hookon the Left Butterfly Arm (10L), tighten by X1 Hex Head Bolt (24), X1 Flat Washer (35A) and X1 Nylon Nut (38). Virtufit homegym KH 1...
- Page 14 X2 Hook (62). Note: adjust the Cable (67) to be tighten enough and lock on certain position of Chain (61) by Hook (62). Attack the Lower Pull Bar (13)/ Ankle strap (77) to the front end of Cable (67), connecting by Chain 6 links (61) and X2 Hook (62). Virtufit homegym KH 1...
- Page 15 Do the same procedure for Right Cloth Cover (75) to the right side by the same part. For optimal operation of the homegym we recommend to spray the conductive tubes with silicone spray on which the weight stack glides. WARNING: make sure all spare parts are tigten enough before using the machine. Virtufit homegym KH 1...
-
Page 16: Leg Kick Back
Replace damaged components immediately and contact your supplier. Keep the homegym dust free. After use, make sure you use a wet towel and a bit of soap to clean the homegym. After cleaning dry with a soft towel. Virtufit homegym KH 1...
