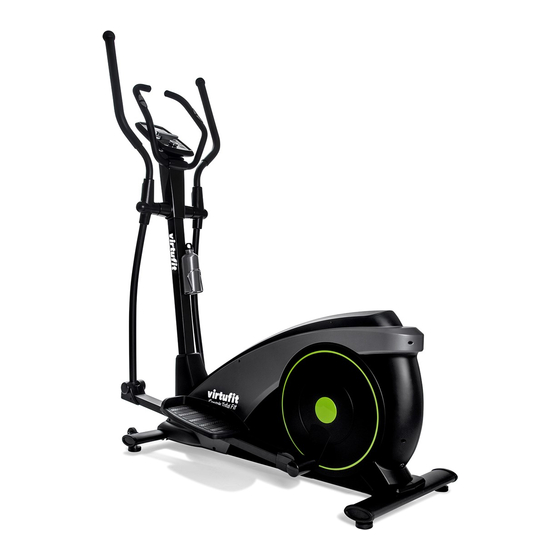

- Page 1 Total Fit Crosstrainer User manual...
-
Page 2: Table Of Contents
INDEX Safety instructions Assembly instructions Maintenance Computer instruction 11-18 Exploded Drawing Parts List Virtufit iConsole Total Fit Crosstrainer... -
Page 3: Safety Instructions
Ensure that those present are aware of possible hazards, e.g. movable parts during training. Warning: incorrect/excessive training can cause health injuries. Consult your physician before starting with any exercise program. He or she can advise on the kind of training and which impact is suitable. Virtufit iConsole Total Fit Crosstrainer... -
Page 4: Assembly Instructions
In this way you prevent the head of the socket head from being turned. STEP 1 – Install the Front bottom tube (2) and Rear bottom tube (3) to the Main frame (1) with the Hex socket screws (17), Spring washers (18) and Arc washers (16) as shown. Virtufit iConsole Total Fit Crosstrainer... - Page 5 – Connect the Extension sensor wire (59) with the Sensor wire (57) properly at first, then lock the Handlebar post (4) onto the Main frame (1) with the Allen bolts (53), Spring washers (18) and Flat washers (12), and then put on the Protective guard (58) in place. Virtufit iConsole Total Fit Crosstrainer...
- Page 6 (38), Flat washers (30) and Nylon nuts (31). Then recheck and lock the above mentioned Hex screws (26), Screws (37) and Nylon nuts (31) tightly; – – Lock the Pedal (34L/R) on the Pedal support (8L/R) tightly with the Hex screws (33), Flat washers (12) as shown. Virtufit iConsole Total Fit Crosstrainer...
- Page 7 – Thread the Hand pulse wires (54) into the hole of Handlebar post (4) and then take it out from the computer bracket. Lock the Fixed handlebar (5) on the Handlebar post (4) tightly with the Allen bolts (53) and Spring washers (18) as shown. Virtufit iConsole Total Fit Crosstrainer...
- Page 8 – Fix the Protective guard (36L/R) on the connecting joint of Swing tube (7L/R) and Pedal support (8L/R) with the Screws (35); – – Fix the Protective guard (28a/b) on the Pedal tube joint (23L/R) with the Screws (27) as shown. Virtufit iConsole Total Fit Crosstrainer...
- Page 9 – C: Lock the Kettle holder (62) on the Handlebar post (4) tightly with screw(63) and Flat washer (64). – You can plug in the adapter now. The power adapter can be plugged in at the rear of the machine as indicated by the arrow in the picture above. Virtufit iConsole Total Fit Crosstrainer...
-
Page 10: Maintenance
3. If you have a lot of calluses on your hands, it is more difficult for the sensors to measure, when this is the case a chest strap is recommended. Virtufit iConsole Total Fit Crosstrainer... -
Page 11: Computer Instruction
- Reverse to main menu during presetting workout value or stop mode. 4. Start/ Stop Start or Stop workout. 5. Encoder - Increase / Decrease Value. - Confirm / Setting selection. Virtufit iConsole Total Fit Crosstrainer... -
Page 12: Computer Instruction
Manual mode workout. PROGRAM 12 PROGRAM selections. USER User creates resistance level profile. H.R.C. Target HR training mode. RECOVERY Heart rate recovery status BODY FAT Body fat measurement. WATTS Workout power consumption. Range 10 ~ 350. Virtufit iConsole Total Fit Crosstrainer... - Page 13 U1~U4. Then entering work out section. 3. Turning and pressing encoder can enter Entering setting mode, the M (Manual) would flash in the matrix display with 1HZ. Turning the encoder can choose M(Manual), P(Program), ♥ (H.R.C.), W(Watt), U(User) cyclically. Virtufit iConsole Total Fit Crosstrainer...
- Page 14 (5) After START only can operate the function. RPM BAR and PULSE BAR values would change. Pressing STOP KEY could stop and all values would remain (HR signal would not effect). Pressing RESET KEY could return to PROGRAM SELECT. (see fig. 4-3) Virtufit iConsole Total Fit Crosstrainer...
- Page 15 (1) User can select 55%, 75%, 90% and TARGET value by turning and pressing encoder to confirm. During selecting the default value, which is calculated by age, would flash. (2) After setting TIME pressing START KEY to start program. Virtufit iConsole Total Fit Crosstrainer...
- Page 16 (2) Turning and pressing encoder user can set the program (the 8 LEVEL values) that each would flash until setting down. If user wants to stop setting, pressing encoder for 2 seconds, then the value would be the same as last setting. Virtufit iConsole Total Fit Crosstrainer...
- Page 17 The matrix only displaying time and pulse. Time would count down from 60 seconds and the pulse shows the real HR value. During or end testing pressing RECOVERY KEY to back to last display. And after testing continue display real HR value. Virtufit iConsole Total Fit Crosstrainer...
- Page 18 Download iConsole+ app in App Store or Google Play. Turn on Bluetooth on tablet or smartphone, search for console device and press Connect. Turn on iConsole+ app on tablet or smart phone, and press connect to start workout with tablet. (password: 0000) NOTE: 1.
-
Page 19: Exploded Drawing
EXPLODED DRAWING Virtufit iConsole Total Fit Crosstrainer... -
Page 20: Parts List
Sensor wire Screw M5x10 Protective guard 28 a/b Protective guard Each 2 Extension sensor wire Hex bolt M10x55 Flat washer D10x Ø20x2 Flat washer D10x Ø20x2 Adapter Nylon nut M10 Kettle holder Screw Flat washer Virtufit iConsole Total Fit Crosstrainer... - Page 21 For questions or missing parts please contact your dealer.
