Progeo Raptor Installation Guide

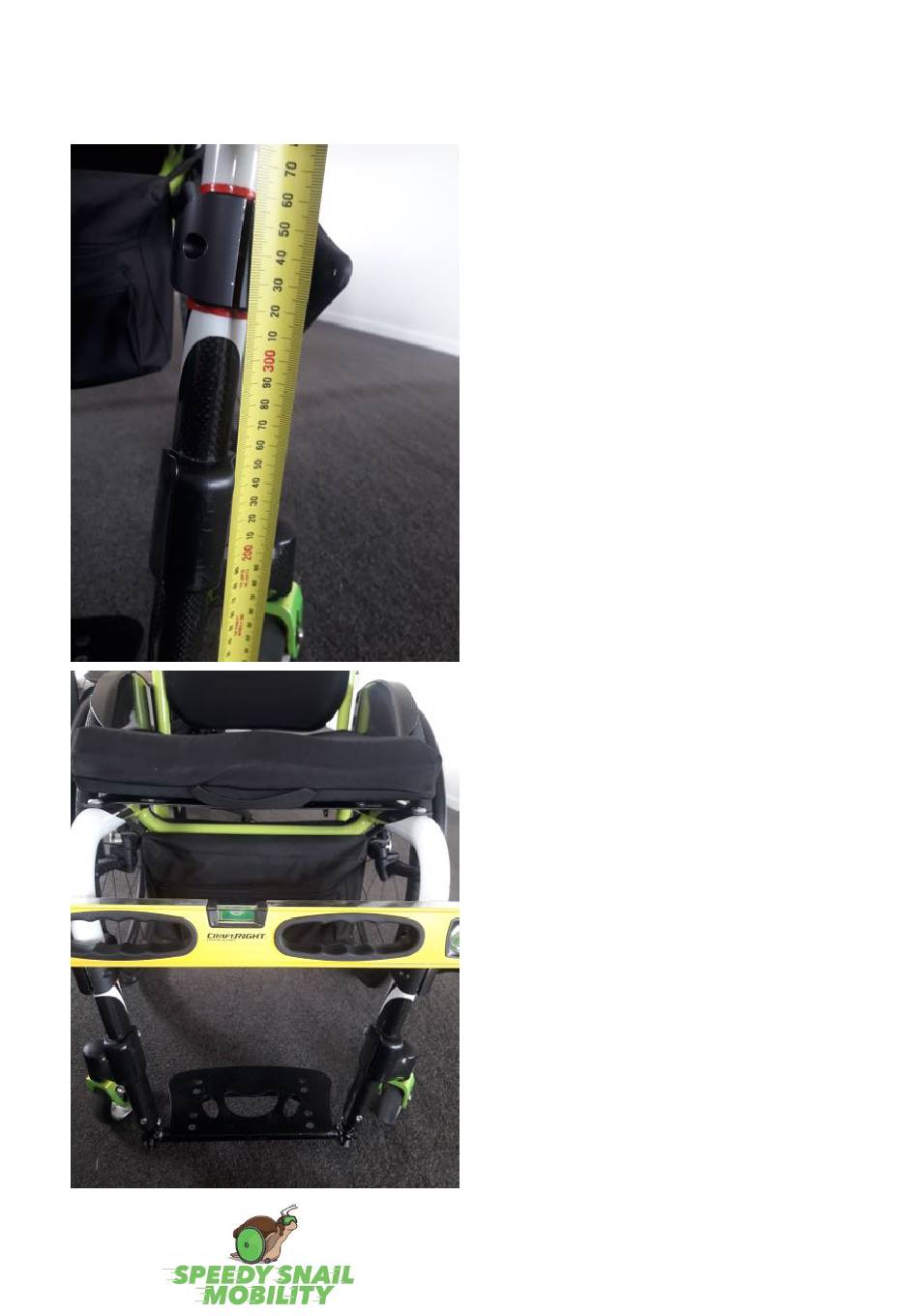

1. The optimum position for the clamps is
approximately 32 - 33cm from the bottom of
the clamp to the floor.
When tightening the bolts tighten in
increments starting with the two rear bolts
followed by the single front bolt.
If the wheel chair frame is >10 degrees either
side of 90 then the clamps can be rotated to
horizontal by loosening the large bolt.
2. If possible use a spirit level to position the
second clamp as having the two clamps level
is more important then the floor height.
With round tubes you will also need to
ensure clamps are square. At this stage it is
easiest to eyeball and fine tune later.
For trouble shooting call:
Shanon - 027 727 1471
John - 021 295 5241
