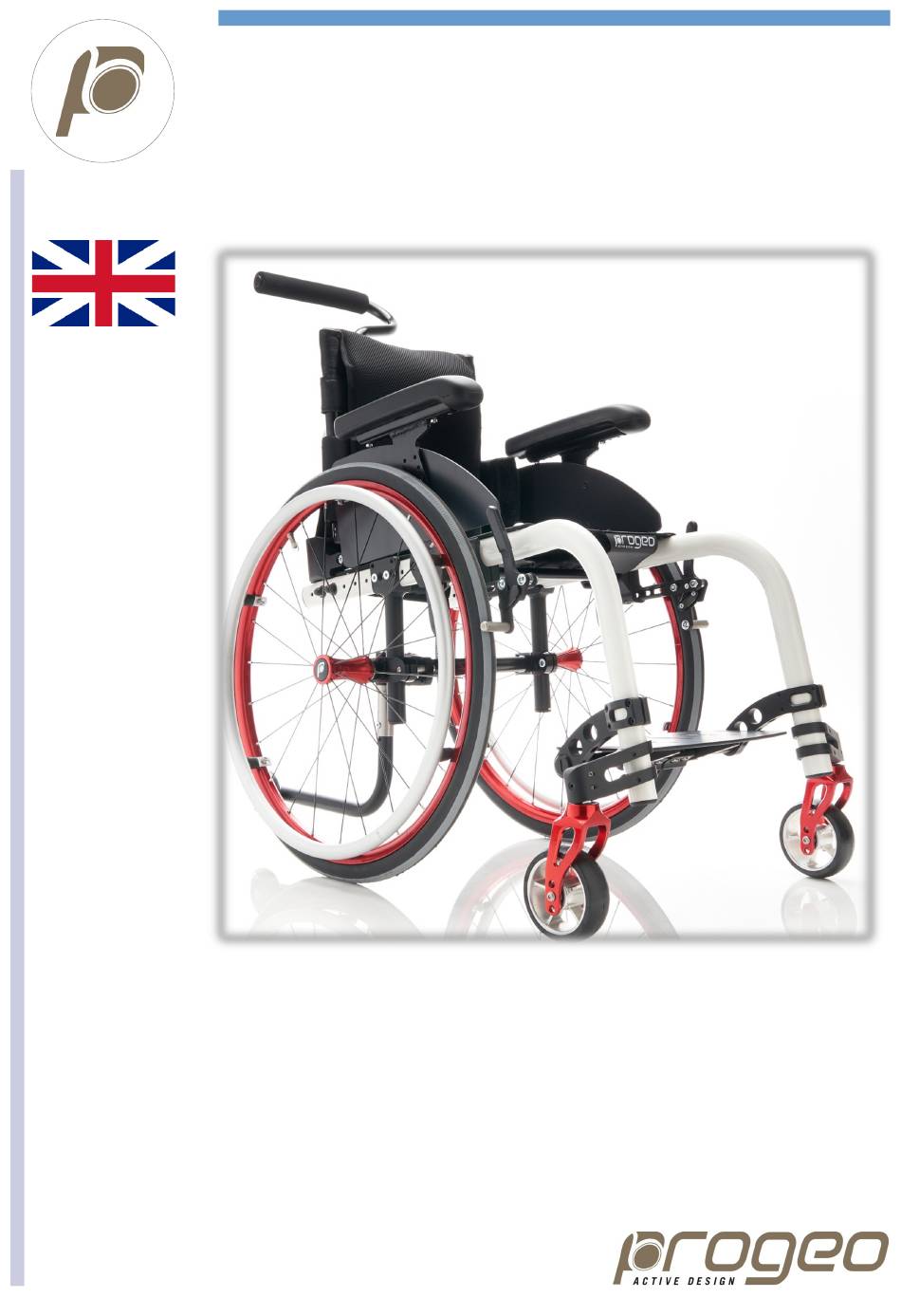

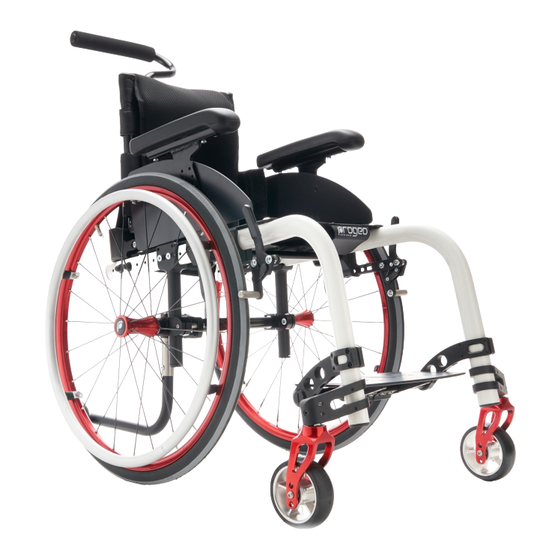

- Page 1 S E R V I C E M A N U A L JOKER JUNIOR 2.0 SERVICE MANUAL Rev. 0 - 06/05/2020 ENGLISH Service Manual JOKER JUNIOR 2.0 1 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 2 RehaTEAM® disclaims any responsibility for damage to the product or the peo- ple due to any modification that is not properly performed or that, in any case, does not guarantee safety to the user. Service Manual JOKER JUNIOR 2.0 2 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 3 SETTING (point of balance) CAMBER AND CONVERGENCY BRAKE BRAKE SPACING REMOVABLE SIDE GUARD REMOVABLE ARMREST FOOTPLATE SEAT DEPTH BACKREST HEIGHT BACKREST ANGLE QUICK RELEASE AXLE (rear wheel) Service Manual JOKER JUNIOR 2.0 3 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 4 Pay attention to the spacers between caster and fork. It is advisable to spread a drop of mild lock thread glue on the bolts V. Service Manual JOKER JUNIOR 2.0 4 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 5 Pay attention, though, to the footplate distance, see also adjustment sheet “footplate”. Remember that the front height adjustment can affect the seat inclination, so it is necessary to check and adjust the fork angle. Service Manual JOKER JUNIOR 2.0 5 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 6 Check the perpendicularity again and, if necessary, correct it. It is advisable to pread a drop of mild lock thread glue on all grab screws G. Service Manual JOKER JUNIOR 2.0 6 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 7 If the wheelchair TURN LEFTT, the cause is one or more of the following: The LEFT fork is tilted inwardly and/or backward The RIGHT fork is tilted outwardly and/or frontward Follows next page Service Manual JOKER JUNIOR 2.0 7 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 8 Until 2019 the axles had no inserts C0 or C1. There were 0°, 1°rh and 1°lh axles. To adjust the directionality, it is necessary to change the axle. SIDE VIEW Service Manual JOKER JUNIOR 2.0 8 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 9 Remember that the rear height adjustment can affect the seat inclination, thus, it is necessary to check and adjust the fork angle. It is advisable to spread a drop of mild lock thread glue on the on the grab screws B. Service Manual JOKER JUNIOR 2.0 9 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 10 Check and adjust the for angle. and the nut E that fix the backrest support. Adjust the brakes. Modify the mudguards. Service Manual JOKER JUNIOR 2.0 10 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 11 If the two measures are equal or the front one is slightly narrower (max. 5 mm), you have a good convergence as drawing 2 or 3. If different, you have to adjust the convergence. Follows next page Service Manual JOKER JUNIOR 2.0 11 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 12 Check the measure from a fix point of the frame to the centre of the tyre on each side. Should there be a difference greater than 2-3 mm, check the distance between clamp and axle as above mentioned. If necessary, correct the adjustment. Service Manual JOKER JUNIOR 2.0 12 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 13 H to a different position – see also adjustment sheet “removable sideguard” or “removable armrest” - or cut off a part of the brake rod. Service Manual JOKER JUNIOR 2.0 13 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 14 Start screwing the two bolts B all the way down and then the two nuts G. Should the brake movement be hard, slightly loosen the bolts B. Service Manual JOKER JUNIOR 2.0 14 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 15: Height Adjustment
WARNING: do not fix the support B without the spacers G: the system will results less stable. Follows next page At each adjustment, spread some mild Service Manual JOKER JUNIOR 2.0 15 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 16 Continue with instruction and, if necessary, instruction B, too At each adjustment, spread some mild lock thread glue on the bolts C and H. Service Manual JOKER JUNIOR 2.0 16 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 17 At each adjustment, spread some mild Follows next page lock thread glue on the bolts C and H. Service Manual JOKER JUNIOR 2.0 17 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 18 Mark and then drill the second hole on the side guard following the same instructions for the side guard modification. Repeat the same operation for the other armrest. At each adjustment, spread some mild lock thread glue on the bolts H and V. Service Manual JOKER JUNIOR 2.0 18 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 19 Carefully insert the bolt D and tighten it. Repeat the same operation for the other side. Threaded hole F D E Footplate with supports facing upward. Follows next page Service Manual JOKER JUNIOR 2.0 19 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 20 Now you can adjust the footplate distance following the instruction “HEIGHT ADJUSTMENT, 1) sliding the system” on the previous page. Montaggio con supporti orientati verso l’alto. Montaggio con supporti orientati verso il basso. Follows next page Service Manual JOKER JUNIOR 2.0 20 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 21: Angle Adjustment
Do not position the plate more backward than the provided foremost position: the points of the arms G will lean out of the plate. Note: between the foremost and the rearmost positions, there are 6 cm. Follows next page Service Manual JOKER JUNIOR 2.0 21 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 22 If you tighten the two bolts hard, the plate will results nearly fixed. After each adjustment, check that There is no interference between footplate and casters. Service Manual JOKER JUNIOR 2.0 22 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 23: Seat Depth
Picture 3 the supports have been moved back by another position (2.5 + 2.5 cm): the line of the backrest is 2.5 cm behind the rear side of the canvas. Service Manual JOKER JUNIOR 2.0 23 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 24: Backrest Height
To reduce possible play and possible noise, you can put some sticky tape around the inner tube at its bottom and at its fixing point (or just under it). Service Manual JOKER JUNIOR 2.0 24 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 25: Backrest Angle
In fact, with tilted backward backrest (open angle), the wheelchair becomes less stable. At each adjustment, it is advisable to spread a drop of mild lock thread glue on the bolts A. Service Manual JOKER JUNIOR 2.0 25 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... -
Page 26: Quick Release Axle
Check and if necessary do the same with another half turn. Do not unscrew the button too much: the pin will come off and, consequently, the balls will fall to the ground. Service Manual JOKER JUNIOR 2.0 26 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
