Summary of Contents for Atlas Copco PH 5 H

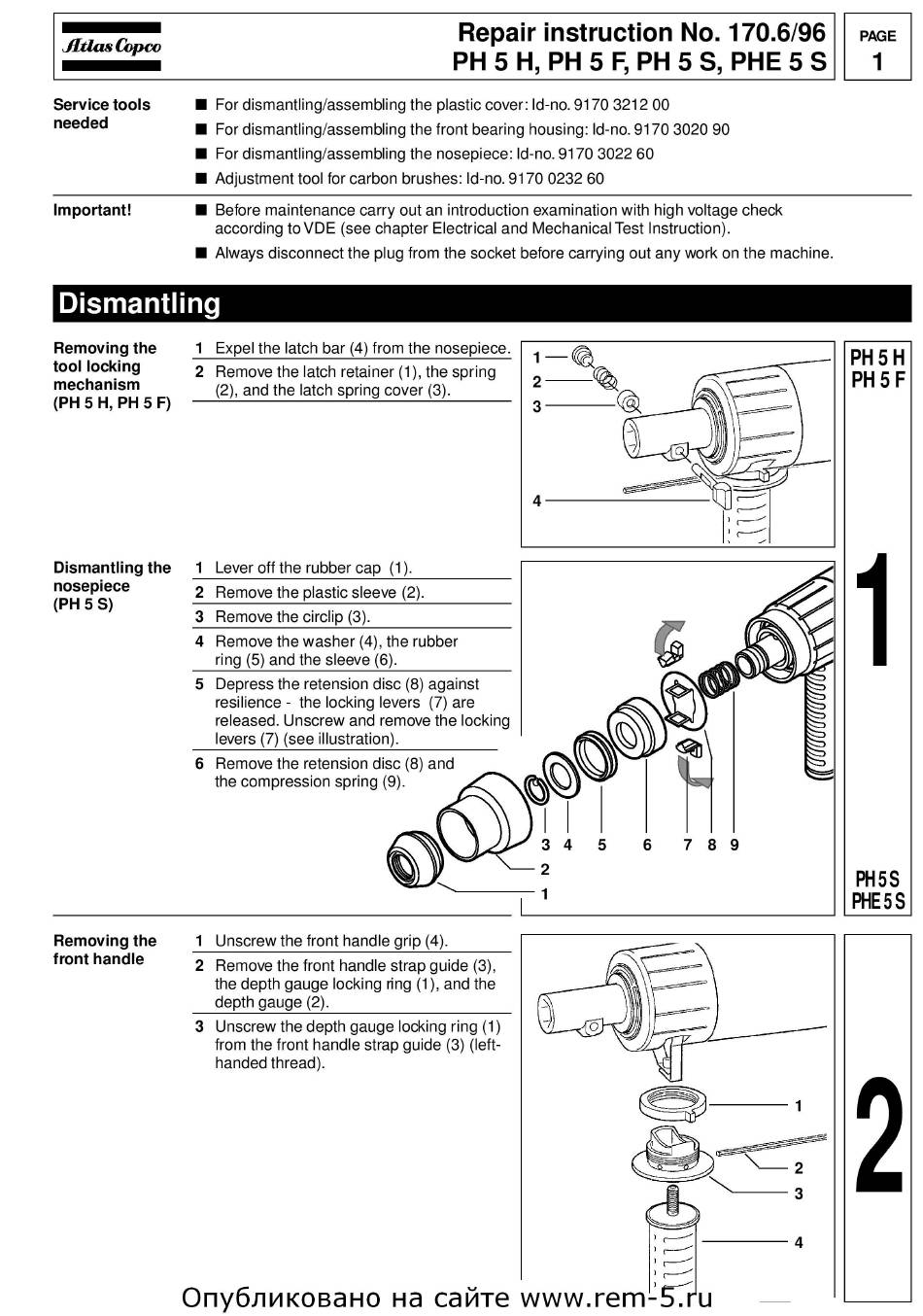

Page 2
(4) and the nosepiece retainer (3). Note The steps 4-7 describe the dismantling of machines with spline shaft reception (PH 5 H, PH 5 F). For dismantling machines with SDS-max reception (PH 5 S), please proceed with step 8. Dismantling the...
Page 3
Note The steps 8-11 describe the dismantling of machines with SDS-max reception (PH 5 S). For dismantling machines with pline shaft reception (PH 5 H, PH 5 F), please proceed with step 12. Dismantling the 1 Remove the complete barrel (7) from the...
Page 4
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Dismantling the 1 Fix the machine between cheeks in a vice. PH 5 S front bearing 2 Unscrew the front bearing housing (2) with...
Page 5
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Dismantling the 1 Unscrew the handle cover (6) and remove rear handle it from the motor housing. module 2 Unscrew and remove the cover plate (4).
Page 6
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Dismantling the 1 Remove the five screws (6). gearbox 2 Loosen the gearbox (5) by tapping the gear housing with a plastic hammer, and remove it.
Page 7
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Detaching the 1 Pull the piston (3) from the top housing. piston and the 2 Pull the striker (1) from the piston and connecting rod remove the striker seal (2) from the striker.
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Maintenance General It is recommended to submit the tool to maintenance after every 150 work hours, if the hammer mechanism gets weak, or if the carbon brushes switch off.“When carrying out maintenance all parts of the maintenance set 9170 3180 30 must be exchanged.
Page 9
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Assembly Note When assembling, secure all screwed connections in metal with screw locking device Assembling the 1 Press the crown wheel bearing (3) ino the...
Page 10
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Assembling the 1 Press the bearing (6) into the connecting piston and the rod (5). connecting rod 2 Fit the O-ring (2) to the striker (1) and push the striker into the piston (3).
Page 11
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S 1 Carefully insert the junk ring (1) into the Assembling the PH 5 S barrel (11) with aid of a mandril. barrel (PH 5 S) 2 Fit the anvil seals (2) to the anvil (3) and insert the anvil into the barrel.
Page 12
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Assembling the 1 Insert the junk ring (7) into the driver. PH 5 H barrel 2 Press the driver bearing (5) onto the driver...
Page 13
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Assembling the 1 Insert the O-ring (5) (only PH 5 H, PH 5 nosecone 2 Insert the nosepiece retainer (3) into the nosecone (2).
Page 14
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Refitting the 1 Fit the leads to the field (3). motor assembly 2 Insert the field (with the edges of the leads facing downward) into the motor housing (4) and pull the edges of the leads through the lower housing opening.
Page 15
Repair instruction No. 170.6/96 PAGE PH 5 H, PH 5 F, PH 5 S, PHE 5 S Fitting the switch 1 Insert the switch (2) into the rear handle front (1). 2 Fasten the leads to the switch (2). 3 Fasten the rear handle soft grip (4) with screws.
