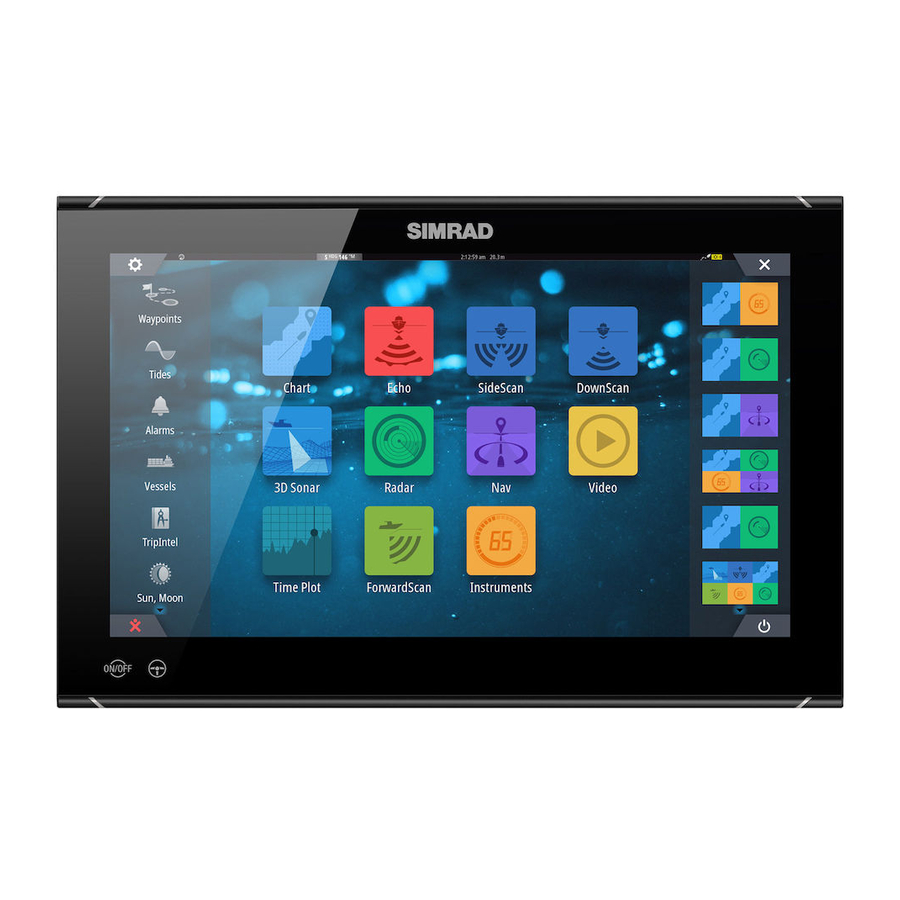

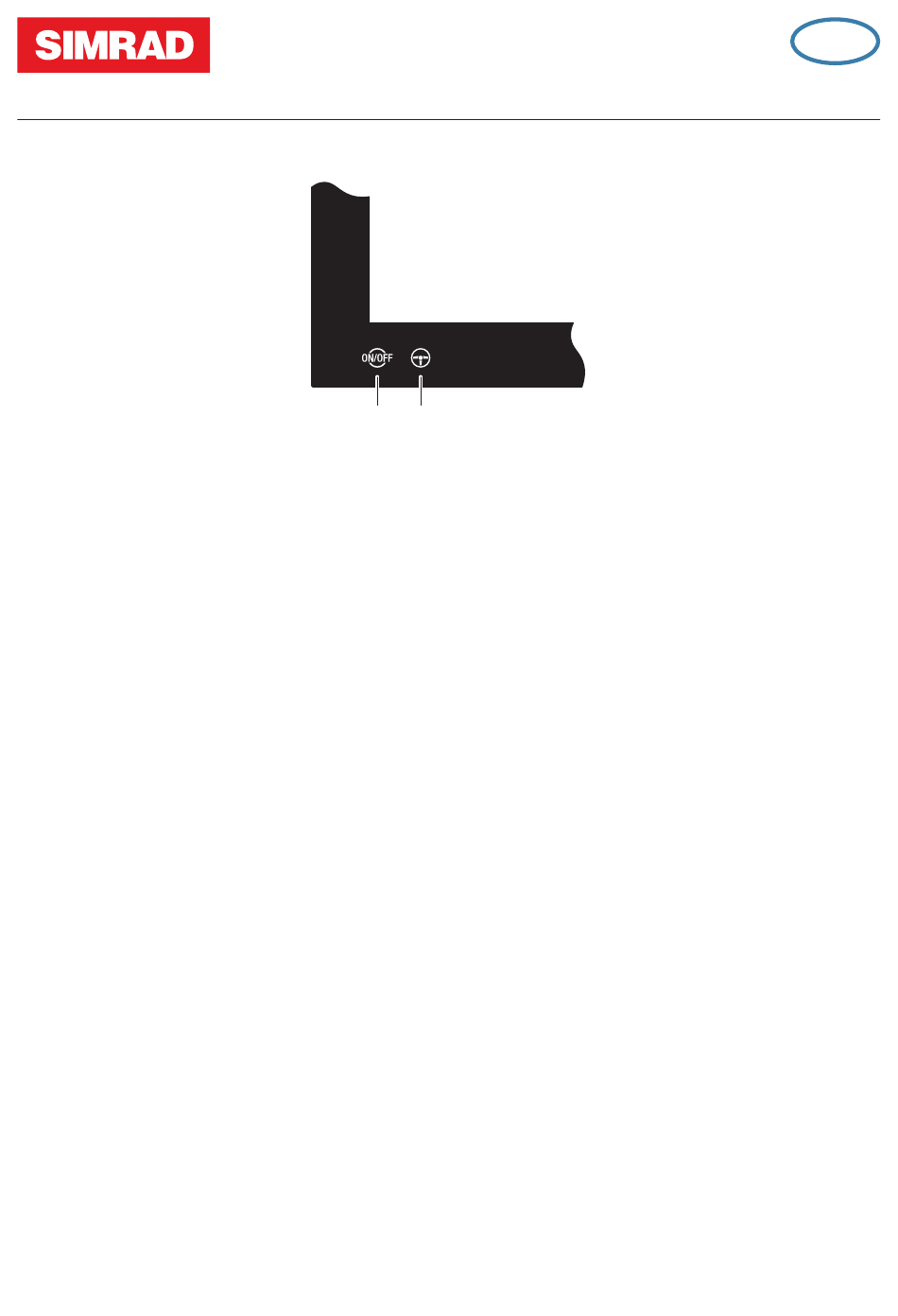

Front panel
A
Touch Screen
B
Power key
•
Press and hold: turns the unit ON/OFF
•
Short press once: displays the System Controls dialog
•
Repeat short presses: toggles through preset dimming levels
C
Wheel key - user configurable key. Refer to Operator manual.
Default without an autopilot connected to the system:
•
Short press: toggles between panels on split screen
•
Long press: maximizes active panel on split screen
Default with an autopilot connected to the system:
•
Short press: opens the autopilot controller and puts the autopilot in standby
mode
•
Long press: toggles between panels on split screen
01_EN_988-12476-001
NSO evo3S
Quick Guide
B
A
C
NSO evo3S |
EN
Quick Guide - EN
|
1
Advertisement
Table of Contents
Related Manuals for Simrad NSO evo3S
Summary of Contents for Simrad NSO evo3S
- Page 1 Long press: maximizes active panel on split screen Default with an autopilot connected to the system: • Short press: opens the autopilot controller and puts the autopilot in standby mode • Long press: toggles between panels on split screen NSO evo3S | Quick Guide - EN 01_EN_988-12476-001...
- Page 2 Activate the dialog by: • Pressing the Power key • Swiping from the top of the screen ¼ Note: The content of the System Controls dialog depends on connected equipment and active panel. NSO evo3S | Quick Guide - EN...
- Page 3 To create a waypoint: select the new waypoint option in the menu. ¼ Note: With cursor inactive, the waypoint is placed at vessel’s position. With cursor active, the waypoint is placed at selected cursor position. NSO evo3S | Quick Guide - EN...
- Page 4 Turn the radar transmitting ON/OFF from the menu. • Adjust radar range by using the zoom buttons on the radar panel. Product manuals For the full Operator manual, technical specifications and declarations, refer to the product website on: www.simrad-yachting.com NSO evo3S | Quick Guide - EN...
