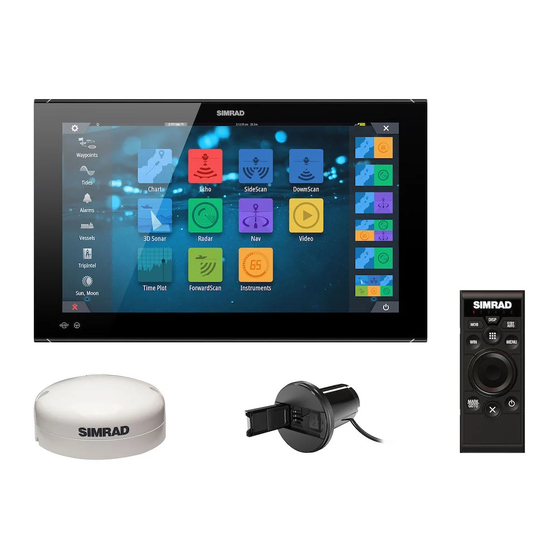

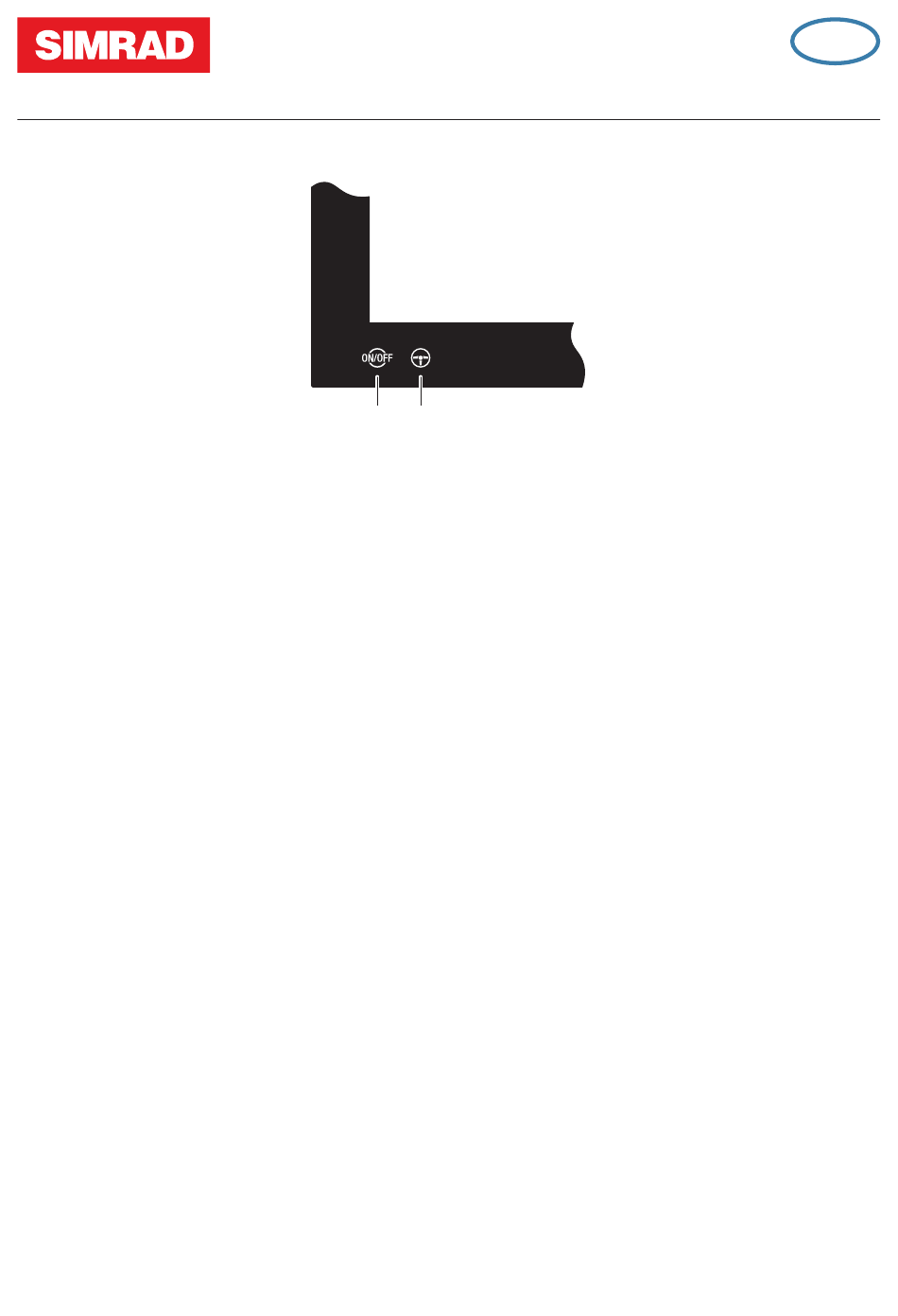

Front panel
A
Touch Screen
B
Power key
•
Press and hold: turns the unit ON/OFF
•
Short press once: displays the System Controls dialog
•
Repeat short presses: toggles through preset dimming levels
C
Wheel key - user configurable key. Refer to Operator manual.
Default without an autopilot connected to the system:
•
Short press: toggles between panels on split screen
•
Long press: maximizes active panel on split screen
Default with an autopilot connected to the system:
•
Short press: opens the autopilot controller and puts the autopilot in standby
mode
•
Long press: toggles between panels on split screen
01_EN_988-12476-001
NSO evo3S
Quick Guide
B
A
C
NSO evo3S |
EN
Quick Guide - EN
|
1
Advertisement
Table of Contents
Related Manuals for Simrad NSO24 evo3s
Summary of Contents for Simrad NSO24 evo3s
- Page 1 NSO evo3S Quick Guide Front panel Touch Screen Power key • Press and hold: turns the unit ON/OFF • Short press once: displays the System Controls dialog • Repeat short presses: toggles through preset dimming levels Wheel key - user configurable key. Refer to Operator manual. Default without an autopilot connected to the system: •...
- Page 2 Home page Application buttons Settings button Tools Favorites Close button Man Over Board (MOB) button Power button The MOB mark To create a MOB mark: press the MOB button. To stop displaying navigational information to the MOB waypoint: cancel the navigation from the menu.
- Page 3 Application pages Home/pages button Application panel Menu button Instrument bar Control bar Adjust panel size You can adjust the panel sizes in a split page. Tap the adjust split button in the System Controls dialog to show the resize icon Drag the resize icon to set preferred panel size Save the changes by tapping the screen Charts...
- Page 4 Echosounder • Zoom the image by using the zoom buttons. • View echosounder history by panning the image. • Adjust gain and color using the slide bar in the menu. • Toggle auto gain ON/OFF from the menu. Autopilot • Activate the autopilot controller from the Control bar.
