HermanMiller Renew Installation Manual

HermanMiller

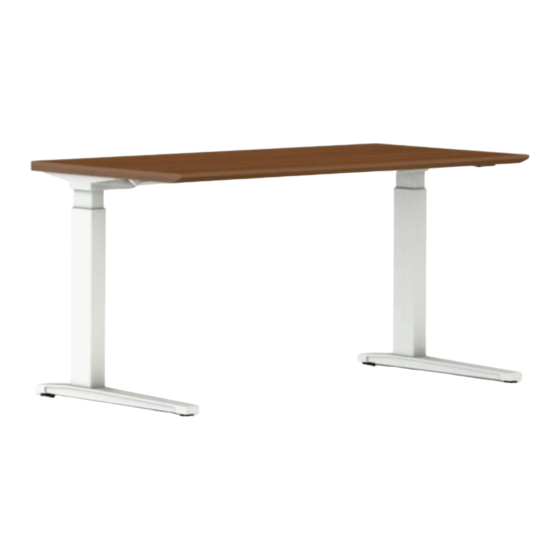

Renew Link Installation
™
Base product number (DU)
Y
How to assemble
your table
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue
products.
For more information about our products and services or to see a list of dealers,
For assistance: Please visit us at www.hermanmiller.com/product-instructions or call 888-443-4357
© 2015 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bfm1z - A.
Renew is among the trademarks of Herman Miller, Inc.
TM
Notice:
Some of the parts have been wrapped to protect them during shipping. Remove the plastic
wrap before assembling the table.
Assemble products on a protective surface.
Tools Required
Philips-Recess Bit
Power Driver Size: #2
Use extension bit if required, Magnetic bits are recommended.
Not all tools are used on all tables.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed, including
the following:
Read all instructions before using this furnishing.
DANGER
- To reduce the risk of electric shock always unplug this furnishing from the
electrical outlet before cleaning.
WARNING
- To reduce the risk of burns, fire, electric shock, or injury to persons:
Close supervision is necessary when this furnishing is used by, or near children, invalids, or
disabled persons.
Sitting or standing on product may cause risk of personal injury (use for chairs, tables
consider obvious misuse of product).
Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water. Return the furnishing to a service
center for examination and repair.
HermanMiller Renew Bench (Height Adjustable - Electrical)
TM
Hex/Allen
Square-Recess Bit
Wrench Size:
Size: #2
3mm, 6mm
and 8mm
SAVE THESE INSTRUCTIONS
Parts Included
A
Rectangular Work Surface
D
Screw
H
Electrical Bracket
K
Electrical Cover
N
Control Box
Q
Machine
Screw
Torx Bit
Size: T20 & T25
T
Lock Washer
Note: Not all the parts shown above are applicable for all the tables.
Failure to fully tighten screws (bolts) may cause injury by causing Renew tables to collapse.
Tighten screws (bolts) until they stop plus a quarter turn.
Periodically check to make sure legs are properly aligned. Failure to do so may cause risk of
personal injury.
If using power drive set on low torque.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
This furnishing is intended for commercial use
control box rating: 4.8A, 120V
Max FPDU rating: 15A, 120V
Duty cycle: 1min on, 18min off
1
C
Wire Trough
E
Peg
Foot
F
Leg
I
Support Rail
L
Electrical Cross Bar
O
Velcro
M
Hardware Kit
U
Glide
R
Tapping Hex S
Tapping Screw
Head Screw
W X
V
Tapping Screw
Socket
B
Cross Brace
J
Duplex
G
C Leg Foot
P
Switch
G
Wire Cover
Y
Button Head
Fastener
Screw
Part no. 1bfm1z rev A.
Assembly Instructions
