HermanMiller Renew Link Installation Manual

HermanMiller
Renew Link Installation
™
Base product number (DU)
Y
How to assemble
your table
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue
products.
For more information about our products and services or to see a list of dealers,
For assistance: Please visit us at www.hermanmiller.com/product-instructions or call 888-443-4357
© 2015 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bfnlt - A.
Renew is among the trademarks of Herman Miller, Inc.
TM
Notice:
Some of the parts have been wrapped to protect them during shipping. Remove the plastic
wrap before assembling the table.
Assemble products on a protective surface.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical furnishing, basic precautions should always be followed,
including the following:
Read all instructions before using this furnishing.
DANGER
- To reduce the risk of electric shock always unplug this furnishing from the
electrical outlet before cleaning.
WARNING
- To reduce the risk of burns, fire, electric shock, or injury to persons:
Close supervision is necessary when this furnishing is used by, or near children,
invalids, or disabled persons.
Sitting or standing on product may cause risk of personal injury (use for chairs, tables
consider obvious misuse of product).
Use this furnishing only for its intended use as described in these instructions. Do not
use attachments not recommended by the manufacturer.
Never operate this furnishing if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
furnishing to a service center for examination and repair.
HermanMiller Renew Bench (Height Adjustable - Electrical)
TM
SAVE THESE INSTRUCTIONS
Parts Included
A

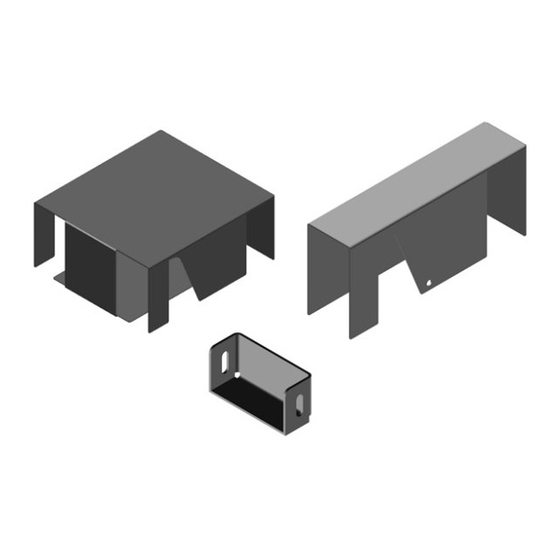

Connector Bracket
D
L - Bracket

Tools Required

Power Driver Philips-Recess Bit
Size: #2
Use extension bit if required, Magnetic bits are recommended.
Not all tools are used on all tables.
Note: Not all the parts shown above are applicable for all the tables.
Failure to fully tighten screws (bolts) may cause injury by causing Renew tables to
collapse. Tighten screws (bolts) until they stop plus a quarter turn.
Periodically check to make sure legs are properly aligned. Failure to do so may
cause risk of personal injury.
If using power drive set on low torque.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is
being
administered.
This furnishing is intended for commercial use
control box rating: 4.8A, 120V
Max FPDU rating: 15A, 120V
Duty cycle: 1min on, 18min off
1
B C
End Cap
E
Hex Bolt
1/2" Socket Wrench
Part no. 1bfnlt rev A.
Assembly Instructions
Tapping Hex
Head Screw
