HermanMiller Renew DU6ACG Quick Start Manual

HermanMiller
Renew Rectangular Counterbalance
™
Table
Base product number (DU6ACG)
Y
How to assemble
your table
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue
products.
For more information about our products and services or to see a list of dealers,
For assistance: Please visit us at www.hermanmiller.com/product-instructions or call 888-443-4357
© 2015 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bcx7c - F.
TM Renew is among the trademarks of Herman Miller, Inc.
Notice:
Some of the parts have been wrapped to protect them during shipping. Only remove the
foam sheeting and net sleeves when directed in these instructions.
Assemble products on a protective surface.
Tools Required
Power Driver
Allen Wrench
Size #6, #8
Use extension bit if required, Magnetic bits are recommended.
Use lowest torque setting.
WARNING
The adjustable height legs in this package are shipped
in their compressed position. Sudden release and
extension of the legs may result in serious injury.
Read and follow all instructions prior to unpacking
and during assembly.
Read these assembly instructions before starting to assemble
this table, and follow them in order.
Failure to sequentially follow these instructions can pose a
safety risk to you and/or nearby persons. The telescoping
legs are shipped in their compressed position and are under
tension. Do not remove the safety retaining pin from the leg
until after the table is placed in its upright position on its feet.
1. Failure to fully tighten screws may cause injury due to table collapse. Tighten screws until
they stop, plus a quarter turn.
2. Sitting or standing on this table may cause personal injury and constitutes a misuse of this
product.
3. Use this table only for its intended use as described in these instructions. Do not use
attachments not recommended by Herman Miller, Inc.
4. Never operate this table if it has a damaged cable, or appears to be malfunctioning or
damaged. Contact a servicing dealer for assistance and/or repair.
HermanMiller Renew Rectangular Counterbalance Table
TM
Philips-Recess Bit Square-Recess Bit
Size #2 Size #2

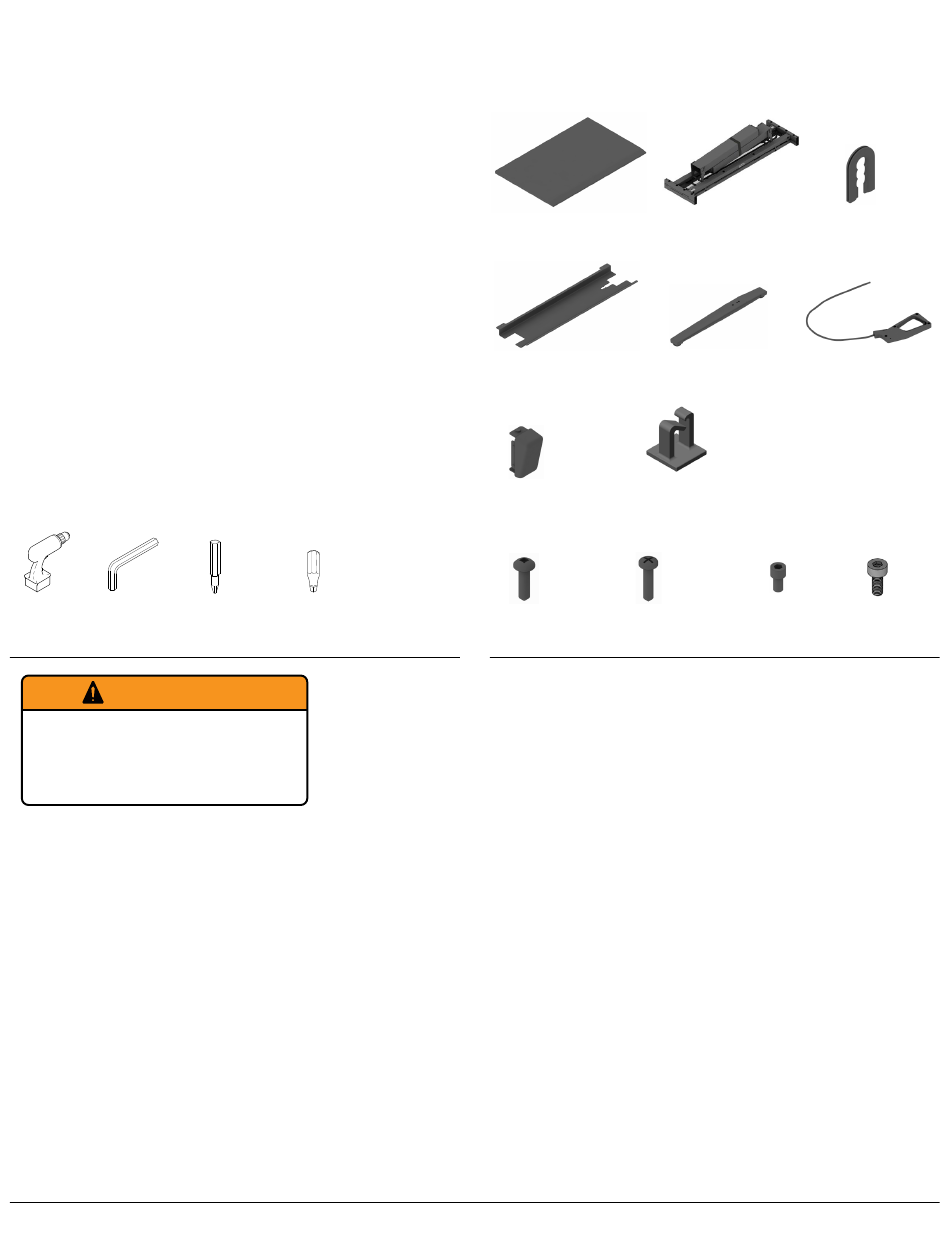

Parts Included
A
Rectangular Work Surface(Qty 1)
E
Cover(Qty 1)
H
K
End Cap(Qty 4) Adhesive backed cable holder(Qty 2)
I
J
Pan Head Square
Pan Head Screw (Qty 4)
Screw (Qty 18)
(Size: #8)
(Size: #10)
5. Periodically check to make sure legs are properly aligned. Failure to do so may cause risk
of personal injury.
6. Set power driver to lower torque setting.
7. Never drop or insert any object into any opening.
8. Do not use outdoors.
1
B
C
Base(Qty 1)
F G
Height Adjustment
C Leg Foot(Qty 2)
Lever(Qty 1)
L
D
Socket(Qty 4)
head screw
(Size: M10)
Part no. 1bcx7c rev F.
Grommet(Qty 1)
Cap Screw
Part of base(Qty 4)
(Size: M8)
