CHAPTER 1. GENERAL DESCRIPTION
CONTENTS
1. Development Background
1-1 Development Objectives --------------------------------------------------------------------------------------------------- 1-1
1-2 Product Concept ------------------------------------------------------------------------------------------------------------- 1-1
1-3 Design Concepts ------------------------------------------------------------------------------------------------------------- 1-4
2. Features
2-1 High Image Quality --------------------------------------------------------------------------------------------------------- 1-6
2-2 Full Features ----------------------------------------------------------------------------------------------------------------- 1-8
2-3 Operation Ease --------------------------------------------------------------------------------------------------------------1-12
2-4 System Accessories --------------------------------------------------------------------------------------------------------1-12
2-5 Application Software ------------------------------------------------------------------------------------------------------1-13
3. Exterior
3-1 Exterior Photos ------------------------------------------------------------------------------------------------------------ 1-16
3-2 6-dimensional diagram --------------------------------------------------------------------------------------------------- 1-17
3-3 Nomenclature ---------------------------------------------------------------------------------------------------------------1-18
3-4 UI display -------------------------------------------------------------------------------------------------------------------1-19
4. Specifications
4-1 Camera Specifications -----------------------------------------------------------------------------------------------------1-23
4-2 System Requirement -------------------------------------------------------------------------------------------------------1-29
4-3 Accessory Specification ---------------------------------------------------------------------------------------------------1-30
5. System
5-1 Accessories compatibility -------------------------------------------------------------------------------------------------1-31
5-2 System Diagram ------------------------------------------------------------------------------------------------------------1-33
OF PRODUCT

Advertisement

Table of Contents
loading

Related Manuals for Canon PowerShot G2

Summary of Contents for Canon PowerShot G2

  • Page 1 CHAPTER 1. GENERAL DESCRIPTION OF PRODUCT CONTENTS 1. Development Background 1-1 Development Objectives --------------------------------------------------------------------------------------------------- 1-1 1-2 Product Concept ------------------------------------------------------------------------------------------------------------- 1-1 1-3 Design Concepts ------------------------------------------------------------------------------------------------------------- 1-4 2. Features 2-1 High Image Quality --------------------------------------------------------------------------------------------------------- 1-6 2-2 Full Features ----------------------------------------------------------------------------------------------------------------- 1-8 2-3 Operation Ease --------------------------------------------------------------------------------------------------------------1-12 2-4 System Accessories --------------------------------------------------------------------------------------------------------1-12 2-5 Application Software ------------------------------------------------------------------------------------------------------1-13 3.
  • Page 2 1-2 Product Concept By equipping the PowerShot G2 with a 4 million pixel CCD (the most pixels in any compact digital camera in the year 2001), using primary color filters and functionally enhancing, the PowerShot G2 will be at the top of its class in terms of image quality and functionality.
  • Page 3 N - Histogram display of playback image N - Enlarged playback (approximately 3x/6x) - Remote operation by wireless controller N : Indicates a feature that is new in the PowerShot G2, or has been improved since the PowerShot G1 .
  • Page 4 N - USB Mounter 1.0 (Macintosh) that allows the system to handle the camera as a card reader - Proven third-party software Adobe Photoshop LE (for processing/editing images) Apple QuickTime 5.0 (for creating movies/QVTR files) N : Indicates a feature that is new in the PowerShot G2, or has been improved since the PowerShot G1 .
  • Page 5 1-3 Design Concepts l Two styling images: “cold” and “flexible” The front of the camera presents a large curved surface under tension, with metallic machined parts used in the front edge of the lens cylinder to present an impression of excellent image quality. The overall effect creates a “cold”...
  • Page 6 Main specifications’ comparison of PowerShot G2 and PowerShot G1 PowerShot G2 PowerShot G1 Image sensor 3.34M pixels (total) 1/1.8" CCD 3.95M pixels (effective) 1/1.8" CCD (total : 4.13M pixels) Color filter Primary (Bayer) comprementary Lens (35mm film equivalent) 34 - 102mm (34 - 102mm) f/2.0 - 2.5 ×...
  • Page 7 3.125[micron]m. Table 2-1* shows the calculated resolution for each print size, given that the PowerShot G2 will use 2272 x 1704 recording pixels in large mode. As a result, postcard size will, as an example, produce a print with a resolution of 6.3 lp/mm, which is close to the limits of visual acuity in humans.
  • Page 8 High-precision white balance with six preset positions and manual white balance In the PowerShot G2, the screen is divided into tens of thousands of blocks. White balance data is gathered from each of the blocks, then white balance adjustment is performed on each block, allowing for extremely precise control.
  • Page 9 QVGA or Q VGA) The PowerShot G2 is capable of shooting 15 frames of an image per second as a movie, with audio. The number of pixels recorded in each frame depends on the format: QVGA (320 x 240) and Q VGA (160 x 120).
  • Page 10 AE lock/FE lock (The combination of shutter speed and numeric aperture can be changed after AE is locked.) The PowerShot G2 permits AE lock/FE lock in the same manner as in the PowerShot G1. Furthermore, in the program, shutter speed-priority, and aperture-priority modes, once AE has been locked, the combination of shutter speed and numeric aperture can be changed while retaining the same EV value*.
  • Page 11 Four settings for the number of recording pixels Since the number of CCD pixels has been increased to 3.95 million effective pixels with the PowerShot G2, there are now four possible settings for the number of recording pixels: Large, Middle 1, Middle 2, and Small.
  • Page 12 Direct print function when connected to a dedicated printer (the CP-10 card photo printer) The PowerShot G2 includes a direct print mode that makes it possible to easily produce high-quality prints simply by connecting the PhotoShot G2 to Canon’s CP-10 card photo printer via a special cable.
  • Page 13 Because the body of the PowerShot G2 includes a molded grip of an appropriate size, the feel of the grip of the camera while shooting pictures has been improved. Furthermore, the strap is now connected to the camera on both sides, not just on one side as with the PowerShot G1.
  • Page 14 Previously, the RAW Image Converter was installed along with the USB TWAIN driver. Starting with “Canon Digital Camera Solution Disk 6.0” (the version that will be bundled with the PowerShot G2), the RAW Image Converter will now be handled as a separate item.
  • Page 15 Fig. 2-7 shows all of the application software that is bundled with the PowerShot G2. Tables 2- 7 and 2-8 list the contents of each CD-ROM. Fig. 2-7 Structure of application softwares Windows Macintosh Image capture/management/print ZoomBrowser EX 2.8 Image Browser 1.8 Layout &...
  • Page 16 Reference n Partial change to the content of the “Guidelines for Descriptions for Digital Cameras in Catalogs, Etc.” Recently, some revisions were made to the “Guidelines for Descriptions for Digital Cameras in Catalogs, Etc.” published by the Digital Camera Committee of the Japan Camera Industry Association. These revisions are described below.

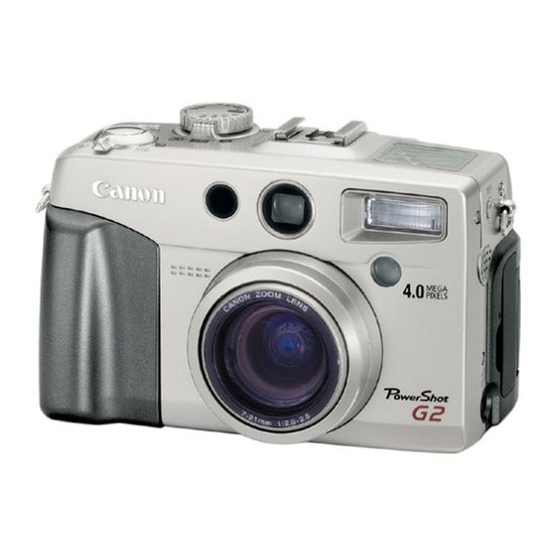

  • Page 17 3 Exterior 3-1 Exterior Photos Camera Photo 3-1 PowerShot G2 front Photo 3-2 PowerShot G2 back Photo 3-3 PowerShot G2 top Photo 3-4 PowerShot G2 side Accessories (Adition to PowerShot G1) Photo 3-5 BP-512 Photo 3-7 Macro-ring light(MR-14EX) Photo 3-6 Adapter for Macro-ring light(58C)
  • Page 18 3-2 6-dimensional diagram 63.8 (2.51) 118.7 (4.67) 51.7 (2.04) 120.9 (4.76) Unit : mm (inch) 1-17...
  • Page 19 3-3 Nomenclature Main Dial Hot shoe Mode Dial Continuous/Self-timer/ Wireless Controller Button Display Panel Shutter Button Ring Zoom Lever (Shooting : (Tele)/(Wide)) (Playback : (Magnification)/(Reduction) of image) Remote Sensor Optical Viewfinder Window MF(Manual Focus)Button Strap Holder Built -in Flash Strap Holder Speaker Microphone...
  • Page 20 3-4 UI display n Information during display Shooting mode Spot metering frame Flash (Red-eye reduction auto/Auto Red-eye reduction on/On/Off) Single shooting/Continuous shooting Spot metering shooting AF frame Number of recording pixels/ Compression level R e m a i n i n g i m a g e c a p a c i t y / Remaining passing time of movie MF Indicator Shutter speed...
  • Page 21 n Setting Exposure compensation/White balance/AEB/Flash < White Balance > < AEB > < Exposure Compensation > Exposure/ Exposure/ WB/AEB/ WB/AEB/ Exposure/ Flash exposure Flash exposure WB/AEB/ Button Button Flash exposure Button < Flash > Exposure/WB/AEB/Flash exposure Button Exposure/WB/AEB/ Flash exposure Button l All of settings set up SET Button Prepares the camera for shooting...
  • Page 22 Setting Exposure compensation/White balance/AEB/Flash < ISO equivalent speed > < Contrast > < Sharpness > < Color saturation > Prepares the camera MENU MENU for shooting Button Button Button button Button Button Button Button Button Can set to only P, Tv, Av and M mode. However, in case of setting to M mode can not set to AUTO mode with ISO equivalent speed. These settings do not be cancelled with power off.
  • Page 23 Display of rotation Prepares the camera MENU MENU MENU SET Button for shooting Button Button Button + SET Button Direct printing The following applies when the camera is set to the replay mode and connect to the CP-10 Card Photo Printer. <...
  • Page 24 4 Specifications 4-1 Camera Specifications <CCD> -Reading format Interline -Chip size 8.10 (H) X 6.64 (V) mm (0.32 X 0.26 in.) equivalent to 1/1.8-inch size -Effective pixels Approx. 4M-pixels (2.308 X 1,712) -Total pixels Approx. 4.1M-pixels (2.384 X 1,734) -Filter array Primary color filter (Beyer) <Lens>...
  • Page 25 -Flash exposure compensation +/- 2.0EV (at every 1/3-stop) <Flash (External)> -Flash contacts Sync-terminals at accessory shoe -Compatibility Canon SPEEDLITE 220EX, (380EX), 420EX, 550EX, Macro-Ring-Light (MR-14EX) -Flash exposure compensation +/- 2.0EV (at every 1/3-stop) FE Lock is available. <Shooting specifications> -Shooting modes...
  • Page 26 FC-128M 502 sec. 1834 sec. *Any documents to be distributed outside the company should state that Above-written figures are measured under Canon’s standard conditions and may vary depending on the scene, subjects or cam- era settings. -Tone reproduction RAW : 10 bits (linear)
  • Page 27 4-time shootings. Turn camera off and on at every 8-time shootings. -Playback time BP-511 / BP-512: Approx. 300 min. * Canon’s standard conditions of measuring playback time are as follows: Normal temperature (23 Celsius degrees). Repeat playback automatically at a speed of 1 image per 5 seconds.
  • Page 28 n Parameter availability by modes Image Creative Auto Pan-focus Portrait Landscape N-scene C-effect Stittch Movie Program Shutter Aperture Manual Auto Red-eye reduction auto Red-eye reduction ON Flash External Macro shooting Single Shooting Continuous Self-timer Exposure compensation White balance Flash exposure compensation AF frame selection (3 points) AE lock/EF lock shooting Metering method...
  • Page 29 Playback Compatibility Playback Cameras PS G1 D IXUS v/300 PS 350 PS A5/A5 Z PS A50 PS S10/S20 PS A10/A20 PS G2 Pro70 DIGITAL PS Pro90 PS S100/300 Shooting PS 350 CIFF Cameras PS A5/A5 Z CIFF PS Pro70 CIFF PS A50 CIFF PS S10/S20...
  • Page 30 4-2 System Requirement Windows Macintosh - Windows 98 (include S) - Mac OS from 8.6 to 9.1 - Windows 2000 * unavailable of Mac OS X - Windows Me * unavailable of Windows XP Pentium 150MHz and over Power PC Memory (RAM) - 32MB and over (Win98) 20MB and over for application...
  • Page 31 4-3 Accessory Specification n Battery Pack BP-512 (Applied to Camcorder of FV2/FV10/FV20/FV100) - Type : Lithium-ion secondary battery - Nominal Voltage : DC 7.4V - Nominal Capacity : Approx.1,100 mAh - Operating Temperature : 0 - 40C (32 - 104F) - Operating Humidity : 65% or less RH - Dimensions (WXHXD) : Approx.38 X 55 X 21 mm...
  • Page 32 5 System 5-1 Accessories compatibility D IXUS v PS D IXUS 300 PS A20 D IXUS PS Pro PS S10 PS A5 Z PS G2 PS G1 PS Pro70 PS A5 S110 PS S300 PS A10 PS S100 90 IS PS S20 PS A50 <...
  • Page 33 < Speed-light > 220EX 380EX 550EX 420EX (MR-14EX) < Remote switch > WL-DC100 RS-8N3 < Cable/Others > VC-100 VC-200 AVC-DC100 AVC-DC200 IFC-100PCS IFC-100MC IFC-200PCS IFC-200PCU IFC-200MC IFC-300PCU AD-PC98 *PS A20 only < Case > SC-PS100 SC-PS300 SC-PS400 SC-PS500 SC-PS600 SHC-PS200 SHC-PS300 <...
  • Page 34 5-2 System Diagram • Tele Converter TC-DC58 SPEED LIGHT EX Direct Printer • Wide Converter WC-DC58 220EX • Direct I/F C able (G1 compatible) 380EX • ......DIF- 200 420EX •...

  • Page 35: Table Of Contents

    CHAPTER 2. TECHNICAL DESCRIPTION CONTENTS 1. Functions of each unit 1.1 MAIN PCB ASS’Y --------------------------------------------------------------------------------------------------------- 2-1 1.2 DC/DC CONVERTER PCB ASS’Y ------------------------------------------------------------------------------------- 2-1 1.3 LCD PCB ASS’Y ----------------------------------------------------------------------------------------------------------- 2-1 1.4 TOP MODULE UNIT ------------------------------------------------------------------------------------------------------ 2-1 1.5 BUTTON PCB ASS’Y ----------------------------------------------------------------------------------------------------- 2-1 1.6 FLASH UNIT ---------------------------------------------------------------------------------------------------------------- 2-1 2.

  • Page 36: Functions Of Each Unit

    CHAPTER 2. TECHNICAL DESCRIPTION 1. Functions of each unit 1.1 MAIN PCB ASS’Y 1) Driving the CCD Sensor. 2) Conversion of the image signal from the analog signal to the digital signal. 3) Controlling the power supply and the system by CPU. (Refer to Sections 2.1 and 2.2.) 4) Image processing, and reading and writing the image signal to and from the CF card using DSP.

  • Page 37: Outline Of Circuits

    CHAPTER 2. TECHNICAL DESCRIPTION 2. Outline of Circuits 2.1 Power Supply Control The power supply is controlled by the CPU and DSP mounted on the MAIN PCB ASS’Y. 2.1.1 Power Supply Block Diagram MAIN PCB ASS'Y DC/DC CONVERTER PCB ASS'Y E0 CONTROL E2,E3,E5 CONTROL...

  • Page 38: Signal Processing

    CHAPTER 2. TECHNICAL DESCRIPTION 2.2 Signal Processing MAIN PCB ASS'Y SDRAM CF card HD, VD Drive Pulse Driver LENS CDS, A/D Sensor Motor Driver Video AV OUT AF Support LED FLASH MEMORY FINDER LED Audio SPEAKER MIC Amp BUZZER Electric FLASH DIAL Fig.

  • Page 39: Picture Processing

    CHAPTER 2. TECHNICAL DESCRIPTION 2.2.2 Picture Processing 1) The drive pulse of the CCD sensor is created by both clock from DSP and TG that is operated by sync. signal. The picture signal by the drive pulse is output from CCD sensor. The output signal of the CCD picture is converted to the signal processing and the digital data by the CDS and A/D converter, and is sent to the DSP.

  • Page 40: Troubleshooting

    CHAPTER 2. TECHNICAL DESCRIPTION 3. Troubleshooting 3.1 When an Error Code is Displayed [Remedy] • Check for any abnormalities in the mounting of probable faulty parts or connector connections referring to the table below. • Try replacing probable faulty parts referring to the table below. [NOTE] •...
  • Page 41 CHAPTER 2. TECHNICAL DESCRIPTION Error Code Name Occurrence Conditions Cause and Probable Faulty Part CF NO SPACE When the CF becomes full during writing MAIN PCB ASS’Y of photographed images to CF, writing is repeatedly performed with the JPEG com- pression ratio successively increased to re- duce the size of the image file until it can be successfully written to CF.

  • Page 42: When A Problem Occurs

    CHAPTER 2. TECHNICAL DESCRIPTION 3.2 When a Problem Occurs [Remedy] • Check for any abnormalities in the mounting of probable faulty parts or connector connections referring to the table below. • Try replacing probable faulty parts referring to the table below. [NOTE] •...
  • Page 43 CHAPTER 2. TECHNICAL DESCRIPTION Problem (when an error code is not displayed) Cause and Probable Faulty Part The External Flash does not fire. TOP MODULE UNIT ACC. SHOE FPC ACC. CONTACT UNIT ACC. SHOE PIN ACC. DETECT PLATE Video output is strange. JACK PCB ASS’Y VID FPC DC/DC CONVERTER PCB ASS’Y...
  • Page 44 CHAPTER 3. REPAIR INSTRUCTION CONTENTS 1. Before Starting the Repair Work 1.1 Precaution on Flash High Tension Circuit ------------------------------------------------------------------------------- 3-1 1.2 List of Tools ----------------------------------------------------------------------------------------------------------------- 3-1 1.3 List of Supplies -------------------------------------------------------------------------------------------------------------- 3-1 1.4 Flexible Connectors --------------------------------------------------------------------------------------------------------- 3-2 2. Disassembly/Assembly 2.1 Procedure --------------------------------------------------------------------------------------------------------------------- 3-3 2.2 Removal of Main Parts/Units ---------------------------------------------------------------------------------------------- 3-4 2.2.1 FRONT COVER UNIT ------------------------------------------------------------------------------------------- 3-4...
  • Page 45 3. Adjustments 3.1 Replacement Parts and Adjustment Items ----------------------------------------------------------------------------- 3-43 3.2 Adjustment Tools ----------------------------------------------------------------------------------------------------------3-44 3.3 Before Starting Electrical Adjustments ---------------------------------------------------------------------------------3-45 3.3.1 TWAIN Driver Installation --------------------------------------------------------------------------------------3-45 3.3.2 Installing the Adjustment Software --------------------------------------------------------------------------- 3-45 3.3.3 Preparation -------------------------------------------------------------------------------------------------------- 3-47 3.3.4 Starting up the Adjustment Software ---------------------------------------------------------------------------3-48 3.3.5 Menu Window -----------------------------------------------------------------------------------------------------3-48 3.3.6...

  • Page 46: Before Starting The Repair Work

    CHAPTER 3. REPAIR INSTRUCTION 1. Before Starting the Repair Work Be sure to read the following precaution before starting the repair work. 1.1 Precaution on Flash High Tension Circuit • When the FRONT COVER UNIT is removed, be sure to discharge the main capacitor. (Discharging resistor: 1 kΩ, approx.

  • Page 47: Flexible Connectors

    CHAPTER 3. REPAIR INSTRUCTION 1.4 Flexible Connectors This product uses the four types of the flexible connectors. 1 Type A The contact-piece should face frontwards Unconnected state Connected state 2 Type B The contact-piece LOCK should face UNLOCK downwards Unlocked state Locked state 3 Type C UNLOCK...

  • Page 48: Disassembly/Assembly

    CHAPTER 3. REPAIR INSTRUCTION 2. Disassembly/Assembly 2.1 Procedure Disassembling procedure of PowerShot G2 is shown by the following flowchart. Reverse the disassembling procedure to reassemble them. ∗ The pages to refer are shown in parenthesis ( ). START FRONT COVER...

  • Page 49: Removal Of Main Parts/Units

    CHAPTER 3. REPAIR INSTRUCTION 2.2 Removal of Main Parts/Units Remove the two dowels with the front side CAUTION: High Tension ! (FRONT COVER UNIT) raised up and by Never touch the terminals of the capacitor ! applying the downward force to the rear of Be sure to discharge the capacitor with the the main unit.

  • Page 50: Grip Cover

    CHAPTER 3. REPAIR INSTRUCTION GRIP COVER (1)-2 (1)-1 (1)-1 (1)-1 Dowels Fig. 3-5 GRIP COVER 2.2.2 GRIP COVER (1) GRIP COVER 1. Remove the four screws. 2. Remove the two dowels and remove the GRIP COVER.

  • Page 51: Rear Cover Unit

    CHAPTER 3. REPAIR INSTRUCTION (1)-2 (1)-1 STRAP RING UNIT (1)-1 LCD PANEL CF COVER (1)-5 (1)-3 (1)-6 Be careful not to drop. (1)-7 SELECTOR SPRING (1)-4 (1)-4 REAR COVER UNIT (1)-10 (1)-4 LCD LOCK (1)-9 SPRING (1)-8 LCD LOCK SLIDER (1)-11 LCD LOCK STOPPER BODY NUMBER PLATE...

  • Page 52: Cf Cover

    CHAPTER 3. REPAIR INSTRUCTION (1)-2 CF CLICKING SPRING1 CF COVER (1)-1 (1)-5 (1)-3 (1)-4 CF CLICKING SPRING2 Fig. 3-7 CF COVER 2.2.4 CF COVER (1) CF COVER 1. Remove the screw. 2. Remove the CF CLICKING SPRING1. 3. Remove the screw. 4.

  • Page 53: Side Cover, Jack Cover

    CHAPTER 3. REPAIR INSTRUCTION Cut off (1)-4 (1)-4 (1)-1 (1)-5 (1)-3 SIDE COVER (1)-5 (1)-2 JACK COVER JACK COVER SIDE COVER Precaution when installing the JACK COVER When installing the JACK COVER to the SIDE COVER, cut off the top of the JACK COVER mounting block as shown in the illustration.

  • Page 54: Top Unit

    CHAPTER 3. REPAIR INSTRUCTION (1)-2 (1)-1 TOP UNIT (1)-3 (1)-4 Fig. 3-9 TOP UNIT 2.2.6 TOP UNIT (1) TOP UNIT 1. Remove one of the flexible cables. 2. Remove the flexible cable by applying force in the direction of the arrow. CAUTION There is a danger of damaging the connector.

  • Page 55: Lcd/Hinge Unit

    CHAPTER 3. REPAIR INSTRUCTION Precaution when installing the screws Be sure to coat the screw-lock (Three Bond 1401C) (1)-3 when installing the screws. (1)-1 LCD/HINGE UNIT (1)-7 Claws (1)-2 HINGE COVER Precaution when attaching the LCD/HINGE UNIT (1)-6 Double-sided tape (1)-8 (1)-5 When attaching the LCD/HINGE UNIT, align...

  • Page 56: Main Pcb Ass

    CHAPTER 3. REPAIR INSTRUCTION (1)-1 (1)-1 (1)-3 (1)-3 (1)-2 MAIN PCB ASS'Y Fig. 3-11 MAIN PCB ASS’Y 2.2.8 MAIN PCB ASS’Y (1) MAIN PCB ASS’Y 1. Remove the five flexible cables. 2. Remove the screw. 3. Remove the MAIN PCB ASS’Y from the board-to-board connector. 3-11...

  • Page 57: Flash/Speaker Unit

    CHAPTER 3. REPAIR INSTRUCTION Precaution when installing the FLASH/SPEAKER UNIT When installing the FLASH/SPEAKER UNIT, route the cable on the back of the P.C.B. as shown in the illustration. FLASH/SPEAKER UNIT (1)-8 (1)-1 (1)-9 MINI FRAME (1)-3 (1)-5 (1)-1 SUB FRAME (1)-7 (1)-8 Fig.

  • Page 58: Jack Pcb Ass

    CHAPTER 3. REPAIR INSTRUCTION (1)-2 JACK PCB ASS'Y (1)-3 (1)-1 Fig. 3-13 JACK PCB ASS’Y 2.2.10 JACK PCB ASS’Y (1) JACK PCB ASS’Y 1. Remove the flexible cable. 2. Remove the two screws. 3. Remove the JACK PCB ASS’Y. 3-13...

  • Page 59: Rear Plate Unit

    CHAPTER 3. REPAIR INSTRUCTION REAR PLATE UNIT (1)-2 (1)-3 (1)-2 (1)-3 (1)-1 (1)-2 REAR PLATE UNIT NOTE (Assembling) (1)-5 When installing the REAR PLATE UNIT, route the cable underneath the flexible cable as shown in the illustration. (1)-4 NOTE (Assembling) Attach the both-sided tape T-4000.

  • Page 60: Main Sheet

    CHAPTER 3. REPAIR INSTRUCTION MAIN SHEET (1)-2 (1)-1 Fig. 3-15 MAIN SHEET 2.2.12 MAIN SHEET (1) MAIN SHEET 1. Remove the screw. 2. Remove the MAIN SHEET. 3-15...

  • Page 61: Finder Unit

    CHAPTER 3. REPAIR INSTRUCTION (1)-1 FINDER UNIT (1)-2 For the re-assembling method of the FINDER UNIT and OPTICAL UNIT, see page 3-17 to 3-18. Fig. 3-16 FINDER UNIT 2.2.13 FINDER UNIT (1) FINDER UNIT 1. Remove the three screws. 2. Remove the FINDER UNIT in the direction of the arrow. 3-16...
  • Page 62 CHAPTER 3. REPAIR INSTRUCTION Re-assembling method of the FINDER UNIT and OPTICAL UNIT STEP 1 OPTICAL UNIT Line Y Line X Rotate the gear with fingers so that the line X is aligned with the line Y that are inscribed on the lens-barrel. STEP 2 STEP 3 Hole B...
  • Page 63 CHAPTER 3. REPAIR INSTRUCTION STEP 4 Hole B Hole A Wire of φ1.2 mm Insert a wire of φ1.2 mm into the hole A and the hole B, and lock the gear with the wire. * When locking the gear, look into the viewfinder and confirm that the zoom lens is at positioned at the wide end.

  • Page 64: Optical Unit

    CHAPTER 3. REPAIR INSTRUCTION OPTICAL UNIT (1)-2 LENS PLATE (1)-1 Fig. 3-19 OPTICAL UNIT 2.2.14 OPTICAL UNIT (1) OPTICAL UNIT 1. Remove the three screws. 2. Remove the OPTICAL UNIT. 3-19...

  • Page 65: Cf Unit, Battery Box Unit

    CHAPTER 3. REPAIR INSTRUCTION BATTERY BOX UNIT Position setting (2)-3 (2)-2 CF PLATE CF UNIT (2)-1 (1)-2 (1)-1 (1)-1 (1)-1 CF card eject lever Fig. 3-20 CF UNIT, BATTERY BOX UNIT 2.2.15 CF UNIT, BATTERY BOX UNIT (1) CF UNIT 1.

  • Page 66: Dc/Dc Converter Pcb Ass

    CHAPTER 3. REPAIR INSTRUCTION DC/DC CONVERTER PCB ASS'Y (1)-2 VID FPC (1)-1 Fig. 3-21 DC/DC CONVERTER PCB ASS’Y 2.2.16 DC/DC CONVERTER PCB ASS’Y (1) DC/DC CONVERTER PCB ASS’Y 1. Remove the three screws. 2. Remove the DC/DC CONVERTER PCB ASS’Y. 3-21...

  • Page 67: Tripod Base

    CHAPTER 3. REPAIR INSTRUCTION (1)-2 TRIPOD BASE MAIN FRAME (1)-1 Fig. 3-22 TRIPOD BASE 2.2.17 TRIPOD BASE (1) TRIPOD BASE 1. Remove the two screws. 2. Remove the TRIPOD BASE from the MAIN FRAME. 3-22...

  • Page 68: Disassembly Of Main Units

    CHAPTER 3. REPAIR INSTRUCTION 2.3 Disassembly of Main Units (1)-1 (1)-1 (1)-1 Be careful not to drop. SELF TIMER BUTTON (1)-1 (1)-2 B/W LCD UNIT (1)-3 Position setting Position setting DIAL/COVER UNIT NOTE (Assembling) To re-assemble the DIAL/COVER UNIT and the B/W LCD UNIT, install them in the status that the MAIN DIAL BRUSH, MODE DIAL BRUSH, MAIN DIAL and MODE DIAL are rotated in the direction of the arrow as far as they can go.

  • Page 69: Zoom Lever Unit

    CHAPTER 3. REPAIR INSTRUCTION ZOOM BRUSH Claw (1)-1 (1)-1 E RING (1)-3 (1)-2 ZOOM SPRING (1)-4 ZOOM LEVER (1)-6 RELEASE SPRING (1)-5 RELEASE CAP, RELEASE BUTTON NOTE (Assembling) RELEASE CAP RELEASE BUTTON Attach the RELEASE BUTTON and the RELEASE CAP with Dia bond (adhesive agent).

  • Page 70: Mode Dial

    CHAPTER 3. REPAIR INSTRUCTION (1)-1 NOTE (Assembling) (1)-2 MODE CONNECTIVE PLATE Set the MODE DIAL to "M" and then install the MODE CONNECTIVE PLATE to the position as shown in the illustration. (1)-6 MODE CLICK SPRING NOTE (Assembling) (1)-5 MAIN DIAL Coat the sliding surface of the MODE DIAL and MAIN DIAL with Logenest Lambda A-74.

  • Page 71: Acc. Shoe

    CHAPTER 3. REPAIR INSTRUCTION NOTE (Assembling) NOTE (Assembling) Coat it with the Dia bond 1663G. ACC. SHOE SPRING After tightening the screw, (1)-2 coat the Three bond 1401C. (1)-1 Insert a pair of tweezers under the ACC. SHOE (1)-3 ACC. SHOE SPRING and remove it. CAUTION Be careful not to damage the parts! Fig.

  • Page 72: Acc. Shoe Unit

    CHAPTER 3. REPAIR INSTRUCTION (1)-3 ACC. DETECT BASE2 (1)-2 (1)-4 ACC. DETECT PLATE (1)-6 ACC. DETECT BASE1 (2)-1 (1)-1 (1)-5 Soldering ACC. SHOE PIN Be careful not to drop. (2)-2 ACC. SHOE FRAME (2)-4 ACC. SHOE FPC (2)-3 Soldering (2)-4 ACC.

  • Page 73: B/W Lcd Window Unit

    CHAPTER 3. REPAIR INSTRUCTION (3)-3 DUST COVER SEAL B/W LCD WINDOW B/W LCD WINDOW UNIT (1)-2 B/W WINDOW ADHESIVE TAPE (1)-1 TOP COVER UNIT Fig. 3-28 B/W LCD WINDOW UNIT 2.3.1.6 B/W LCD WINDOW UNIT (1) B/W LCD WINDOW, B/W WINDOW ADHESIVE TAPE, DUST COVER SEAL 1.

  • Page 74: Main Brush

    CHAPTER 3. REPAIR INSTRUCTION E RING MODE BASE PLATE (1)-1 MAIN BRUSH (1)-2 (1)-4 Claws (1)-4 MODE DIAL BRUSH MODE DIAL FRAME (1)-3 Fig. 3-29 MAIN BRUSH 2.3.1.7 MAIN BRUSH (1) MODE BASE PLATE, MODE DIAL FRAME, MAIN BRUSH, MODE DIAL BRUSH 1.

  • Page 75: B/W Lcd Panel

    CHAPTER 3. REPAIR INSTRUCTION Projected part B/W LCD CLIP (1)-1 (1)-1 NOTE (Assembling) Align the protruded portion of the B/W LCD PANEL with the cavity portion of the B/W LCD HOLDER. Projected part B/W LCD CLIP (1)-2 CONTACT RUBBER Be careful not to drop.

  • Page 76: Flash/Speaker Unit

    CHAPTER 3. REPAIR INSTRUCTION NOTE (Assembling) FLASH UNIT NOTE (Assembling) Coat the Dia bond 1663G. Attach the both-sided tape. NOTE (Assembling) Coat the Dia bond 1663G. (2)-2 (1)-1 (1)-1 (2)-1 AF LED LENS UNIT SPEAKER UNIT SPEAKER BUSH Fig. 3-31 FLASH/SPEAKER UNIT 2.3.2 FLASH/SPEAKER UNIT 2.3.2.1 FLASH/SPEAKER UNIT (1) SPEAKER UNIT...

  • Page 77: Af Led Lens Unit

    CHAPTER 3. REPAIR INSTRUCTION AF LED LEAD NOTE (Assembling) Coat the Dia bond 1663G. (1)-2 Soldering AF LED HOLDER (1)-1 (1)-3 AF LED FPC NOTE (Assembling) AF LED LENS Coat the cross-hatched portion with the Cemedine Super X. Fig. 3-32 AF LED LENS UNIT 2.3.2.2 AF LED LENS UNIT (1) AF LED FPC, AF LED LENS 1.

  • Page 78: Rear Plate Unit

    CHAPTER 3. REPAIR INSTRUCTION NOTE (Assembling) Attach the both-sided tape. (1)-2 (1)-1 (1)-3 Soldering MIC. UNIT MIC. HOLDER FLASH IC HOLDER Fig. 3-33 REAR PLATE UNIT 2.3.3 REAR PLATE UNIT 2.3.3.1 REAR PLATE UNIT (1) MIC. HOLDER, FLASH IC HOLDER, MIC. UNIT 1.

  • Page 79: Button Pcb Ass

    CHAPTER 3. REPAIR INSTRUCTION REAR FRAME Position setting Both-sided tape BUTTON PCB ASS'Y Both-sided tape (1)-2 (1)-3 SEL. BUTTON BASE Position setting Position setting (1)-1 NOTE (Assembling) Attach the both-sided tape T-4000. Fig. 3-34 BUTTON PCB ASS’Y 2.3.3.2 BUTTON PCB ASS’Y (1) SEL.

  • Page 80: Battery Box Unit

    CHAPTER 3. REPAIR INSTRUCTION BATTERY COVER OPENER BATTERY COVER BATTERY COVER (1)-1 (1)-2 (1)-1 DATE BATTERY HOLDER (2)-1 DATE BATTERY (2)-1 Fig. 3-35 BATTERY COVER, DATE BATTERY HOLDER 2.3.4 BATTERY BOX UNIT 2.3.4.1 BATTERY COVER, DATE BATTERY HOLDER (1) BATTERY COVER 1.

  • Page 81: Battery Box Unit

    CHAPTER 3. REPAIR INSTRUCTION Be careful not to drop. BATTERY LOCK SPRING BATTERY COVER LOCK (2)-2 SUB LEAD (2)-1 (1)-2 Soldering (2)-3 BATTERY EJECT SPRING (1)-1 (3)-3 BATTERY BOX COVER Claws BATTERY LOCK SWITCH (3)-2 Projected part (2)-3 Be careful (3)-1 not to drop.

  • Page 82: Battery Box Cable

    CHAPTER 3. REPAIR INSTRUCTION BLACK(DATE LEAD*) Soldering Soldering BLACK(POWER LEAD) DATE LEAD* = SUB LEAD (CK2-1169-000) RED(DATE LEAD*) RED(POWER LEAD) NOTE (Assembling) Coat the Dia bond 1663G. Fig. 3-37 BATTERY BOX CABLE 2.3.4.3 BATTERY BOX CABLE (1) POWER LEAD 1. Remove the soldering of the POWER LEAD, DATE LEAD. 2.

  • Page 83: Lcd/Hinge Unit

    CHAPTER 3. REPAIR INSTRUCTION (1)-1 NOTE (Assembling) Coat the Dia bond 1663G. HINGE UNIT (2)-1 Soldering (2)-4 (2)-3 (1)-2 (1)-3 (2)-2 HINGE UNIT LCD TOP COVER (1)-2 Fig. 3-38 LCD TOP COVER, HINGE UNIT 2.3.5 LCD/HINGE UNIT 2.3.5.1 LCD TOP COVER, HINGE UNIT (1) LCD TOP COVER 1.

  • Page 84: Lcd Frame Cover

    CHAPTER 3. REPAIR INSTRUCTION NUT PLATE LCD PANEL (1)-2 LCD FRAME COVER (1)-3 (1)-1 Reference pin Fig. 3-39 LCD FRAME COVER 2.3.5.2 LCD FRAME COVER (1) LCD FRAME COVER 1. Remove the screw. 2. Remove the NUT PLATE. 3. Remove the LCD FRAME COVER from the LCD PANEL. 3-39...

  • Page 85: Lcd Panel

    CHAPTER 3. REPAIR INSTRUCTION LCD FPC SPACER (4)-1 LCD PANEL (4)-2 NOTE (Assembling) In the case of the repair service part, it is supplied with the protection sheet. Remove the protection sheet before use. Dowels (4)-4 (4)-3 (4)-3 Dowels Fig. 3-40 LCD PANEL 2.3.5.3 LCD PANEL (1) LCD PANEL, LCD FPC SPACER 1.

  • Page 86: Lcd Pcb Ass

    CHAPTER 3. REPAIR INSTRUCTION (5)-1 Soldering LCD PCB ASS'Y LCD SHEET (5)-2 (5)-2 BACK LIGHT UNIT Fig. 3-41 LCD PCB ASS’Y 2.3.5.4 LCD PCB ASS’Y (1) LCD PCB ASS’Y, LCD SHEET, BACK LIGHT UNIT 1. Remove the soldering. 2. Remove the LCD PCB ASS’Y, LCD SHEET from the BACK LIGHT UNIT. 3-41...

  • Page 87: Screw List

    CHAPTER 3. REPAIR INSTRUCTION 2.4 Screw List CB1-1998-000 CD1-4023-000 CD1-4024-000 CD1-4025-000 CD1-4029-000 3.0mm 3.0mm 3.0mm 4.5mm 5.0mm METAL TITANIUM METAL MEATAL MEATAL MEATAL M1.7 M1.7 M1.7 M1.7 M1.7 (SELF TAP) CD1-4031-000 CD1-4030-000 CD1-4032-000 CD1-4033-000 CD1-4034-000 2.0mm 3.0mm 3.5mm 4.0mm 6.0mm CHAMPAGNE CHAMPAGNE TITANIUM METAL...

  • Page 88: Adjustments

    3. Adjustments 3.1 Replacement Parts and Adjustment Items PowerShot G2 requires electrical adjustments when certain parts are replaced. The table below indicates the adjustments required for the respective part replacements. For all other parts not listed below, no electrical adjustments are necessary after replacement.

  • Page 89: Adjustment Tools

    CHAPTER 3. REPAIR INSTRUCTION 3.2 Adjustment Tools The following tools are required for electrical adjustment. DESCRIPTION PARTS NO. REMARKS PC/AT-Compatible Machine — Local purchase (Windows98 pre-installed Model, USB port) CD-ROM, Adjustment Software (CD-ROM) CY8-4373-031 SERVICE MANUAL (J/E) Enclosed in camera kit Compact Power Adapter CA-560 —...

  • Page 90: Before Starting Electrical Adjustments

    CHAPTER 3. REPAIR INSTRUCTION 3.3 Before Starting Electrical Adjustments 3.3.1 TWAIN Driver Installation Install the USB Driver for Adjustment in the CD-ROM to PC. (“This Adjustment Software” is impossible when the RS-232C TWAIN driver is used.) 3.3.2 Installing the Adjustment Software 1.
  • Page 91 CHAPTER 3. REPAIR INSTRUCTION 3. When the dialog box below appears, click the button. (Software installation will then begin.) 4. When the dialog box below appears, click the “Continue” button. (In the case that you do not add a shortcut on desktop, remove clicking from the check box.) 3-46...

  • Page 92: Preparation

    CHAPTER 3. REPAIR INSTRUCTION 3.3.3 Preparation Before starting up the Adjustment Software, follow the preparatory steps below: 1. Obtain all the tools necessary for the adjustment. 2. Connect the Camera to the Power Source with the Compact Power Adapter CA-560. 3.

  • Page 93: Starting Up The Adjustment Software

    CHAPTER 3. REPAIR INSTRUCTION 3.3.4 Starting up the Adjustment Software After completing the preparatory steps, click Start and move the cursor to Program; then select Canon Digital Camera and click PowerShot G2 Adjustment. 3.3.5 Menu Window When the Adjustment Software starts up, the Menu Window below will appear.

  • Page 94: Calibration

    CHAPTER 3. REPAIR INSTRUCTION 3.4 Calibration 3.4.1 Calibration I Tools Used • Reference Camera (Merchandise) • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • Color Viewer (5600° K) • ND-8 Filter • W-10 Filter (2pcs.) •...
  • Page 95 CHAPTER 3. REPAIR INSTRUCTION 1. Place the camera so that lens is set against the Brightness C-12 Filter light source surface of the Brightness Box via the C-12 Filter. 2. Set the Brightness Box to EV12. CAMERA 3. Click the “Check” button. BODY 4.
  • Page 96 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears go to 9. 1. Remove the ND-4 Filter. W-10 Filter 2. Attach the two W-10 Filters between the Lens Color Viewer and the Color Viewer. CAMERA Place the camera so that the lens is set against BODY the center part of the Color Viewer.
  • Page 97 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears go to 13. 1. Attach the Color Bar Chart to the Color Viewer. Color Bar Chart Color Viewer 2. Place the camera so that the Viewing image of the color bar chart is the full of LCD with the ND-4 Filter attached.
  • Page 98 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears, click the “FINISH” button. (This ends the “Calibration”.) 3-53...

  • Page 99: Adjustment Procedure

    3.5 Adjustment Procedure 3.5.1 Language setting Unlike the conventional PowerShot Series (incl. IXY DIGITAL), the PowerShot G2 can select the video output system (NTSC/PAL). (The video output system is not settable with the Adjustment Software.) On the other hand, the user cannot select the indication language of the LCD, as it is already prepared for each destination as below.

  • Page 100: Ccd Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.2 CCD Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • Brightness Box (light source A) • C-12 Filter Click the “CCD” button. When the message on the right appears, go to 3. 1.
  • Page 101 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears, click the “FINISH” button. (This ends the “CCD” Adjustment.) 3-56...

  • Page 102: Optical Unit Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.3 Optical Unit Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • AF Chart • Tripod Click the “Optical Unit” button. When the message on the right appears, turn off/on the camera.
  • Page 103 CHAPTER 3. REPAIR INSTRUCTION 1. Place the Auto Focus Chart at 43.5cm away from the front of the camera ring. AF CHART * Place the Auto Focus Chart on a plain color wall or equivalent. 43.5cm * Adjust the light so that the brightness of the chart will be about EV8.5.

  • Page 104: Imaging Process Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.4 Imaging Process Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • Brightness Box (light source A) • W-10 Filter (2 pcs.) • ND-4 Filter •...
  • Page 105 CHAPTER 3. REPAIR INSTRUCTION 1. Place the camera so that lens is set against the Brightness light source surface of the Brightness Box via C-12 Filter the C-12 Filter. 2. Set the Brightness Box to EV12. CAMERA 3. Click the “ADJUST” button. BODY Power Source...
  • Page 106 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears, go to 9. W-10 1. Remove the ND-4 Filter. Filter 2. Attach the two W-10 Filters. Color Viewer CAMERA Place the camera so that the lens is set against BODY the center part of the Color Viewer.
  • Page 107 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears go to 13. 1. Attach the Color Bar Chart to the Color Viewer. Color Bar Chart Color Viewer 2. Place the camera so that the viewing image of the color bar chart is the full of LCD. 3.
  • Page 108 CHAPTER 3. REPAIR INSTRUCTION 1. Confirm to see that the image on the PC moni- tor satisfies the specifications. 2. If the image on the PC monitor does not satisfy the specifications, change the data using UP, DOWN button or change the data directly by typing the data in the text box.

  • Page 109: Pixel Dot Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.5 Pixel Dot Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • Brightness Box (light source A) • C-12 Filter • Light-Shielding Cloth (500 × 500 or larger) •...
  • Page 110 CHAPTER 3. REPAIR INSTRUCTION 1. When the message on the right appears, cover the camera with the Light-Shielding Cloth so that the no light reasons the CCD. 2. Click the “ADJUST” button. When the message on the right appears, click the “FINISH”...

  • Page 111: Lcd Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.6 LCD Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software Click the “LCD” button. When the message on the right appears, enter in the text boxes the data written on the data-sheet is attached with LCD PCB ASS’Y.

  • Page 112: Flash Adjustment

    CHAPTER 3. REPAIR INSTRUCTION 3.5.7 Flash Adjustment I Tools Used • Personal Computer • Compact Power Adapter CA-560 • INTERFACE CABLE IFC-200PCU • Adjustment Software • 18% Gray Chart • Tripod • Speedlite 420EX Click the “Flash” button. When the message on the right appears, go to 3. Attach “Speedlite 420EX”...
  • Page 113 CHAPTER 3. REPAIR INSTRUCTION When the message on the right appears, turn the External-Flash off. Click the “ADJUST” button. When the message on the right appears, click the “FINISH” button. (This ends the “Flash” Adjustment.) 3-68...

  • Page 114: Checking Of Sound Recording/Output

    CHAPTER 3. REPAIR INSTRUCTION 3.5.8 Checking of sound recording/output It is not required to adjust the recording/output (volume, etc.) of sound. Check the camera if the sound is recorded/play-backed properly. 3-69...
  • Page 115 CHAPTER 4. PARTS CATALOG CONTENTS PowerShot G2 Main parts/units ------------------------------------------------------------------------------------------------------------------ Pg1 TOP UNIT ------------------------------------------------------------------------------------------------------------------------ Pg2 FLASH/SPEAKER UNIT ------------------------------------------------------------------------------------------------------ Pg3 REAR PLATE UNIT ------------------------------------------------------------------------------------------------------------ Pg4 BATTERY BOX UNIT --------------------------------------------------------------------------------------------------------- Pg5 LCD/HINGE UNIT -------------------------------------------------------------------------------------------------------------- Pg6 Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg7 Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg8 Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg9...

  • Page 116: Powershot G2

    PowerShot G2 Main parts/units See Pg2 See Pg4 48 12 See Pg5 See Pg6 See Pg3...
  • Page 117 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CM1-1258-000 FRONT COVER UNIT CD1-3999-000 RING, FRONT...

  • Page 118: Top Unit

    PowerShot G2 TOP UNIT...
  • Page 119 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD1-4018-000 FRAME, ACCESSORY SHOE CD1-4012-000 FRAME, B/W LCD...

  • Page 120: Flash/Speaker Unit

    PowerShot G2 FLASH/SPEAKER UNIT...
  • Page 121 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD1-3281-000 BUSH, SPEAKER CM1-1267-000 SPEAKER UNIT...

  • Page 122: Rear Plate Unit

    PowerShot G2 REAR PLATE UNIT...
  • Page 123 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD1-3213-000 HOLDER, MICROPHONE CD1-3212-000 COVER, FLASH IC...

  • Page 124: Battery Box Unit

    PowerShot G2 BATTERY BOX UNIT...
  • Page 125 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD1-3987-000 COVER, BATTERY CD1-3264-000 HOLDER, DATE BATTERY...

  • Page 126: Lcd/Hinge Unit

    PowerShot G2 LCD/HINGE UNIT...
  • Page 127 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD1-4020-000 COVER, HINGE CM1-1253-000 HINGE UNIT...
  • Page 128 PowerShot G2 Accessories-1 Neck Strap USB Interface Cable Wireless Controller NS-DC300 IFC-200PCU Lens Cap AV Cable AVC-DC100 Camera User Guide CF Card FC-32M Direct Interface Cable Software Starter Guide DIF-200 Canon Digital Camera Solution Disk, Soft Case SC-PS700 System Map Adobe photoshop LE N.Sl...
  • Page 129 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S C84-1084-000 STRAP, NECK C84-1083-000 LENS CAP UNIT CY1-6122-000 CD-ROM, SOLUTION DISC VER.6.0...
  • Page 130 PowerShot G2 Accessories-2 Compact Power Adapter CA-560 Battery Pack BP-511 PLUG TYPE Charger Adapter/Car Battery Cable Kit CR-560 DC CABLE CB-560...
  • Page 131 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S D89-0900-000 CORE, FERRITE DY4-4763-000 CORD, DC...
  • Page 132 PowerShot G2 Accessories-3 Conversion Lens Adapter Tele Converter TC-DC58 LA-DC58 Wide Converter WC-DC58 Close-up Lens 250D (58mm) N.Sl : N.S Stand for No Stock (Product available)
  • Page 133 PowerShot G2 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CY1-6071-000 CAP, FRONT CY1-6072-000 CAP, REAR...

  • Page 134: Service Tools

    PowerShot G2 Pg10 Service Tools DIA BOND No.1663G 18% Gray Chart CEMEDINE SUPER X (B) C-12 Filter Three Bond 1401C W-10 Filter LOGENEST RAMBDA A-74 Service Manual & Adjustment Software CD-ROM Adhesive Tape SONY T4000...
  • Page 135 PowerShot G2 Pg10 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CY9-8129-000 BOND, DIA BOND NO.1663G...

  • Page 136: Fuse

    PowerShot G2 Pg11 Fuse DC/DC CONVERTER PCB ASS’Y...
  • Page 137 PowerShot G2 Pg11 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CY4-6069-000 FUSE, DAITO KE25 CY4-6070-000...
  • Page 138 CHAPTER 5. DIAGRAMS CONTENTS 5-1. INTERCONNECTION DIAGRAM 5-3. P.C.B. DIAGRAMS 5-2. BLOCK DIAGRAMS 5-3-1. MAIN PCB ASS’Y 5-2-1. OVERALL 5-3-2. DC/DC CONVERTER PCB ASS’Y 5-2-2. MAIN PCB ASS’Y (1/3) 5-3-3. CF UNIT 5-2-3. MAIN PCB ASS’Y (2/3) 5-3-4. TOP MODULE UNIT 5-2-4.

  • Page 139: Interconnection Diagram

    BATTERY BOX UNIT Board to Board DC/DC CONVERTER PCB ASS'Y JACK PCB ASS'Y LCD PCB ASS'Y VID FPC AF LED FPC LCD ROTATION DETECT SW (HINGE UNIT) DC IN FLASH UNIT SPEAKER UNIT 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 140 /CD1 /CD1 LCD_SEG(13) VIDEO_OUT LCD_COM(0) LCD_SEG(3) LCD_SEG(2) AUDIO LCD_SEG(27) LCD_SEG(12) Not Connected LCD_SEG(11) CSUB VIDEO_SW LCD_SEG(10) LCD_SEG(9) FLASH UNIT LCD_SEG(8) LCD_SEG(7) LCD_SEG(6) IGBT LCD_SEG(5) VBAT LCD_SEG(4) SENSE LCD_SEG(3) LCD_SEG(2) LCD_SEG(1) LCD_SEG(0) VOUT LCD_COM(0) 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 141: Block Diagrams

    FLASH UNIT HV/OSC/XE_DRIVE DC/DC CONVERTER PCB ASS'Y VBAT SPEAKER UNIT VDD0 JACK PCB VDD2_5.5V VDD2_–15V ASS'Y VID FPC DC/DC VDD2_–7.5V CONVERTER VDD5_21V AV OUT VDD3_12V BATTERY BOX CHARGE CONTROL UNIT DC IN (9.5V) 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 142 L102 VDD2_-7.5V AD_VCC NXIN X101 VDD3_12V VDD3_12V TSS-6-14.31818MHz NXOUT SENSE E2LAT P3_0 E3LAT IGBT P3_1 PXIN E5LAT IC102 INV X102 P3_2 VC_DET E2LAT TSS-6_14.1875MHz E2LAT P4U_3 E3LAT E3LAT PXOUT E5LAT E5LAT VC_DET VC_DET 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 143 AFLED_22 VCPU Q103 INV LED1 AAPG1211 PDTC144EE IC117 P2-5 AFLED21 : Green RESET AFLED22 : Red RN5VD27A P2-4 MACRO : Umber MAIN PCB ASS'Y (2/3) VCPU P2-3 VCPU IC116 RTC4574JE Q101 INV XP6213 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 144 DQML SDDQM_2 XP03311 PCCE 2 /CE2 DQMU SDDQM_3 PCRDY /WAIT /CD1 PCIRQ IREQ /CD2 UDZS 2.0B PCIOIS /IOIS16 P0_5 P0_1 RESET P4U_0 P2_5 /INPACK P2_4 P0_0 /REG P2_3 P0_4 P3_3 /CD1 /CD2 VDD1 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 145: Dc/Dc Converter Pcb Ass'y

    POWER SW D105 D103 VBAT VBAT VBAT AF LED FPC Q103 T102 Q105 VDD2_5.5V C105 VBUS CURRENT LIMIT REDCNT SW LED DRIVE Q101 POWER SW DRIVE SENSE SENSE IGBT IGBT VBUS Q104 XE DRIVE 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 146: Lcd Pcb Ass'y

    Q1 LCD V DET. WIDE WIDE XP6210 P_DET02 HCK1 HCK1 HCK2 HCK2 PSIGOUT FROM LCD_12V VCC2 MAIN PCB ASS'Y VDD0 BLK_21V BLK_BRT Q5 BUFFER PSIG XP4601 Q6 BUFFER XP4601 BACKLIGHT UNIT Q2 LCD BRIGHT CONT 2PC4617 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 147 5-2-7. Abbreviation in Block Diagrams Abbreviation Nominal name Description Analog-to-Digital (A/D) Converter Automatic Exposure control Automatic Focussing control Logic AND circuit R-Y/B-Y Color difference signals of TV system Band-Pass Filter BUFFER Buffer circuit Chrominance signal Color component signal of TV system Charge-Coupled Device CCD imager Correlated Double Sampling system...

  • Page 148: Diagrams

    5-3. P.C.B. DIAGRAMS 5-3-1. MAIN PCB ASS’Y MAIN PCB ASS'Y (SOLDERING SIDE) MAIN PCB ASS'Y (COMPONENT SIDE) 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 149: Dc/Dc Converter Pcb Ass'y

    5-3-2. DC/DC CONVERTER PCB ASS’Y DC/DC CONVERTER PCB ASS'Y (SOLDERING SIDE) DC/DC CONVERTER PCB ASS'Y (COMPONENT SIDE) 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 150: Cf Unit

    5-3-3. CF UNIT 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 151: Top Module Unit

    5-3-4. TOP MODULE UNIT 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 152: Lcd Pcb Ass'y

    5-3-5. LCD PCB ASS’Y 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 153: Button Pcb Ass'y

    5-3-6. BUTTON PCB ASS’Y 01 AUGUST, 2001 C CANON INC., 2001...

  • Page 154: Jack Pcb Ass'y

    5-3-7. JACK PCB ASS’Y 01 AUGUST, 2001 C CANON INC., 2001...
  • Page 155 PowerShot G2 Auto Focus Chart Dimensions 128.00mm...

Table of Contents
