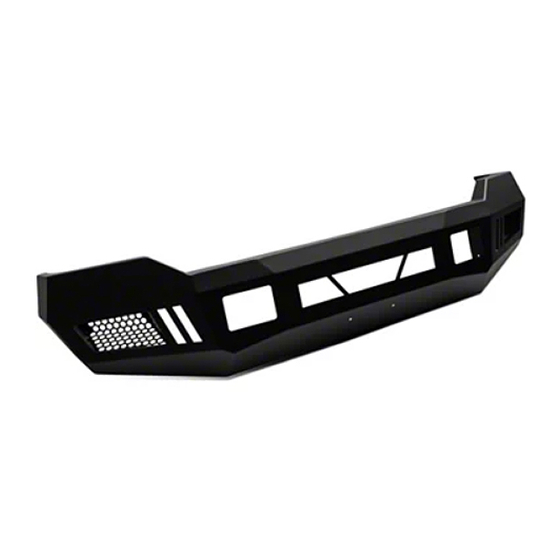

- Page 1 TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS ARMOUR FRONT BUMPER FOR 11-16 FORD F250/350 SUPERDUTY PART#AFB-F211...
-
Page 2: Parts List
ARMOUR FRONT BUMPER 2011-16 FORD SUPERDUTY F250-350 PARTS LIST: ARMOUR Front Bumper Assembly 8-1.25mm x 25mm Hex Bolts Driver/left side Support Bracket 8-1.25mm x 16mm Hex Bolts Passenger/right side Support Bracket 8mm x 24mm x 2mm Flat Washers Driver/left side Light Bar “L” Bracket 8mm Lock Washers Passenger/right side Light Bar “L”... - Page 3 ARMOUR FRONT BUMPER 2011-16 FORD SUPERDUTY F250-350 5. Optional Center LED light installation (sold separately). NOTE: Light must be installed before Bumper Assembly is attached to ends of frame. a. Select the Driver side “L” Bracket. NOTE: “L” Brackets are offset for universal fitment for most LED bar style lights.
- Page 4 ARMOUR FRONT BUMPER 2011-16 FORD SUPERDUTY F250-350 Driver Side Installation Pictured Remove hardware attaching bumper support brackets to frame (Fig 1) Driver side lower frame extension and fog light wire harness pictured from behind bumper (Fig 2) Release clips attaching the wire harness for fog lights if equipped.
- Page 5 ARMOUR FRONT BUMPER 2011-16 FORD SUPERDUTY F250-350 Driver Side Installation Pictured (2) 8mm x 16mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers Front Right “L” Bracket Left “L” Bracket (2) 8mm x 25mm Hex Bolts (4) 8mm Flat Washers Fig 6 (2) 8mm Lock Washers (2) 8mm Hex Nuts...
- Page 6 ARMOUR FRONT BUMPER 2011-16 FORD SUPERDUTY F250-350 Driver Side Installation Pictured Factory double bolt plate WARNING! Do not crawl under bumper unless the bumper is properly supported on blocks or stands or the bumper may fall. (2) 12mm Hex Bolts (4) 12mm Flat Washers (2) 12mm Lock Washers (2) 12mm Hex Nuts...
