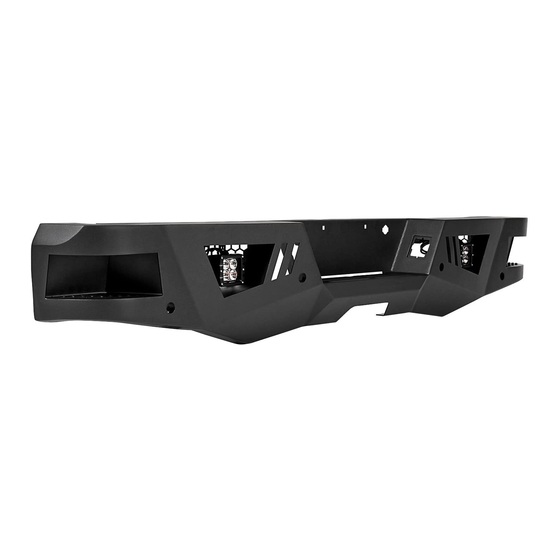

- Page 1 TEL：1-866-XANATOS INSTALLATION INSTRUCTIONS ARMOUR REAR BUMPER FOR 14-18 TOYOTA TUNDRA PART#ARB-TU14...
-
Page 2: Parts List
ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA PARTS LIST: 12-1.75mm x 45mm Hex Bolts Rear Bumper Assembly 12mm Lock Washers Driver/Left Mounting Bracket 12mm x 32mm x 3mm Flat Washers Passenger/Right Mounting Bracket License Plate Light Driver/Left Support Bracket Passenger/Right Support Bracket Plastic Plugs for license plate mount 12 14-1.5mm x 60mm Fine Thread Hex Bolts 4mm x 10mm Button Head Bolts... - Page 3 ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA d. Select the Passenger/Right Mounting Bracket and attach it to the four holes in the receiver hitch with the same (4) factory bolts, (Figures 7 & 8). Snug but do not fully tighten at this time. Repeat this Step to attach the Driver/Left Mounting Bracket on the driver side Models without Factory Receiver Hitch a.
- Page 4 ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA Passenger Side Installation Pictured Rear Rear (Fig 1) Unplug and remove 7-wire trailer plug (Fig 2) Remove factory bolts attaching bumper assembly to frame WARNING! Do not remove bumper bolts unless the bumper is properly supported on blocks or stands or the bumper may fall.
- Page 5 ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA Passenger Side Installation Pictured Note: Fig 6 only shows some factory hardware that must be removed. Additional factory hardware may need to be removed to remove the bumper (Fig 6A) Remove center plastic piece on top of the bumper (Fig 6B) Remove factory hardware under the plastic pieces.
- Page 6 ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA Factory Hardware or (2) 14mm Hex Bolts (4) 14mm Flat Washers (2) 14mm Lock Washers (2) 14mm Hex Nuts Frame (Fig 9) Models without receiver hitch attach Support Bracket to frame (Fig 10) Attach Support Bracket to inside of frame or receiver hitch.
- Page 7 ARMOUR REAR BUMPER 2014-18 TOYOTA TUNDRA Passenger Side Installation Pictured (2) 12mm x 45mm Hex Bolts (2) 12mm Lock Washers (2) 12mm Flat Washers License (2) License Plate Light Plate Plugs Trailer Plug Hole (Fig 12B) Attach Bumper Assembly to Mounting Brackets (2) 4mm Screws (Fig 13) Push plastic plugs into holes for license plate...
