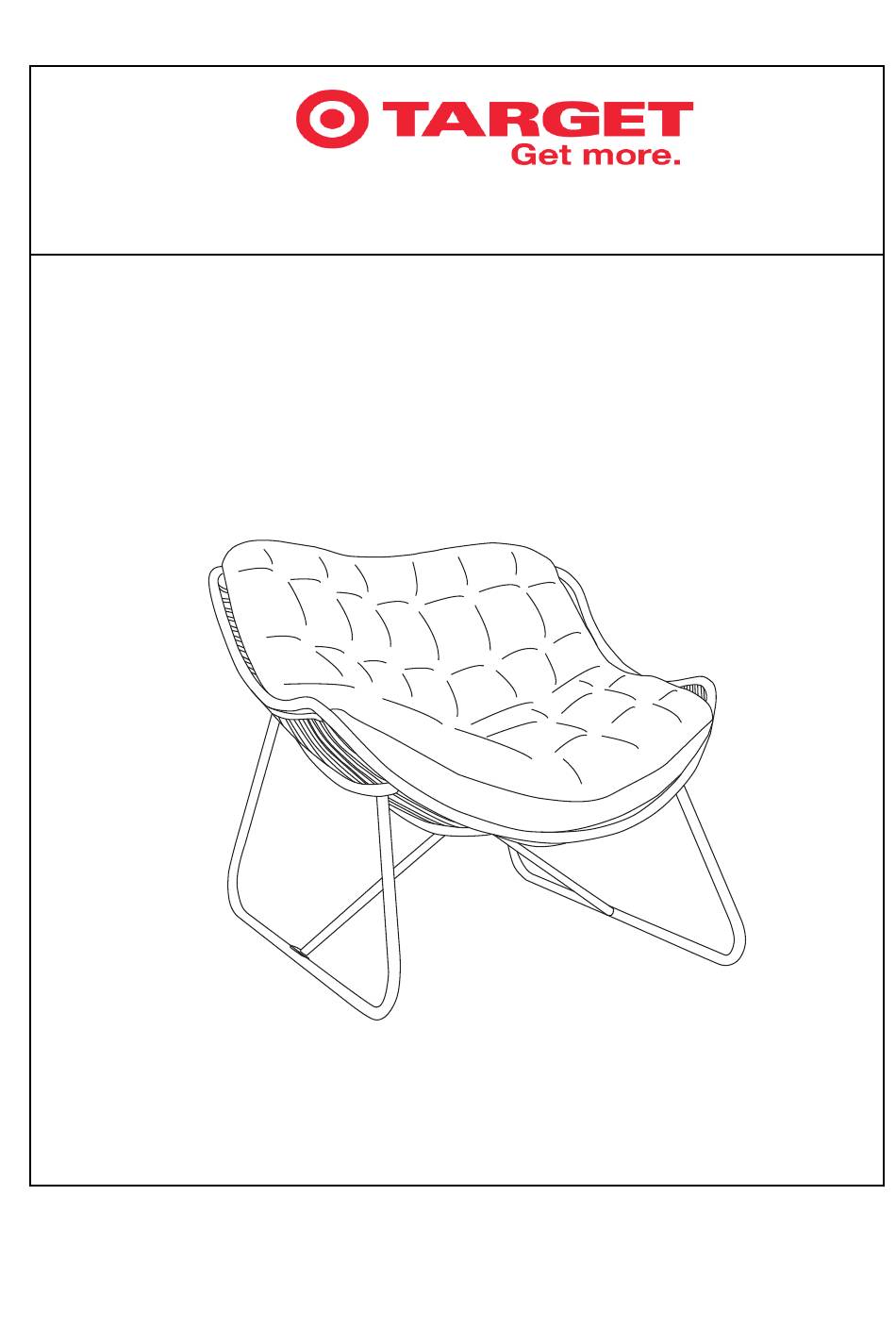

- Page 1 ASSEMBLY INSTRUCTIONS BALI LOUNGER WITH CUSHION FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. Take care when li ing.Product should be assembled as near as possible to the point of use. Ensure that you have all required contents for complete assembly. Always read the assembly instruc ons carefully before beginning assembly. - Page 3 COMPONENTS / HARDWARE 13pcs 12pcs M6*20 13pcs M6*35 FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
- Page 4 STEP 1 ALIGN HOLES IN PART B,PART C OVER THREADS IN PART A, ATTACH PART B,PART C TO PART A USING BOLTS AS SHOWN BELOW. FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
- Page 5 STEP 2 ALIGN HOLES IN PART D OVER THREADS IN PART B,PART C, ATTACH PART D TO PART B,PART C USING BOLTS AS SHOWN BELOW. FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
- Page 6 STEP 3 ALIGN HOLES IN PART D OVER THREADS IN PART A, ATTACH PART D TO PART A USING BOLTS AS SHOWN BELOW. COMPLETELY TIGHTEN ALL BOLTS AT THIS POINT. FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
- Page 7 STEP 4 YOUR LOUNGE IS READY FOR USE. FURNITURE NOT SUITABLE FOR COMMERCIAL USE...
