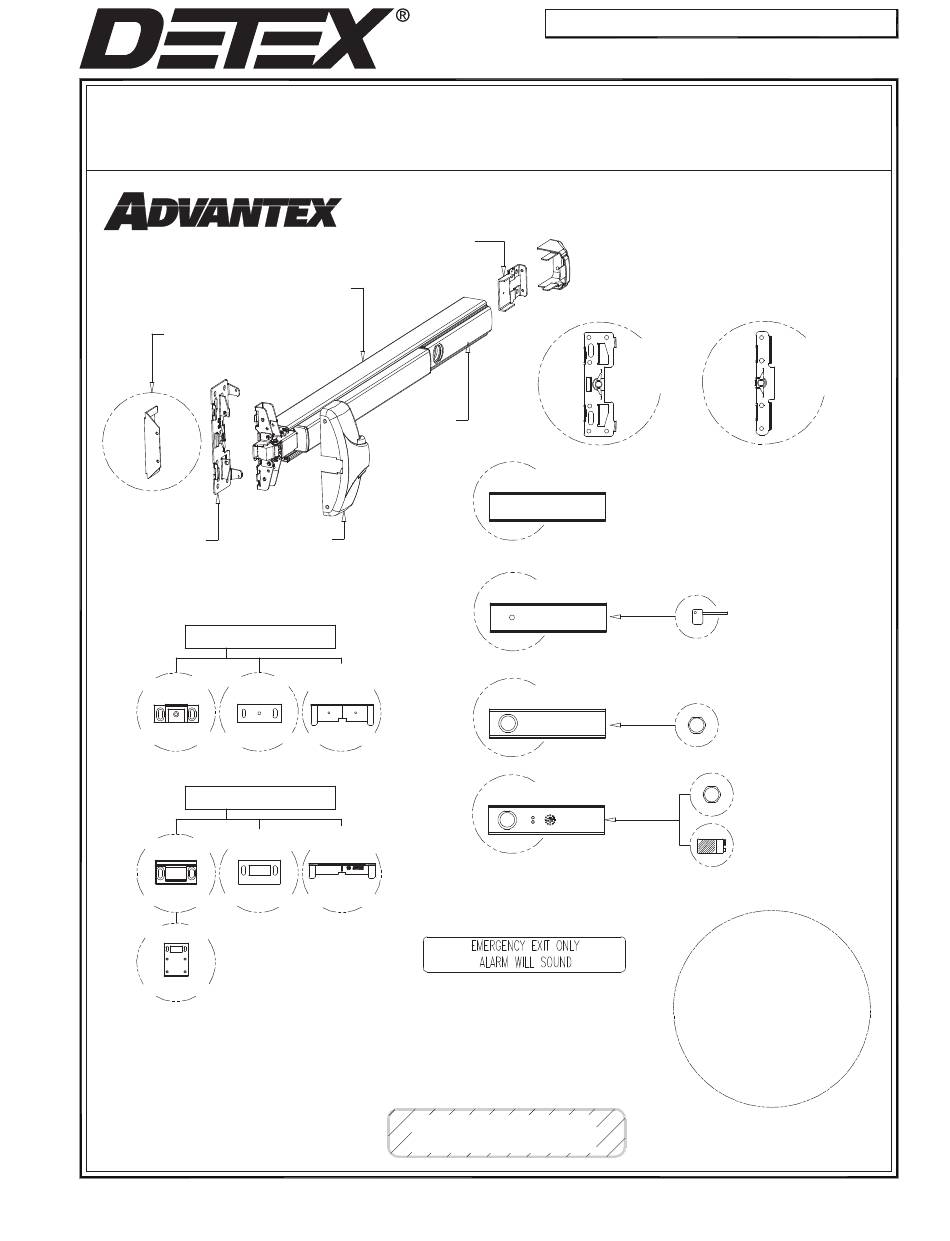

INSTALLATION INSTRUCTIONS FOR DETEX ADVANTEX® RIM 10/40 SERIES, F10/F40 SERIES
Centercase/Pushpad SubAssembly
Plastic Template
Use for ease of installation
Centercase Cover
Mounting plate
Subassembly
P/N: 100196-X (Wide)
P/N: 100311-X (Narrow)
99 Strike *, P/N: 100855-2
Non-Roller Strike
Strike Shim
P/N: 100234-1
P/N: 100088
98 Strike *, P/N: 100855-1
Mortise
Mortise Strike
Strike Shim
P/N: 100480
P/N: 100482
Strike Shield
P/N: 100481
* Note: Parts listed above will vary
according to product configuration.
Mortise cylinder not included with device.
Standard Yale type cam required.
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: detex@detex.com
AND "H" MODELS (HURRICANE)
®
RIM
Endcap Bracket
P/N: 101093
Endcap Bracket with
9V battery holder
P/N: 100147
Fillerplate
SubAssembly
Standard
Plastic Template
P/N: 100212
2" Narrow Stile
Plastic Template
P/N: 101899
(electrified versions only)
Owner's Copy
101256 Page 1
101256
INTERNET: www.detex.com
U.S. PATENT NUMBERS:
Endcap
P/N: 101642-X
INTERNATIONAL PATENT NUMBER:
Mounting plate
Subassembly
(wide stile)
P/N: 100697-X
Fillerplate Subassembly (LD)
P/N: 100860-4
Fillerplate SubAssembly (HD)
P/N: 100860-2
Fillerplate SubAssembly (CD)
P/N: 100860-1
Fillerplate SubAssembly (EA x CD)
P/N: 100860-3
Door Sign
P/N: EA-561
April 20, 2007
6009732
6205825B1
6532777B2
PCT6009732
Mounting plate
Subassembly
(narrow stile)
P/N: 100696-1
Hex Key
P/N: 100450
Hex Nut
P/N: 100783
Hex Nut
P/N: 100783
9V Battery
P/N: PP-5567
See
Optional Accessories
For:
- Glass Bead Kit
- Sex Nuts
- Tamper Kit
- Double Door Strike Kit
- Key Stop Kit
