Detex PT-5 Installation Instructions

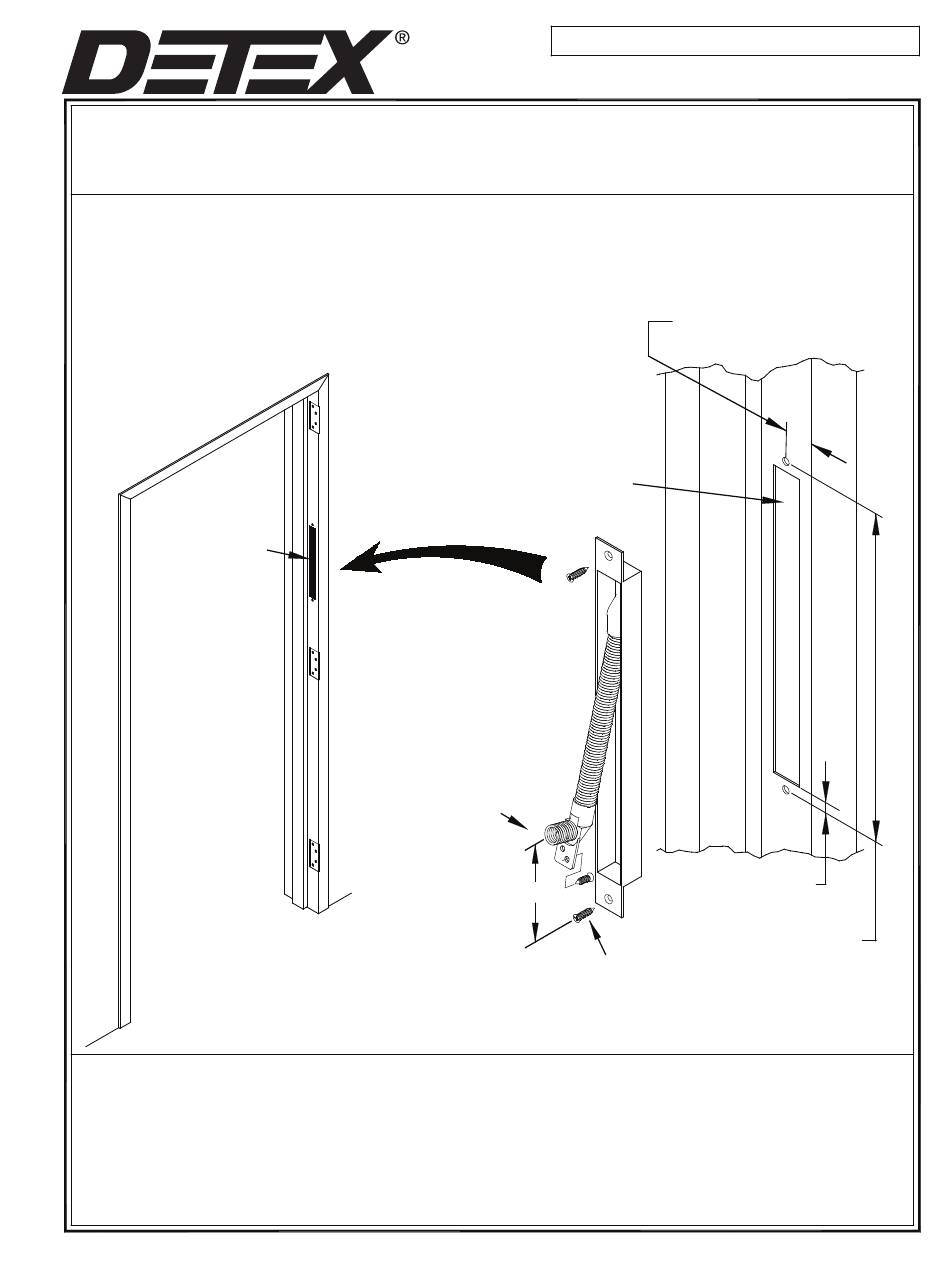

INSTALLATION INSTRUCTIONS FOR DETEX POWER TRANSFER, PT-5
P/N: PT-5
DWG: 102350
RECOMENDED
POSITION:
LOCATE BETWEEN
TOP AND MIDDLE
HINGE
REINFORCEMENTS
Detex® Security Hardware, when properly installed, used and maintained, is warranted to be free of defects in
material and workmanship. We will, for a period of one (1) year from the date of purchase, repair or replace any part
which, upon our examination, proves to be defective under normal use. Electrical components, when properly
installed, used and maintained, are warranted to be free of defects in material and workmanship for a period of one
(1) year. This warranty will be honored only upon presentation of proof that the product covered thereby was
purchased directly from an authorized Detex distributor. WE SHALL NOT BE LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE ARISING OUT OF THE FAILURE OF THIS PANIC
HARDWARE TO OPERATE.
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: detex@detex.com
Accepts jacketed cable up to 1/4" diameter.
For wood and metal doors and frames.
Intended for door openings less than 120 degrees.
Not intended for center hung door applications.
FRAME
PREPARATION:
10-1/4"L x 1" W x 3/4"D
DOOR PREPARATION:
1/2" DIA HOLE x 7/8"
DEEP
LOCATED 2" CENTER
TO CENTER FROM
THE BOTTOM
MOUNTING HOLE
103150 Page 1
103150 November 16, 2011
INTERNET: www.detex.com
7/8" from outside
face of door
2"
Four #6 self-drilling screws
four #6-32 machine screws
11/32"
TYP
10-15/16"
