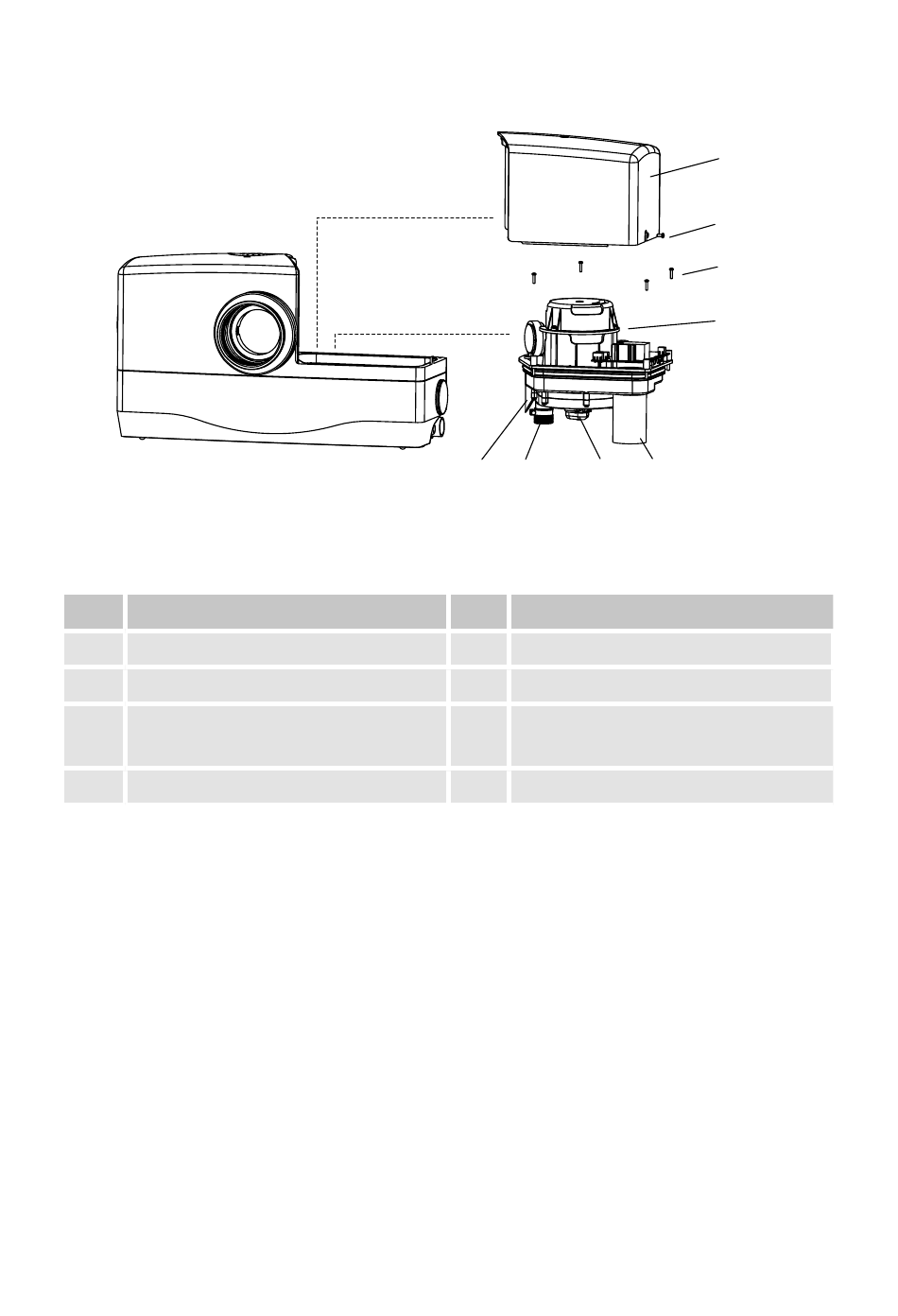

Exploded view

Pos Description
1
Cover
2
Cover securing screw
3
Motor/pumping unit securing
screws
4
Motor/pumping unit
> To take out the pumping unit for service, remove securing screw (2) and lift off
cover (1).
> Remove securing screws (3) and lift pumping unit (4) from tank (see fig. 9).
ATTENTION!
Never operate the lifting unit without the protective cover (1) securely fitted.
14. Exploded view
5
Figure 9
5
6
7
8
40
6 7 8
Level sensor
Discharge pipe
Shredding system
Capacitor housing
1
2
3
4
