Set Up/Installation - Conel FLOW CUT BOX Installation And Operation Instruction Manual

ATTENTION! The relevant standards must be observed.
For use below the backwash level:
Guide the discharge line with a loop above the backwash level.
>
> If the base of the discharge line loop is more than 5 m above the lifting unit, an
additional checkvalve must be installed.
> Provide shut off valves.
> Every drain must be fitted with an odour trap.
Also see installation dimensions (chapter 20, page 44 - 45, figure 14).
ATTENTION!
> The set up must be made frost-free and on level ground.
Connection of discharge pipe
> Use a PVC discharge pipe with an outside diameter of 25 or 32 mm.
> Push the pipe to about 16 mm into the rubber sleeve (use a lubricant if necessary)
and secure it on the outside with the existing hose clamp.
2
1
2
1

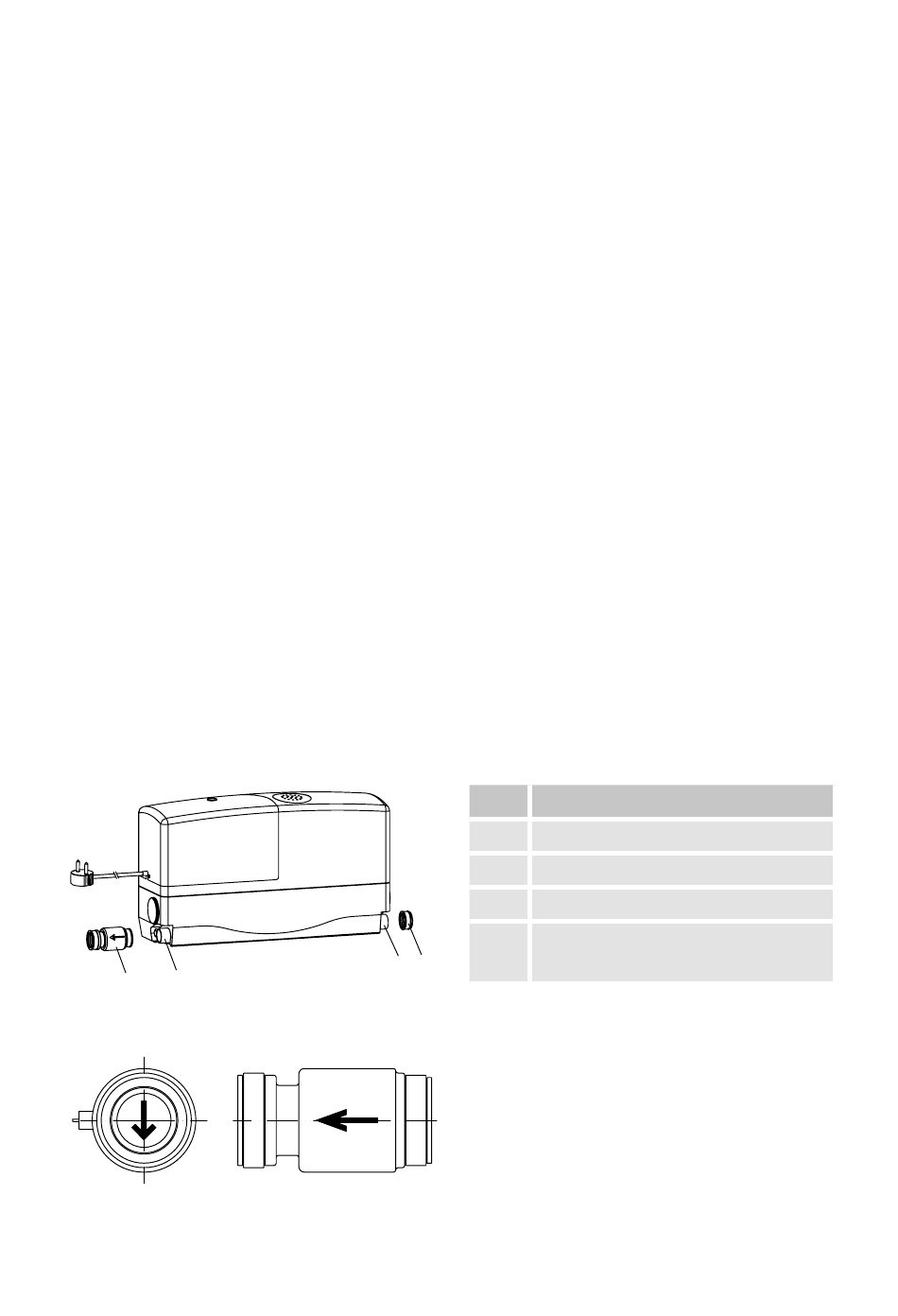

Figure 1
C
Figure 2
C

10. Set up/installation

10.1 For ground set up
3 4
Pos
1
2
3
4
3 4
Fitting of non-return valve
A = Flow must follow direction of arrow.
C = Flap must hinge from the top with
A
35
A
Set up/installation | For ground set up
Description
Non-return valve
Discharge line (right)
Discharge line (left)
Cap for unused end of
discharge line
arrow pointing down.
