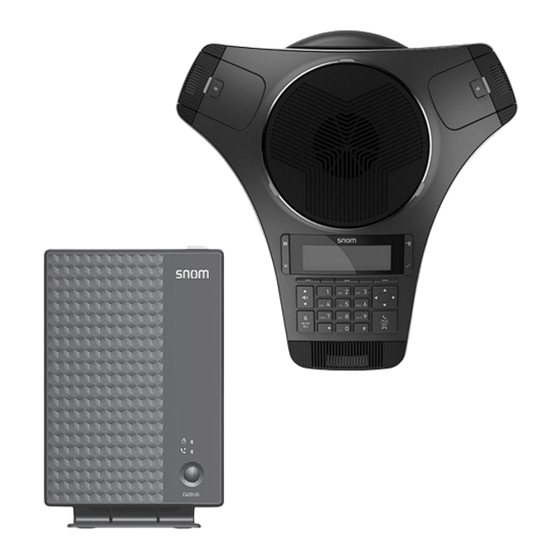

Snom C620 Quick Installation Manual
Sip wireless conference phone
Hide thumbs
Also See for C620:
- Administrator and provisioning manual (190 pages) ,
- User manual (69 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Snom C620
Summary of Contents for Snom C620

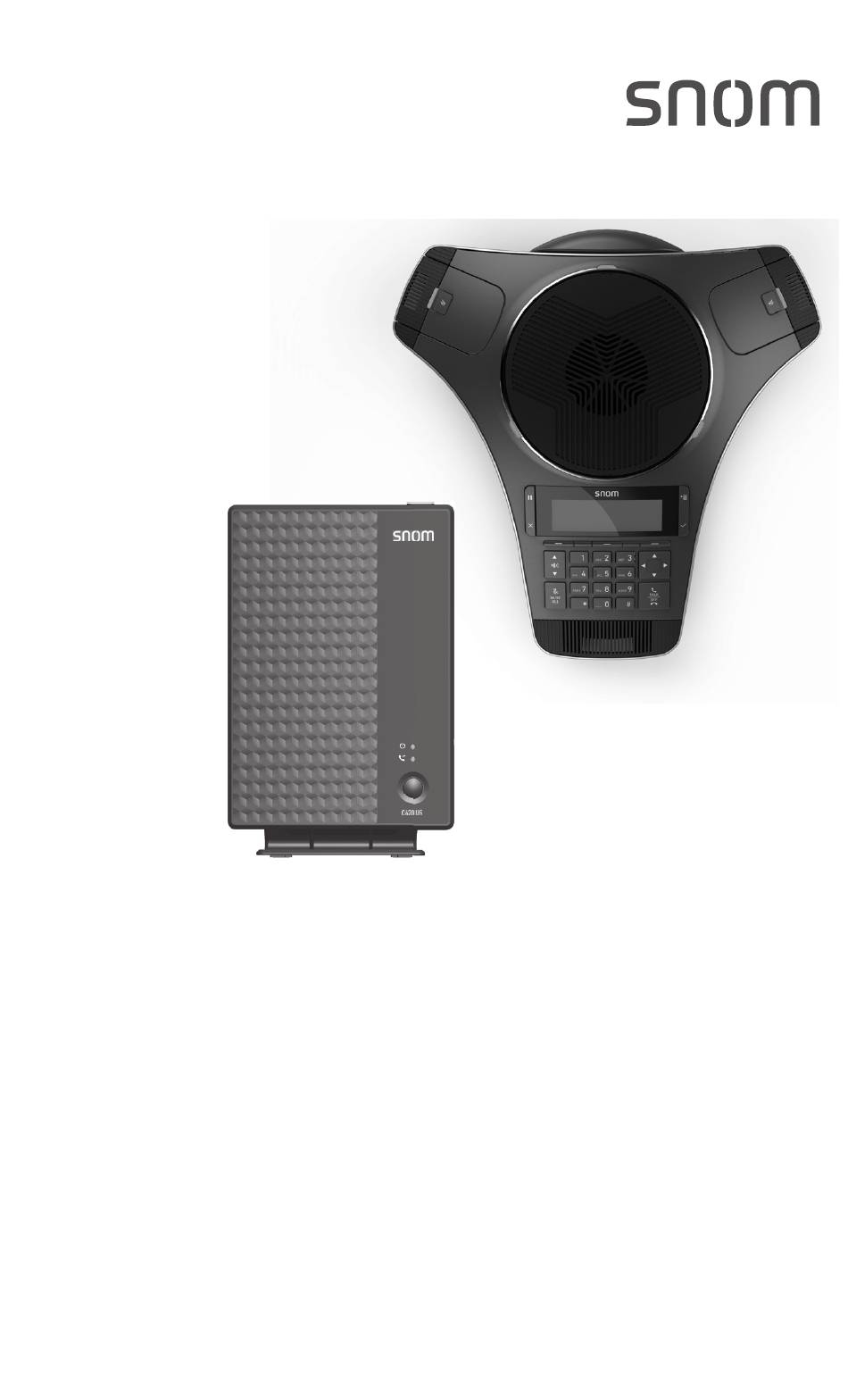

- Page 1 C620 SIP Wireless Conference Phone Quick Installation Guide...
-
Page 2: Table Of Contents
Quick Installation Guide C620 SIP Wireless Conference Phone Table of Contents Important Battery Information Charging and Discharging, Storage �����������14 Copyright, Trademarks, Legal Disclaimers Disposal of the device and batteries ��������14 Cleaning ������������������������������������������������������������������14 Parts checklist Important Safety Information Status Indicators Overview Important safety instructions ����������������������15... -
Page 3: Copyright, Trademarks, Legal Disclaimers
Copyright, Trademarks, Legal Disclaimers © 2020 Snom Technology GmbH� All Rights Reserved� Snom, the names of Snom products, and Snom logos are trademarks owned by Snom Technology GmbH� All product specifications are subject to change without notification� Snom Technology GmbH� reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact�... -
Page 4: Parts Checklist
Charging Dock Ethernet cable Screwdriver Base Station C620 Mickey Law | 22. Jan. 2019 | Revision 1.2 AW / SNOM C620 US Cordless base Quick Installation DC 12V 3A round jack DC 5V 800mA power adapter for power adapter for... -
Page 5: Status Indicators Overview
Steady Green during a call� • Steady Red when a call is muted, or if there are new messages� AW | Snom C620 SpeakerBox Mickey Law | 27.Mar.2019 | Revision 1.5 Incoming Call • Flashes Green quickly when there is an incoming call�... -
Page 6: Status Indicators On The Base Station
Paged by base • Flashes Green slowly station DECT Searching • Flashes Red slowly when out of range or not registered� Mode Reset mode • Steady Orange CEC battery • Flashes Red charging testing mode Status indicators on the base station Power LED VoIP LED Power up... -
Page 7: Install The Base Station
Install the base station 1� Plug one end of the Ethernet cable into the Ethernet port on the rear of the base station, and plug the other end of the cable into your network router or switch� 2� If the base station is not using power from a PoE-capable network router or switch: •... -
Page 8: Connect Power To The Conference Phone
The supplied DC 12V 3A round jack power adapter is designed for use only with the C620 conference phone� It is not designed to power other devices� Do not connect the supplied DC 12V 3A round jack power adapter to any other devices�... -
Page 9: Deregister The Conference Phone
Cancel 6� Press � The conference phone displays the following messages: 7� Press � The conference phone displays the following message: 8� On the base station, press and hold the LINK key for 4 seconds� Both LEDs on the base station begin to flash� 9�... -
Page 10: Install The Wireless Mic Battery
Ethernet cable Install the wireless mic battery 1� Plug the battery connector securely into the socket inside the battery compartment� Insert the battery (with the label THIS SIDE UP facing up) into the battery compartment� 2� Slide the battery door until it clicks into place� 3�... -
Page 11: Register The Wireless Mics To The Base
Register the wireless mics to the base Your wireless mics are pre-registered to the base station� If you need to manually re-register the wireless mics, follow these steps: 1� Press (MENU)� 2� Select Status & Settings > User Settings > Registration� 3�... -
Page 12: Technical Specifications
Technical Specifications Connector 1 x RJ45 (Ethernet) - LAN Ethernet 10/100 MB Power Base Unit Power over Ethernet (PoE): IEEE 802�3af, Class requirements If PoE not available: Power adapter (included in delivery): S006AKU0500080 Input: 100-240V AC 50/60Hz Output: 5�0V DC @ 800mA Conference Battery: (BT200660) 7�2V 4000mAh Ni-MH Phone... -
Page 13: California Energy Commission (Cec) Battery Charging Testing Instructions
The detachable wireless microphones of this product use rechargeable 2�4V 400mAh Ni-MH batteries� The conference phone uses rechargeable 7�2V 4000mAh Ni-MH batteries� Use only the batteries that came with the product or contact Snom if you need replacement batteries� Contact information is available at www�snomamericas�... -
Page 14: Charging And Discharging, Storage
• The batteries can be charged and discharged hundreds of times, but they will eventually wear out� Contact Snom if you need to replace the batteries� Contact information is available at www�snomamericas�com� • If left unused, a fully charged battery will lose its charge over time�... -
Page 15: Important Safety Information
Important safety instructions When using your C620 SIP Wireless Conference phone, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1�... - Page 16 There is a remote risk of electric shock from lightning� 16� Do not use the C620 SIP Wireless Conference phone to report a gas leak in the vicinity of the leak� Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the wireless mic is replaced in its cradle�...
-
Page 17: Battery
23� CAUTION: Use only the batteries indicated in this manual� There may be a risk of explosion if a wrong type of battery is used� Use only the supplied rechargeable battery or replacement battery pack� Do not dispose of batteries in a fire� They may explode�... -
Page 18: For C-Ul Compliance Only
Mesures de sécurité importantes Vous devez toujours observer des mesures de précaution lorsque vous utilisez le Téléphone de conférence à protocole d’initialisation de session SIP C620, afin d’éviter les risques d’incendie, d’électrocution et de blessures, incluant ce qui suit : 1�... - Page 19 13� Ne surchargez pas les prises de courant et les rallonges� 14� Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de Snom dans les cas suivants : A� Lorsque le cordon d’alimentation est endommagé ou écorché�...
- Page 20 16� N’utilisez pas le Téléphone de conférence à protocole d’initialisation de session SIP C620 pour rapporter une fuite de gaz à proximité de la fuite� En certaines circonstances, une flammèche pourrait être provoquée lorsque l’adaptateur est branché dans une prise de courant ou lorsque le microphone auxiliaire est déposé...
-
Page 21: À Propos Des Microphones Sans Fil
Pile • MISE EN GARDE : N’utilisez que la pile incluse� • Ne jetez pas la pile au feu� Vérifiez les instructions spécifiques de mise aux rebus auprès des autorités locales� • N’ouvrez pas et ne mutilez pas la pile� L’électrolyte qui s’en échapperait est corrosif et pourrait causer des brûlures ou des blessures aux yeux ou à... -
Page 22: Compliance
contrôlée par un interrupteur mural� Les appels ne pourront pas être effectués du téléphone conférence sans fil si le socle est débranché ou mis hors tension ou si le courant est interrompu� • Possibilité d’interférences aux téléviseurs: Certains microphones sans fil sans fil fonctionnent sur des fréquences pouvant causer des interférences aux téléviseurs et aux magnétoscopes�... -
Page 23: Industry Canada
Caution: To maintain the compliance with the FCC’s RF exposure guideline, place the base unit at least 20 cm from nearby persons� The C620 base station has been tested and meets the FCC RF exposure guidelines when used with the accessories supplied or designated for this product� Use of other accessories may not ensure compliance with FCC RF exposure guidelines�... - Page 24 VTECH COMMUNICATIONS, INC� Tigard, Oregon 97223, USA� Copyright © 2020 Snom Technology GmbH� All Rights Reserved� v2020006 Version 01/20...
