Summary of Contents for Fimap BMg Sanitizer

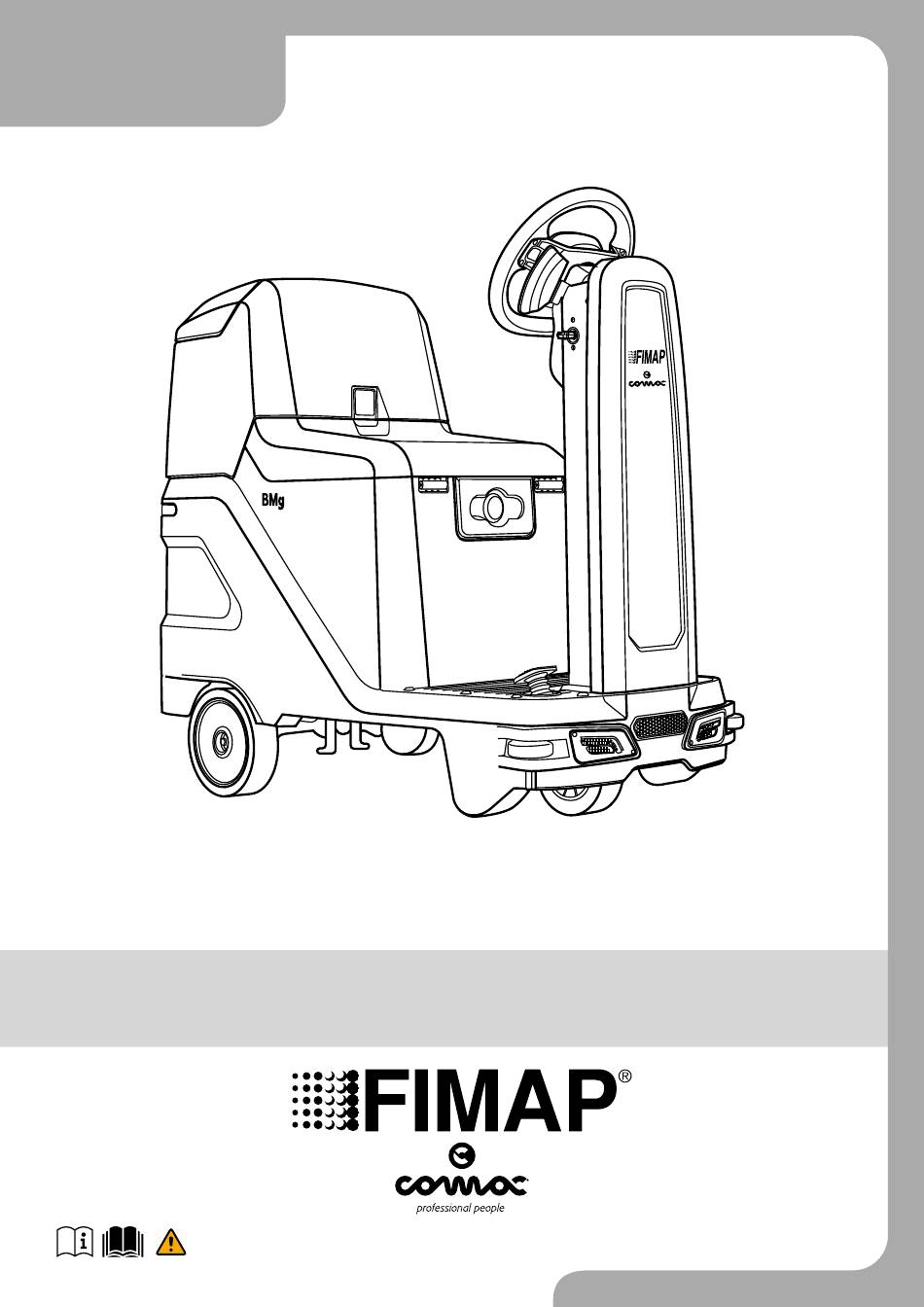

- Page 1 Sanitizer USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTION DOC. 10095868 - Ver. AA - 03-2020...
-
Page 3: Table Of Contents
CONTENTS CONTENTS ...........................3 GENERAL SAFETY REGULATIONS ...................4 LOCATION OF THE MAIN MACHINE COMPONENTS .............11 GENERAL DESCRIPTION ......................12 SYMBOLS USED IN THE MANUAL ........................12 DEFINITION OF LEVELS OF WARNING ......................12 PURPOSE AND CONTENT OF THE MANUAL ..................... 13 TARGET GROUP ..............................13 PRESERVATION OF THE USER ........................... -
Page 4: General Safety Regulations
GENERAL SAFETY REGULATIONS The following symbols are used to indicate any potentially hazardous situations. Always read this information carefully and take the necessary precautions to protect any people and/or objects that may be present. Operator cooperation is paramount for accident prevention. No accident prevention programme can be effective without the full cooperation of the person directly responsible for the machine's operation. - Page 5 • Avoid contact with the battery acid. • Keep all metal objects away from the batteries. • Use a non-conductive device for removing the battery. • Use a hoist and suitable equipment when lifting the batteries. • The battery must be installed by qualified personnel. •...
- Page 6 • Keep the battery charger's cable at a safe distance from any hot surfaces. • Never smoke in the machine's vicinity while the batteries are charging. • Carefully read the user manual of the battery charger you want to use before recharging.
- Page 7 ATTENTION: • Children must be supervised to ensure they do not play with the machine. • During the working of the machine, pay attention to other people and especially to children. • Read the labels on the machine carefully. Do not cover them for any reason, and replace them immediately if they become damaged.
- Page 8 DEACTIVATION OF THE MACHINE WARNING: • Always protect the machine against sunlight, rain, and other atmospheric agents, both while it is stationary and while it is in function. Store the machine in a dry, sheltered place: this machine is only designed for use under dry conditions, and must not be used or stored outdoors under humid conditions.
- Page 9 • Lift the machine with equipment that can sustain the weight to be lifted. • Never tamper with the machine's protection devices for any reason; always follow the supplied routine maintenance instructions scrupulously. • If any parts need to be replaced, always request ORIGINAL spare parts from an authorized Dealer or Retailer.
- Page 10 RIDE-ON MACHINES WARNING: • Do not use the machine in areas where there is a risk of falling objects, unless the machine is equipped with an overhead guard (optional). • To place the machine on the transport vehicle use a pulley. Do not drive the machine on or off a truck or trailer.
-
Page 11: Location Of The Main Machine Components
LOCATION OF THE MAIN MACHINE COMPONENTS The machine's main components are the following: 12. Horn button. 13. Spray kit control button. 1. Front working lights. 14. Steering wheel. 2. Blinking light. 15. Reverse gear selection lever. 3. Recovery tank rotation stop lever. 16. -
Page 12: General Description
GENERAL DESCRIPTION The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law. -
Page 13: Purpose And Content Of The Manual
TECHNICAL DESCRIPTION The BMg Sanitizer is a machine designed for the sanitization of floors which sprays special sanitizing products in areas with heavy footfall, thus reducing the presence of pathogenic material as it moves forwards. The machine must only be used for this purpose. -
Page 14: Serial Number Plate
SERIAL NUMBER PLATE The serial number plate is located at the rear of the steering column, and indicates the machine's general characteristics, including its serial number. The serial number is a very important piece of information and should always be provided together with any request for assistance or when purchasing spare parts. -
Page 15: Labels Used On The Machine
Symbol for maximum temperature for filling the solution tank: Applied to the left-hand side of the machine's solution tank to indicate the maximum temperature of the water that can be used to safely fill the solution tank. Solution tank filling symbol: Located on the left side of the machine's solution tank to indicate the amount of sanitizing solution in the tank. -
Page 16: Control Display
CONTROL DISPLAY The control display is divided in: 1) Battery charge level symbol, see paragraph “BATTERY CHARGE LEVEL INDICATOR” on page 2) Machine hours of use (expressed in a numerical value), see paragraph “HOUR METER” on page 3) Battery charge percentage (expressed in a numerical value, see paragraph “BATTERY CHARGE LEVEL INDICATOR”... -
Page 17: How To Move The Machine
HOW TO MOVE THE MACHINE To transport the machine safely, proceed as follows: DANGER: before starting any task, make sure the current regulations concerning the safe transport of dangerous substances are scrupulously observed. 1. Make sure the solution tank is empty. If it isn't, empty it completely. See paragraph “EMPTYING THE SOLUTION TANK” on page 23. 2. -
Page 18: Inserting The Batteries Into The Machine
The batteries must be charged prior to first use, and whenever they no longer provide sufficient power to perform the desired work. ATTENTION: The control board and the battery charger, if present on-board, are set for lead - acid batteries, contact the nearest FIMAP assistance centre to modify the setting if you want to use gel batteries. -
Page 19: Filling The Solution Tank With Water
ATTENTION: park the machine in an enclosed place, on a flat and level surface; near the machine there must be no objects that could either damage it, or be damaged through contact with it. DANGER: the room used to recharge the batteries must be adequately ventilated to prevent the accumulation of gases that leak from batteries. -
Page 20: Sanitizing Solution
The solution tank can be filled with water in two different ways: • Removing the cap/measuring device (9) and filling the solution tank by means of a rubber hose or a bucket (Fig.11). • Using the filler hose (10) (Fig.12), which supports the water hose on its own. In this case, be sure to remove the cap/measuring device (9) in order to allow the air to vent properly. -
Page 21: Starting Work
STARTING WORK To start working, proceed as follows: 1. Carry out all the checks listed in the chapter “PREPARING TO WORK” on page 20. 2. Sit on the driver’s seat. 3. Insert the key (1) into the main switch on the control panel. Set the main switch to "I" by turning the key a quarter turn clockwise (Fig.1). 4. -
Page 22: Buzzer
N.B.: If the machine is placed in reverse gear during sanitization, the pump in the machine's water system will stop delivering the product into the machine's water circuit. N.B.: If the machine is placed in reverse gear during sanitization, the compressor in the machine will continue to function. BUZZER The machine is equipped with a buzzer. -
Page 23: Routine Maintenance
ROUTINE MAINTENANCE Before carrying out any routine maintenance operations, proceed as follows: 1. Take the machine to the maintenance area. WARNING: the place designated for this operation must comply with current regulations concerning safety at work and current environmental protection regulations. 2. -
Page 24: Troubleshooting
TROUBLESHOOTING This chapter lists the most common problems linked with the use of the machine. If you are unable to resolve the problems with the information given here, please contact your nearest assistance centre. PROBLEM POSSIBLE CAUSE SOLUTION THE MACHINE Make sure that the main switch is in the "I"... -
Page 25: Ec Declaration Of Conformity
37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products MACHINE FOR SANITIZING FLOORS COMAC-FIMAP mod. BMg Sanitizer CB comply with the requirements of the following Directives: • 2006/42/EC: Machinery Directive. • 2014/35/EU: Low Voltage Directive. - Page 26 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products MACHINE FOR SANITIZING FLOORS COMAC-FIMAP mod. BMg Sanitizer CB comply with the requirements of the following Directives: • 2006/42/EC: Machinery Directive. • 2014/35/EU: Low Voltage Directive.
- Page 28 FIMAP S.p.A. - Via Invalidi del Lavoro, 1 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 6060411 - Fax +39 045 6060417 - E-mail: fimap@fimap.com www.fimap.com...
