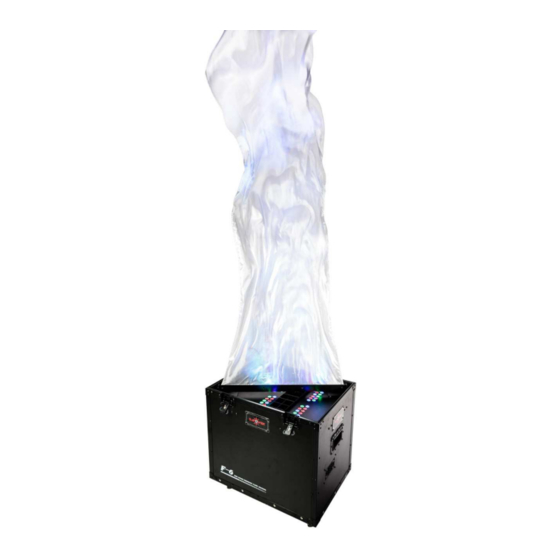

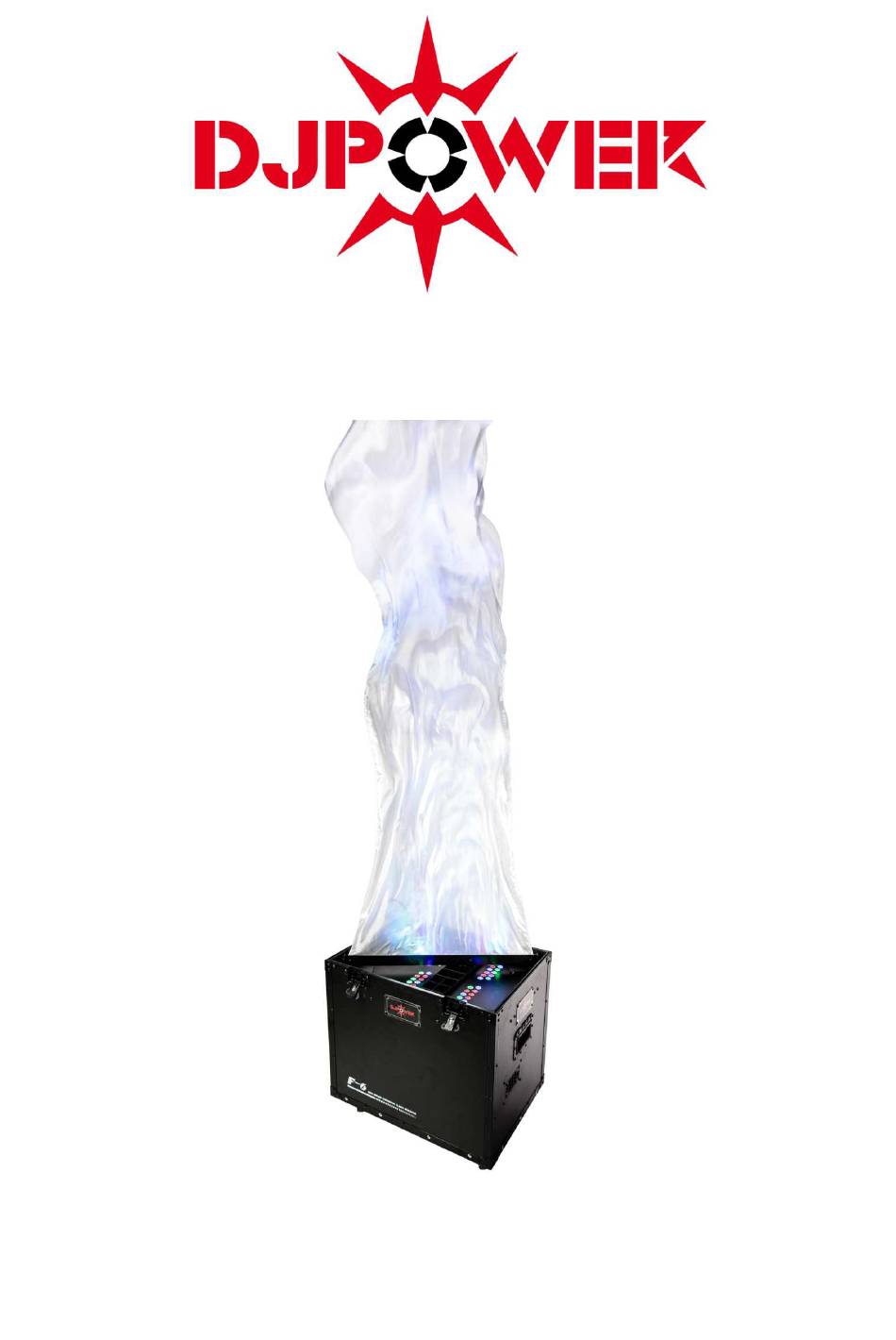

- Page 1 Manual LED Flame Light F-6...
- Page 2 Table of content Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Introduction ............................5 2.1. Unpacking ..........................5 2.2. Overview ..........................5 Control .............................. 6 3.1. Display ............................. 6 3.2. DMX chart ..........................6 Technical data ..........................7 2 / 8...
- Page 3 1. Safety instructions • This device is suitable for indoor use (not outdoors) only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •...
- Page 4 Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards.
- Page 5 Open the shipping packing and check whether all necessary accessories to operate the unit have arrived complete and intact. If you recognize any defects do not connect the unit to power supply system and contact your dealer. 1 x LED Flame Light F-6 1 x White silk 1 x Power cable 1 x Manual 2.2.
- Page 6 3. Control 3.1. Display By pressing MENU you get into the menu. With „Addr“you can set the DMX address by pressing UP/DOWN. If you operate the device without you have two more possibilities for setting. „LED&FAN CONTROL“ Switch on the LEDs and Fan „LED COLOR SETTING2 Choose one of seven preset colors.
- Page 7 4. Technical data Power supply Voltage 220-240V/50-60Hz Power consumption max. 1500 W Light source LM Type LED 3in1 RGB 3W Color spectrum Power 144W Controlling Automatic DMX512 7 channels Hardware Protection class IP20 Skill Indoor Measurements (LxBxH) 735x550x730mm Weight 57,2kg 7 / 8...
- Page 8 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad info@bkbraun.com 8 / 8...
