DOREL ASIA

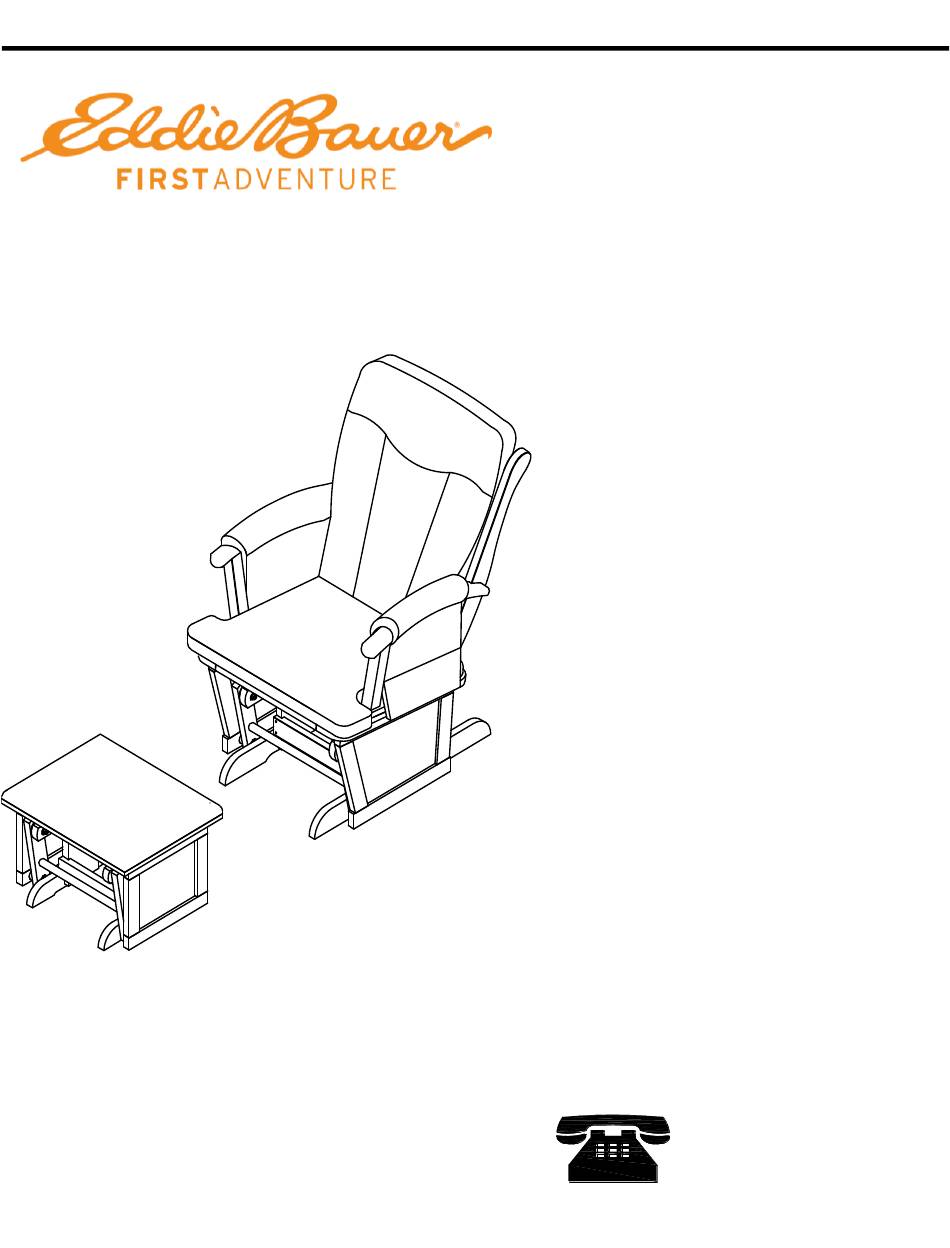

Langley Wood Glider & Ottoman
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
TG6292DR (Walnut)
TG6292W (White)
TG6292DR 0-65857-16305-6
TG6292W 0-65857-16317-9
TG6292DR 030-09-0475
TG6292W 030-09-1161
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASS
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN
E-MAIL:DAS@DO
Model No:
UPC CODE:
DPCI#:
Lot number:
Advertisement
Table of Contents
Related Manuals for Dorel Asia Eddie Bauer Langley TG6292DR
Summary of Contents for Dorel Asia Eddie Bauer Langley TG6292DR
- Page 1 DOREL ASIA Model No: TG6292DR (Walnut) TG6292W (White) Langley Wood Glider & Ottoman UPC CODE: TG6292DR 0-65857-16305-6 TG6292W 0-65857-16317-9 DPCI#: TG6292DR 030-09-0475 TG6292W 030-09-1161 Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
Langley Wood Glider & Ottoman TG6292DR / TG6292W HARDWARE LIST Ø1/4'' X 1-1/2'' Ø1/4'' X 1-3/4'' Ø1/4'' X 1/2'' SHORT BOLT LONG BOLT SPRING WASHER 7 PCS 2 PCS 9 PCS Ø1/4'' X 1/2'' BARREL NUT ALLEN KEY 2 PCS 1 PC... -
Page 4: Parts List
Langley Wood Glider & Ottoman TG6292DR / TG6292W PARTS LIST GLIDER BASE BACK FRAME RIGHT ARMREST 1 PC 1 PC 1 PC ARM CUSHION LEFT ARMREST OTTOMAN ( LEFT AND RIGHT ) 1 PC 1 PC 2 PCS SEAT CUSHION BACK CUSHION 1 PC 1 PC... - Page 5 Langley Wood Glider & Ottoman TG6292DR / TG6292W STEP 1 Attach back frame (B) to glider base (A) with short bolts (1) and spring washers (3). Use Allen key (5) to tighten short bolts. Note: Leave the bolts loose to facilitate assembly in following step. 3 PCS 3 PCS...
- Page 6 Langley Wood Glider & Ottoman TG6292DR / TG6292W STEP 2 Attach the armrests (C & D) to glider base (A) with short bolts (1) and spring washers (3). Attach the armrests (C & D) to back frame (B) with long bolts (2), spring washers (3) and barrel nuts (4).
- Page 7 Langley Wood Glider & Ottoman TG6292DR / TG6292W STEP 3 Attach arm cushions (F) to armrests (C & D) by snapping the bottons located on glider base (A) and under armrests (C & D). Attach back cushion (H) to back frame (B). Place seat cushion (G) onto glider base (A).
- Page 8 1-800-295-1980 E-Mail: das@dorel.com DO NOT RETURN PR Fax #: 514-353-7819 E-MAIL:DAS@DORE Dorel Asia is an authorized licensee of Eddie Bauer Licensing Services LLC. Eddie Bauer® and the Eddie Bauer logos are the registered trademarks of Eddie Bauer Licensing Services LLC.
-
Page 9: Customer Service
MODEL #: TG6292DR / TG6292W Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819 Request Date: Name:...
