DOREL ASIA

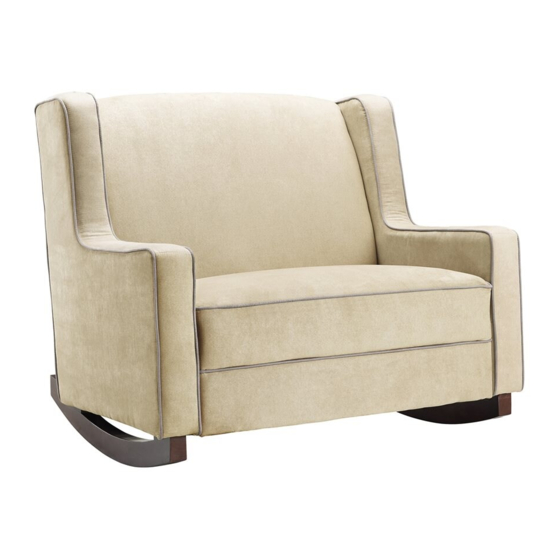

DOUBLE ROCKER
WM6094
WM6094-DO
INFORMATION. PLEASE READ AND
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
WM6094 (Cocoa)
WM6094-DO (Doe)
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Model No:
UPC CODE:
0-65857-16299-8
0-65857-16686-6
NOTE:
Lot number:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia WM6094-DO
Summary of Contents for Dorel Asia WM6094-DO

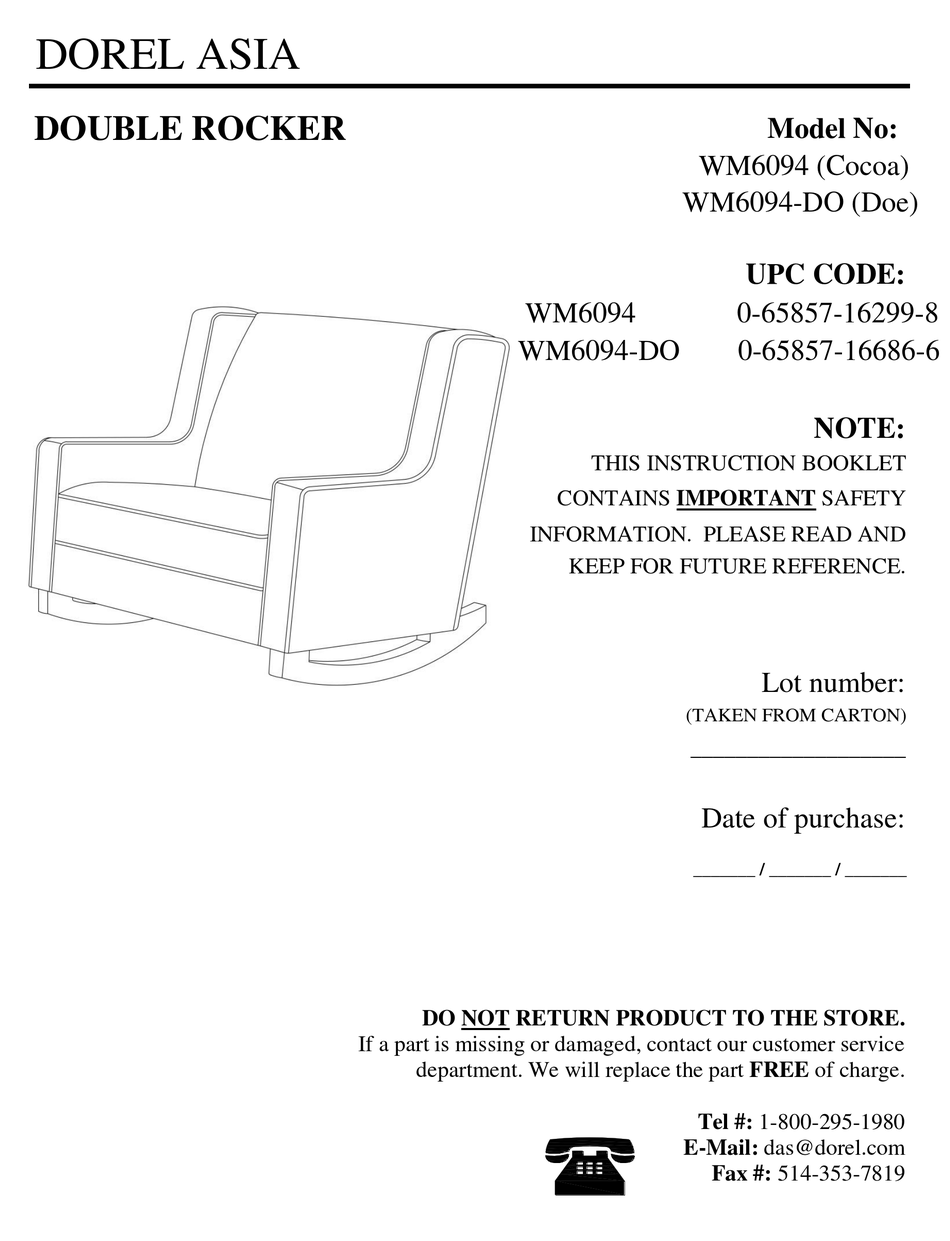

- Page 1 DOREL ASIA DOUBLE ROCKER Model No: WM6094 (Cocoa) WM6094-DO (Doe) UPC CODE: WM6094 0-65857-16299-8 WM6094-DO 0-65857-16686-6 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ___________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
DOUBLE ROCKER WM6094 / WM6094-DO HARDWARE LIST Ø5/16" X 70mm Ø22 X 1.8mm Ø12.5 X 1.2mm HEX SOCKET HEAD BOLT FLAT WASHER SPRING WASHER 14 PCS 14 PCS 14 PCS Ø5/16" X 90mm Ø19 X 1.8mm HEX SOCKET HEAD BOLT... - Page 4 DOUBLE ROCKER WM6094 / WM6094-DO STEP 1: Place chair back (B) on a clean, smooth surface. Pull back the fabric lining on seat base (A). Attach seat base (A) to chair back (B) with flat washers (2), spring washers (3) and hex socket head bolts (1). Use Allen key (6) to tighten the bolts.
- Page 5 DOUBLE ROCKER WM6094 / WM6094-DO STEP 2: Attach left arm (C) to chair back (B) by inserting the metal bracket on left arm (C) into the metal glide on chair back (B). Push the left arm (C) with a downward force to secure it into place.
- Page 6 DOUBLE ROCKER WM6094 / WM6094-DO STEP 3: With the help of another person, gently place the unit on chair back (B) and pull back the fabric lining underneath seat base(A). Secure left arm (C) and right arm (D) to seat base (A) with flat washers (2), spring washers (3) and hex socket head bolts (1).
- Page 7 DOUBLE ROCKER WM6094 / WM6094-DO STEP 4: Pull back the lower fabric lining underneath chair back (B). Secure left arm (C) and right arm (D) to chair back (B) with flat washers (2), spring washers (3) and hex socket head bolts (1). Use Allen key (6) to tighten the bolts.
- Page 8 DOUBLE ROCKER WM6094 / WM6094-DO STEP 5: With the help of another person, gently turn the unit upside down. Attach legs (E) to arms (C & D) with flat washers (5) and hex socket head bolts (4). Use Allen key (6) to tighten the bolts.
- Page 9 DOUBLE ROCKER - WESTSIDE COCOA WM6094 / WM6094-DO CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 10: Customer Service
MODEL #: WM6094 / WM6094-DO Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
