Dorel Asia DA7229W Instruction Booklet

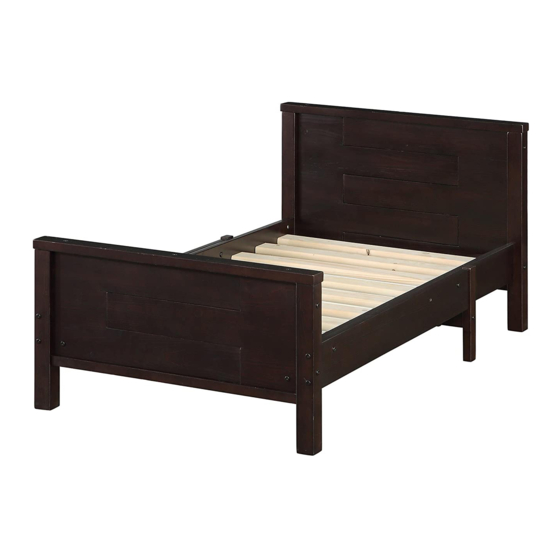

Baby relax toddler to twin convertible bed 0-65857-16948-5; 0-65857-16947-8
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOREL ASIA
MODEL NO:
DA7229W (WHITE)
DA7229E (ESPRESSO)
Toddler to Twin
UPC CODE:
Convertible Bed
0-65857-16948-5
WHITE
0-65857-16947-8
ESPRESSO
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
LOT NUMBER:
(TAKEN FROM CARTON)
DATE OF PURCHASE:
______ / ______ / ______
NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, Contact our
customer service department. We will
replace the part FREE of charge.
Tel # : 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA7229W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Asia DA7229W

Summary of Contents for Dorel Asia DA7229W

  • Page 1 DOREL ASIA MODEL NO: DA7229W (WHITE) DA7229E (ESPRESSO) Toddler to Twin UPC CODE: Convertible Bed 0-65857-16948-5 WHITE 0-65857-16947-8 ESPRESSO NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. LOT NUMBER: (TAKEN FROM CARTON) DATE OF PURCHASE: ______ / ______ / ______ NOT RETURN PRODUCT TO THE STORE.
  • Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
  • Page 3 Check bolts periodically and tighten if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 4 Toddler to Twin Convertible Bed DA7229W / DA7229E HARDWARE LIST Φ 1/4" x 90mm Φ 1/4" x 45mm BOLTS BOLTS 22 PCS 14 PCS Φ 1/4" x 32mm Φ 11.8mm x 15mm BOLTS BARREL NUT 8 PCS 12 PCS Φ 8mm x 30mm Φ...
  • Page 5 Toddler to Twin Convertible Bed DA7229W / DA7229E PARTS LIST HEADBOARD POST FOOTBOARD POST HEADBOARD PANEL 2 PCS 2 PCS 1 PC HEADBOARD PANEL FOOTBOARD PANEL FOOTBOARD PANEL 1 PC 1 PC 1 PC...

  • Page 6: Parts List

    Toddler to Twin Convertible Bed DA7229W / DA7229E PARTS LIST TWIN BED TOP RAIL TWIN BED BOTTOM RAIL TODDLER BED TOP RAIL 2 PCS 2 PCS 2 PCS TODDLER BED BOTTOM RAIL SHORT SIDE RAIL SHORT SIDE RAIL 2 PCS...
  • Page 7 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 1 Slide headboard panel (C ) into headboard panel (D). Make sure the raised edges go into the grooves on headboard panels ( C & D). Secure the headboard panels (C & D) using bolts (7) and hex key (10) as shown Attach the toddler bed top rail (I) and toddler bed bottom rail (J) to the headboard panels (C &...
  • Page 8 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 2 Slide footboard panel (E ) into footboard panel (F). Attach the footboard panels (E & F) using bolts (7) and hex key (10). Attach the toddler bed top rail (I) and toddler bed bottom rail (J) to the footboard panels (E &...
  • Page 9 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 3 Insert wood dowels (8) into the holes of the headboard panels (C & D) and footboard panels (E & F). Attach headboard posts (A) to the headboard panels (C & D) and footboard posts (B) to...
  • Page 10 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 4 Insert barrel nuts (4) into both ends of the short side rails (K & L). Attach short side rails (K & L) to support posts (R) and footboard posts (B) using bolts (1) and hex key (10) as shown.
  • Page 11 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 5 Attach the short crosspieces (O) to long crosspiece (P) using hex caps (6), bolts (3) and hex key (10) as shown below. Attach the short crosspieces (O) to the support posts (R) using bolts (2) and hex key (10).
  • Page 12 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 6 Attach the support bars (S) to the footboard panels (E & F) using bolts (2), and to short crosspieces (O) using bolts (1) as shown. Use hex key (10) to tighten all bolts.
  • Page 13 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 7 Insert barrel nuts (4) into ends of the long side rails (M & N). Attach the long side rails (M & N) to headboard posts (A) with bolts (1) and hex key (10).
  • Page 14 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 8 Insert wood dowels (5) into ends of the toddler bed slats (Q) as shown. Insert the toddler bed slats (Q) between long side rails (M & N). Ensure the wood dowels (5) go into the holes on long side rail (M & N).
  • Page 15 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 9 Place the headboard assembly (with the long side rails and slats) over the footboard assembly (with the short side rails and crosspieces). Attach the long side rails (M & N) to the short side rails (K & L) using bolts (3) and hex caps (6) as shown below with hex key (10).
  • Page 16 Toddler to Twin Convertible Bed DA7229W / DA7229E TWIN BED CONVERSION The patent pending design of the Baby Relax convertible bed allows you to transform your toddler bed into a twin size bed! Carefully follow the following steps to convert your bed.
  • Page 17 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 10 Loosen the bolts (2) to remove the top and bottom rails (I & J) from the headboard and footboard with hex key (10).
  • Page 18 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 11 Remove bolts (7) from the headboard panels (C & D) and footboard panels (E & F) using hex key (10). Detach long crosspiece (P) from short crosspieces (O) by removing bolts (3) and hex caps (6) using hex key (10).
  • Page 19 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 12 Slide the 2 halves of the bed so that the holes in long crosspiece (P) align with the holes in the 2 short crosspieces (O), as shown below. Attach long crosspiece (P) to short crosspieces (O), using bolts (3) and hex caps (6).
  • Page 20 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 13 Remove bolts (3) and hex caps (6) from the short and long side rails (K & M) and (L & N) with hex key (10) as shown below. Extend the short and long side rails (K & M) and (L & N) to the length of a twin size...
  • Page 21 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 14 Align the holes in short side rail (K) with long side rail (M) and short side rail (L) with long side rail (N), and use bolts (3) and hex caps (6) to attach them together. Use hex key (10) to tighten the bolts.
  • Page 22 Toddler to Twin Convertible Bed DA7229W / DA7229E STEP 15 Attach the twin bed slats to the assembled frame with flat screws (9) as shown below using a Philips head screwdriver (not included). NOTE: Make sure that the slats at both ends are attached as close to the headboard/ footboard as possible.
  • Page 23 Toddler to Twin Convertible Bed DA7229W / DA7229E CAUTION This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

  • Page 24: Customer Service

    MODEL #: DA7229W / DA7229E Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...

This manual is also suitable for:

Da7229e
