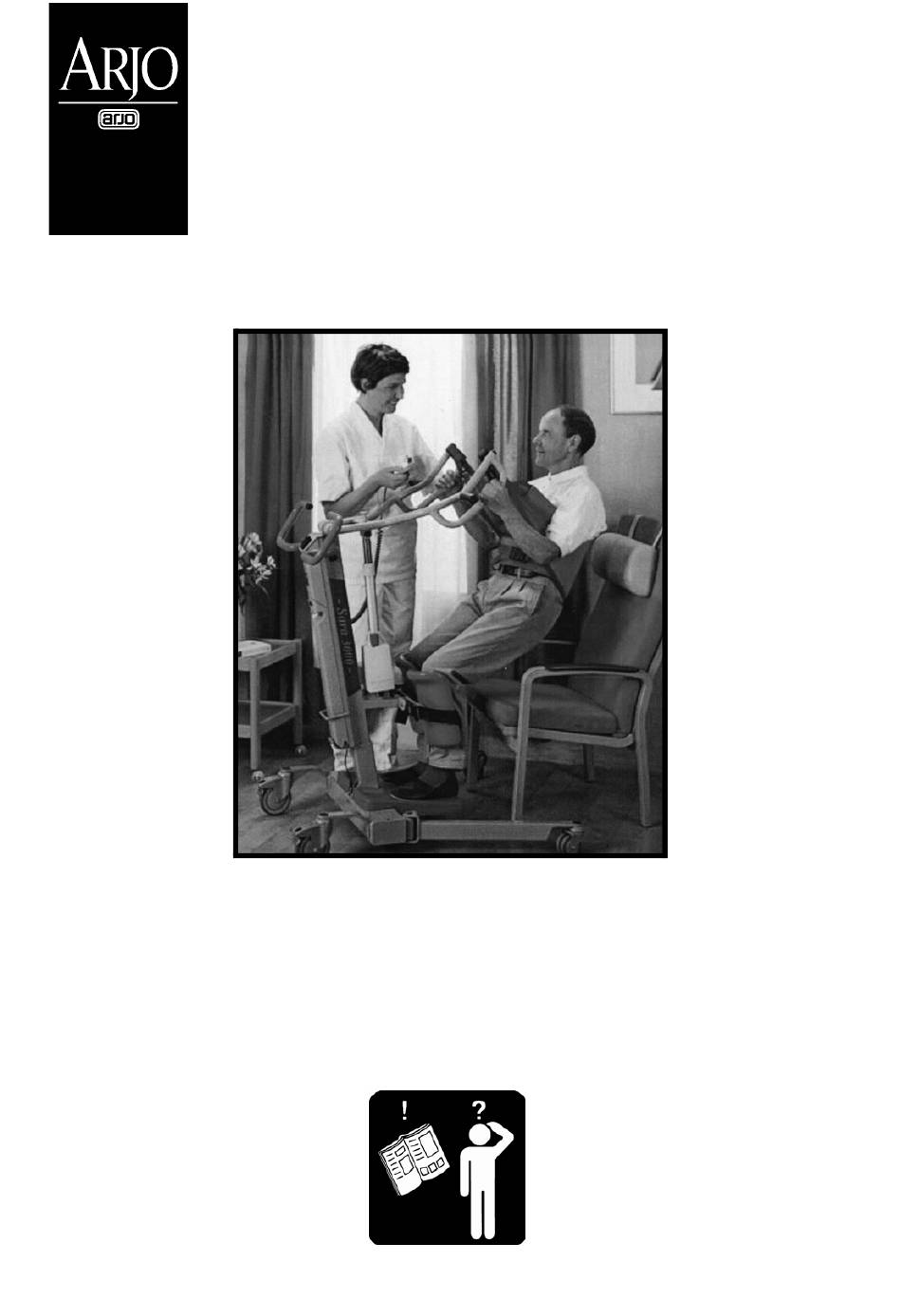

- Page 1 Sara 3000 Operating and Product Care Instructions KKX 81010-US Issue 1 June 2003...
- Page 2 The ARJO Company’s Conditions of Sale make specific provision confirming no liability in such circumstances. “Sara 3000” is a trademark of the ARJO Group.
-
Page 3: Table Of Contents
Foot Support Lower Leg Straps Adjustable Width Chassis Legs Using Your Sara 3000 ......... 9-12 Using the Sara 3000 for Toileting and Transporting ..........9 Standing Sling ........... 10 Battery Charging ........13-14 Care of Your Sara 3000 ......15-16 General Lift Care........ -
Page 4: Foreword
The expected life for other consumable products, such as batteries, fuses, lamps, safety belts, padded Your Sara 3000 is one of a series of quality covers, and straps is dependent on the care and products designed especially for hospitals, nursing usage of the equipment concerned. -
Page 5: Safety Instructions
Sara 3000. Sara 3000. Information in the manual is crucial to the proper operation and maintenance of the equipment, and will help protect the product and Warning: Do not overload the Sara ensure that the equipment performs to your 3000 beyond its approved lifting capacity. -

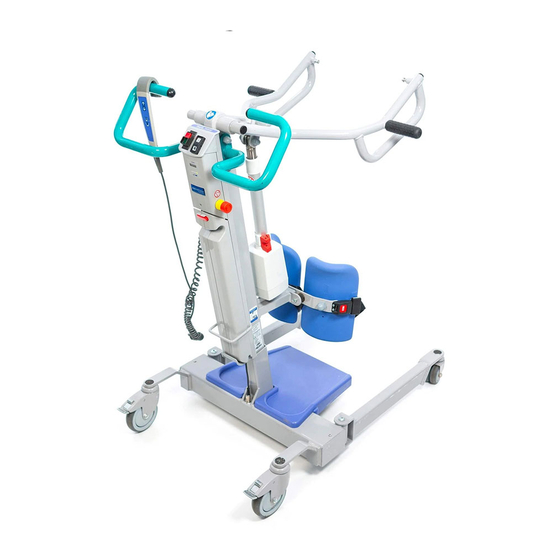

Page 6: Product Description/Function
Product Description/Function Parts referred to in this manual Control Panel Fig. 1 Clip Attachment Points Battery Pack Steering Handgrips Control Handset Motor/Actuator Knee Support Foot Support with Anti-skid Material Rear Castors with Brake Stop Button (red) and Reset Button 10. Dual Up/Down Control 11. -
Page 7: Stop Button (Red)
Sara 3000 raising a weight in excess of one and a half times battery compartment. An electrical connection is the maximum rated load. -
Page 8: System Failure Lower Override
(see Fig. 4), such as when leaving a patient supported by the sling, a provision for lowering has unattended, or to keep the Sara 3000 in position. been made using the “lower override knob” located on the right hand side of the motor/actuator (see Fig. -
Page 9: Using Your Sara 3000
Although a patient can be put into the sling with the Sara 3000 close by, it may be easier to do so with the Sara 3000 moved away. Once the sling has been fitted (see the following... -
Page 10: Standing Sling
Ensure that the support strap is separated and brought loosely around the body, and is not twisted If the Sara 3000 is not already close to the patient, or trapped behind the patient’s back. bring it to the patient as described previously. - Page 11 Using Your Sara 3000 Fig. 10 If possible, the patient should then hold on to the Patient Support grips with one or both hands. The patient is then ready to be lifted. • Note: If the control handset button is released during the lifting or lowering procedure, powered motion will stop immediately.
- Page 12 Sara 3000, but their disabled arm should be held down in front of the body during the lift by the attendant (or a second attendant), while their functioning hand holds the patient support arm in the normal way.
-
Page 13: Battery Charging
To ensure that the Sara 3000 is always ready for use, it is recommended that a fully charged battery pack always be available. Do this by having Fig. - Page 14 Do NOT charge batteries in a sealed container. Ensure the green Reset Button is pressed in. Do NOT place batteries near or dispose of them in The Sara 3000 is now ready for use. a fire. Warnings Do NOT short-circuit a battery.
-
Page 15: Care Of Your Sara 3000
To clean the lift, wipe it down with a damp cloth using warm water to which an appropriate ARJO disinfectant cleaner has been added, such as ARJO Ensure that the battery pack is always fully Clean. -
Page 16: Periodic Testing
Check that the lift can be moved normally, and Caution: If in doubt about the correct ensure that the castors move freely, as they can be operation of the Sara 3000, do not use it clogged by hair and fluff. Also make sure that the contact... -
Page 17: Labels
Labels Fig. 14 Product Name Safe Working Load - 160 kg (350 lb) Battery Information Emergency Stop and Reset Button Identification Battery Discharge Indicator and Hour Meter ARJO logo Attention: Read Operating Instructions... -
Page 18: Technical Specification
Medical Equipment:- type protection against electrical shock in accordance with IEC 601-1) ARJO Patient Handling products meet the requirements of Electromagnetic Compatibility (EMC) as stated in clause 12.5 of the Medical Devices Directive 93/42/EEC. Although compliant with EMC requirements, there is a remote chance that close proximity usage may... - Page 19 Technical Specification Total Length (A) : 1,000 mm Min.Working Height (B) : 930 mm Max. Working Height (C) : 1,730 mm Height Chassis (E) : 115 mm External Width, legs closed (F) : 650 mm Internal Width, legs open (G) : 900 mm Total Height (D) : 1,185 mm...
- Page 20 If your country is not listed here, please contact your local distributor, or ARJO International, Florenzstrasse 1d, Postfach - 4023 Basel, SWITZERLAND. Tel +41 61 337 9797. Fax +41 61 331 4780. FM 21964 ISO 9001 • IS013485 ARJO •...
