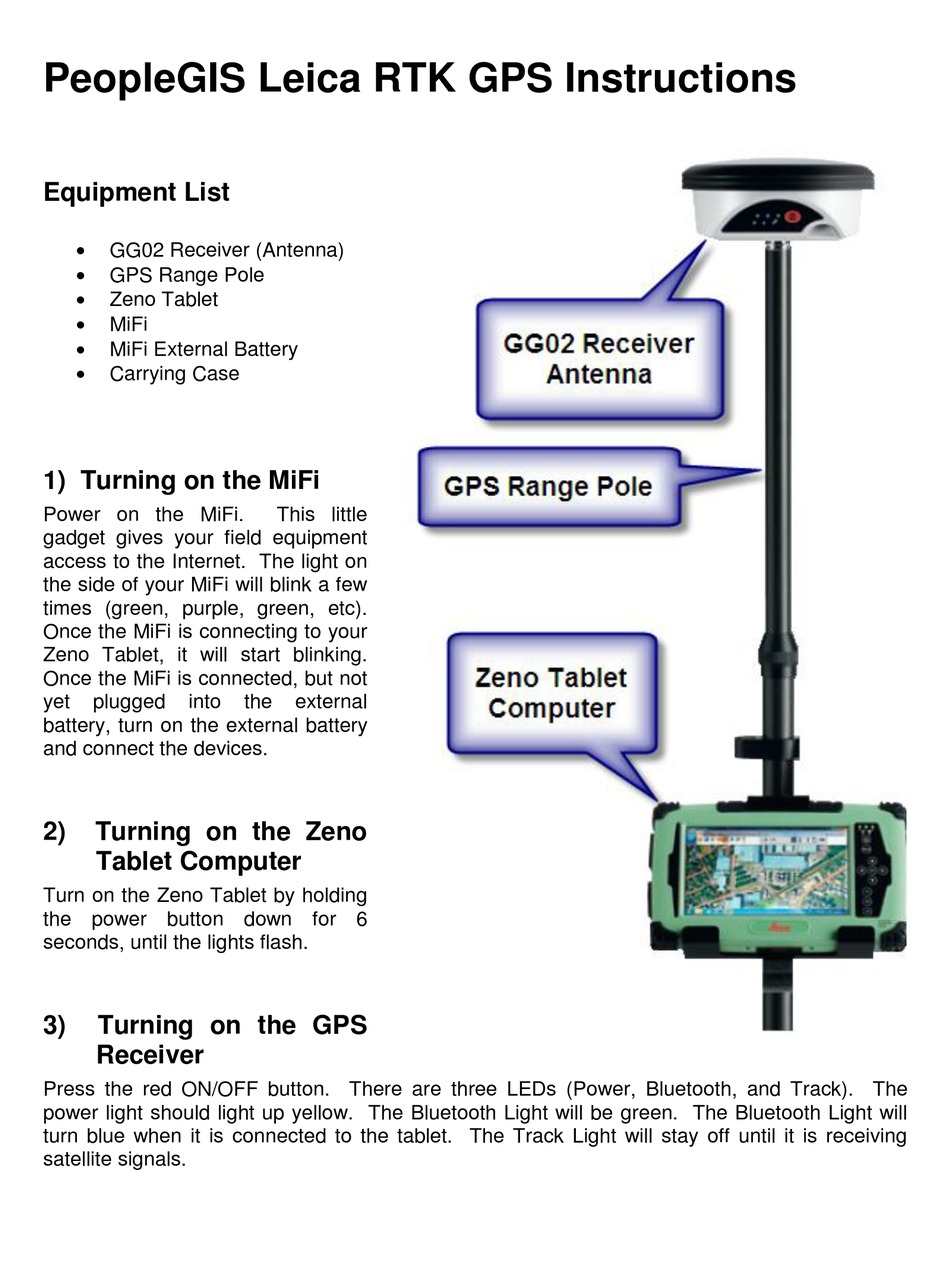

PeopleGIS Leica RTK GPS Instructions
Equipment List
GG02 Receiver (Antenna)
GPS Range Pole
Zeno Tablet
MiFi
MiFi External Battery
Carrying Case
1) Turning on the MiFi
Power on the MiFi.
gadget gives your field equipment
access to the Internet. The light on
the side of your MiFi will blink a few
times (green, purple, green, etc).
Once the MiFi is connecting to your
Zeno Tablet, it will start blinking.
Once the MiFi is connected, but not
yet
plugged
into
battery, turn on the external battery
and connect the devices.
2)
Turning on the Zeno
Tablet Computer
Turn on the Zeno Tablet by holding
the power button down for 6
seconds, until the lights flash.
3)
Turning on the GPS
Receiver
Press the red ON/OFF button. There are three LEDs (Power, Bluetooth, and Track). The
power light should light up yellow. The Bluetooth Light will be green. The Bluetooth Light will
turn blue when it is connected to the tablet. The Track Light will stay off until it is receiving
satellite signals.
This little
the
external
