(resolution in pixels). Graphics, texts and variables to be displayed must properly fit into the display unit. Page 8 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
8 lines are simply not visible at a module with 8 pixel lines. The following example depicts a module with 64 x 16 pixels including three different character heights: Page 10 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
The display unit then tries to connect with the Profinet IO controller. Page 11 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
The input and output data width is speci- fied by means of the configuration via the Profinet controller. Page 12 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
- DAP3 (standard), if the MRP ability of the interface shall be activated. „Drag“ the needed „DAP“ to your Profinet system: Page 13 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 14

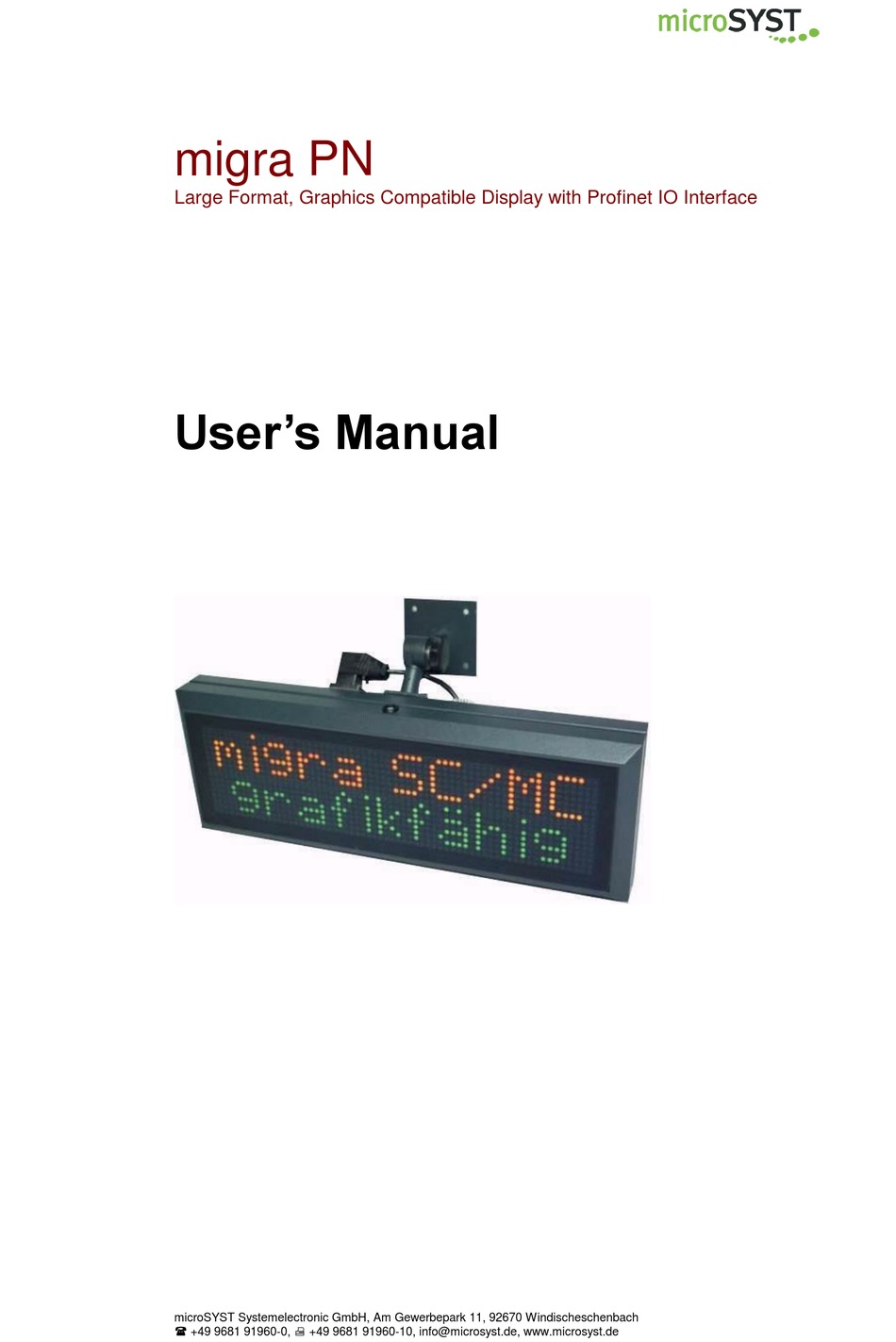

Large Format, Graphics Compatible Display with Profinet IO Interface Consider a meaningful name for the device and rename the interface (here “miface1”) accordingly: Page 14 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 15
Profinet interface and obey that a maximum of 250 output- and 250 input- bytes are allowed. Example: 240 bytes output, 240 bytes input Page 15 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 16
After finishing the Profinet configuration, it must still be loaded into the Profinet controller: „Station/Save and Compile“ „PLC/Download...“ Page 16 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Tip: If you want to find the device of the marked line, you can click on „Flash- ing on“. The LED 1 (green) of the corresponding interface starts to blink then. Page 17 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
PN device must have the matching name. The LED 2 (red) of the interface goes out, as soon as the Profinet connec- tion is established. Page 18 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
As soon as it changes, data of the received frame can be read out (and the next telegram can be sent). Example frames can be found in the chapter “Examples”. Page 19 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
“online character”. As a rule, a pause of „receiving timeout“ + 150 ms between frames is sufficient. Page 20 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
If bit 1 is not set in the FC byte (do not use checksum): End of Text 00000011 End of text: 03 Page 21 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
After power up, the display needs approx. 3 seconds more time (because of synchronization). At querying graphics, the coding of the graphic number can be three-digit or four-digit. Page 22 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
... must be transmitted for position 123 (ASCII characters “1”, “2” and “3.”) Refer to chapter “Displayable Characters” for a table of displayable ASCII characters! Page 24 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Existing character sets are overwritten with the new character sets if a new configuration is uploaded to the display unit! Page 25 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
(from the last “ESC-A” frame)! Black is used if the background colour has been set to transparent! Page 27 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Variable content is stored to RAM only. After the device has been switched off and back on again, the variables are returned to their pre- configured values. Page 28 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Variable positioning is stored to RAM only. After the device has been switched off and back on again, the variables are returned to their pre- configured positions. Page 29 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Decimal Decimal Decimal Value 10000s Value 1000s Value 100s Value 10s Value 1s „+“, „-“ „0“-„9“ „0“-„9“ „0“-„9“ „0“-„9“ „0“-„9“ Page 30 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 31
If the current value is not in the range „MIN-border ... MAX-border“ then a blinking mark will be shown at the MIN- or MAX-border. Page 31 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 32
The background colour used for variables may not be transparent, and a character set with uniform character width should be used in order to assure correct display. Page 32 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
“0” – “9” The perimeter of the rectangle is drawn with the foreground colour. The rectangle is filled with the background colour. Page 34 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
(end line > start line!). Only the last select- ed scrolling range is used! Page 35 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Scrolling range with start line = 50, end line = 80 1. scrolling range: line 50 to 63 2. scrolling range: line 64 to 80 Page 36 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
“2” = red. The transmitted value is multiplied in accordance with the HEX switch settings at the device before it is applied. Page 37 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
The output bits are used to switch the digital outputs (if included). After switching the device on, all outputs are cleared (0). Page 38 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
This sequence can be used as part of a macro, as well as part of a re- ceive message. 3.8.6.3 Stop Macro Execution Byte 1 Byte 2 Function “E” Page 39 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
(“reading out decimal point from the display”, “digital inputs and outputs”). The error code in the response frame always relates to the last partition frame. Page 40 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
=> An “online text” with character set 1, on cursor position x=2, y=3 with foreground colour „yellow“ and background colour „black“ is displayed (blinking). Page 41 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Error Code End of Byte Text Address Address Control text 4. Display is ready for reception of the next frame. Page 42 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
3. Wait for execution of the telegram (duration according to selected function and size of the character/graphics approx. 100 ms). Page 43 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
3. Wait for execution of the telegram (duration according to selected function and size of the character/graphics approx. 100 ms). Page 44 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
3.12.2 Input Level at the Parallel Inputs Level Voltage Range U (low) + 0 to 1.6 V DC U (high) + 18 to 30 V DC Page 45 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Strobe (rising edge, 0 to 1: apply value now) For example, the following assignments are used to display text 12: 16 15 14 13 12 11 10 Page 46 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Strobe (rising edge, 0 to 1: apply value now) For example, the following assignments are used to clear graphic 7: 16 15 14 13 12 11 10 Page 47 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
3 (fourth digit). The inputs must be set up as fol- lows to this end: 16 15 14 13 12 11 10 Page 48 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
The display unit is delivered with the following default settings: Baud rate: 19200 baud Data bits: Parity: even Stop bits: Page 53 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 54
Maximum * Maximum * ‘F’ defined 8 data bits, even parity 3...30 ms *1 Standard settings are marked with “*”. Page 54 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
LED green Normal: Normal with DCP signalling: blinking Hardware error: No Profinet connection: LED 2 red Cyclic Profinet communication runs: Page 55 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 56
*Carriage Return: The cursor jumps to the beginning of the next line. Any Windows character set, as well as any user defined character set, can be used. Page 56 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 57
Observe all notes and instructions included in this user’s manual. Page 57 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 59
“as is”. No guarantee claims may be made in such cases. The General Terms and Conditions of microSYST Systemelectronic GmbH in current version apply as well. Page 59 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
Page 60
01-02-16 Declaration of conformity 2.50 29-04-16 Declaration of conformity 2.60 16-11-17 Change of address Certified per DIN EN ISO 9001. Page 60 microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach +49 9681 91960-0, +49 9681 91960-10, info@microsyst.de, www.microsyst.de...
