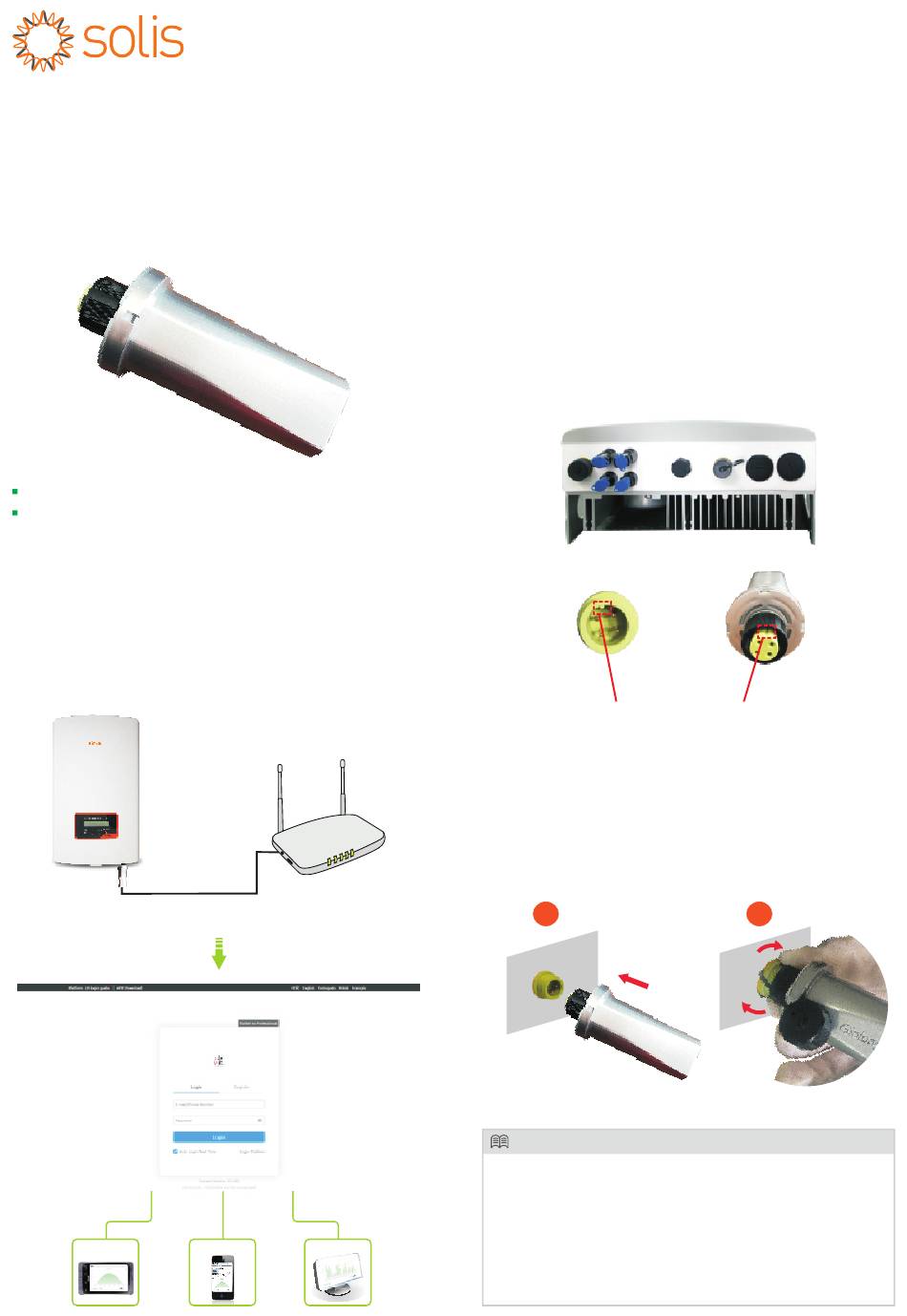

SOLIS DLS Quick User Manual

Data Logger LAN Stick
Quick User Guide
DLS Version: 1.0
Delivery Content
1 pc LAN Stick
1 pc Data Logger LAN Stick Quick User Guide
Introduction
Data Logger LAN Stick is mainly used in inverters to realize
simple and quick access to Internet. Users can easily check
device information by logging in the monitoring center. The
communication topology is as shown below:
Data Logger
LAN Stick
Android
Wireless Router
iPhone PC
Description of Symbols
To ensure normal use of the datalogger, before using
the datalogger, be sure that:
a. The connected wireless router can normally access to
Internet;
b. The communication address of the inverter MUST BE
" 01 ", which is default value.
c. A computer is connected to this device for parameter
setting.
1
Electrical Connection
Connect LAN Stick to the corresponding interface on the
inverter. Solis-1P5K-4G is used as an example in this manual.
Please perform relevant operations as indicated below:
Corresponding groove
Data Logger LAN Stick Interface
Data Logger LAN Stick Installation
1. Insert LAN Stick to COM port.
2. Fasten the LAN Stick.
1
NOTES
LAN Stick automatically obtains IP by default.
If the network cable supports automatically obtains
IP, please jump to " " for APP registration. 3
If network cable do not support obtains IP automatically ,
please continue to follow " " for IP settings.
2
2
