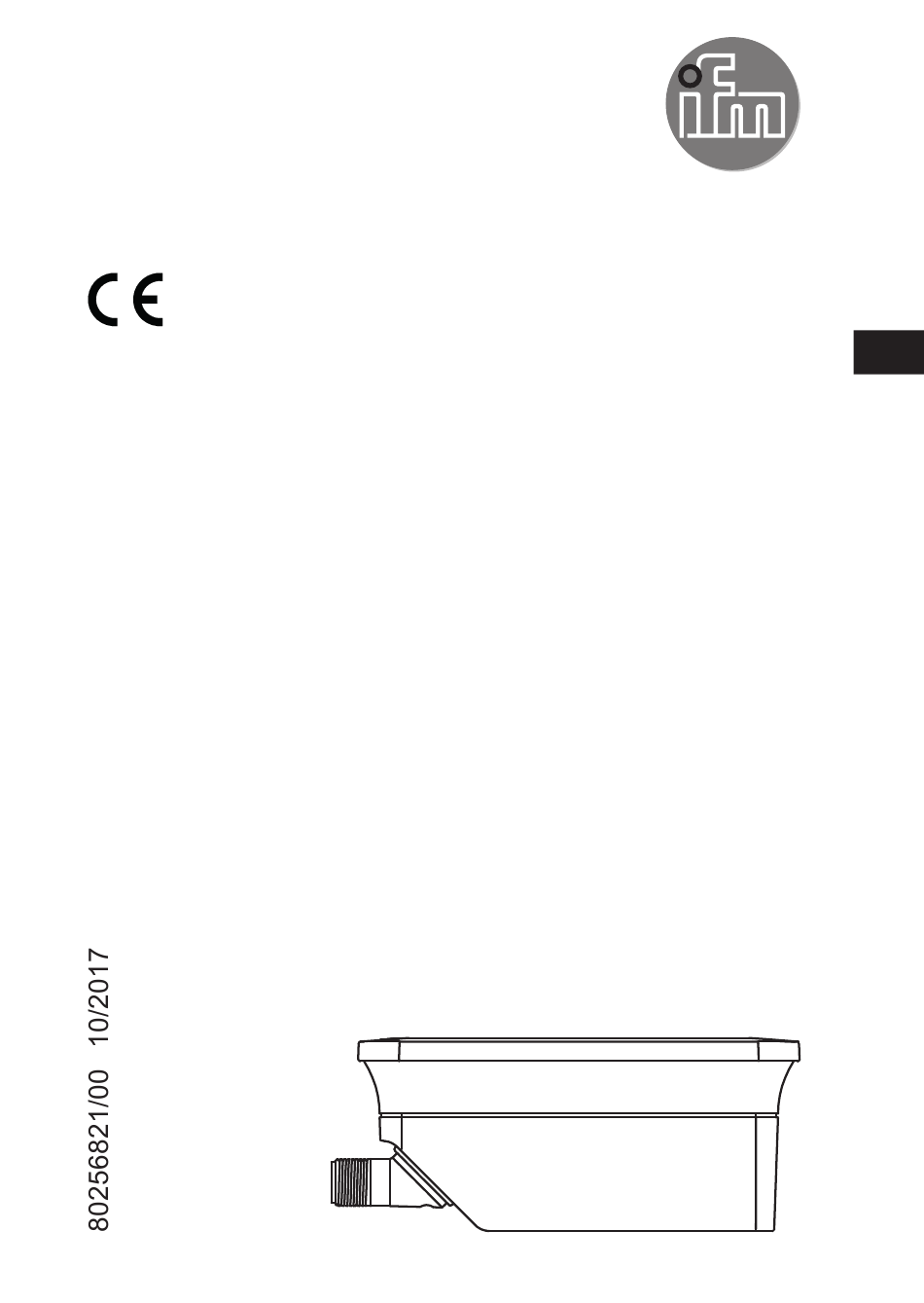

  • Page 1 Installation Instructions RF identification system Read/write head ANT600...
  • Page 2: Table Of Contents

    Content 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used �����������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 2�1 General ���������������������������������������������������������������������������������������������������������4 2�2 Radio equipment ������������������������������������������������������������������������������������������5 2�3 Interference of electronic and medical devices ��������������������������������������������5 3 Functions and features ����������������������������������������������������������������������������������������5 4 Functions �������������������������������������������������������������������������������������������������������������5 4�1 Operating principle ���������������������������������������������������������������������������������������5 4�2 Overview �������������������������������������������������������������������������������������������������������6 5 Installation������������������������������������������������������������������������������������������������������������6 5�1 General installation instructions ��������������������������������������������������������������������6...
  • Page 3 12�1�1 Overview �������������������������������������������������������������������������������������������13 12�1�2 Europe ����������������������������������������������������������������������������������������������13 12�2 EC declaration of conformity ��������������������������������������������������������������������13...
  • Page 4: Preliminary Note

    1 Preliminary note This document is part of the device and contains information about the correct handling of the product� This document is intended for specialists� These specialists are people who are qualified by their training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device�...
  • Page 5: 2�2 Radio Equipment

    The unit may only be used under the operating conditions specified in the data sheet� 3 Functions and features In connection with the evaluation unit DTE10x the read/write head ANT600 enables non-contact reading and/or writing of the RFID transponders (ID tags) conforming to the system�...
  • Page 6: 4�2 Overview

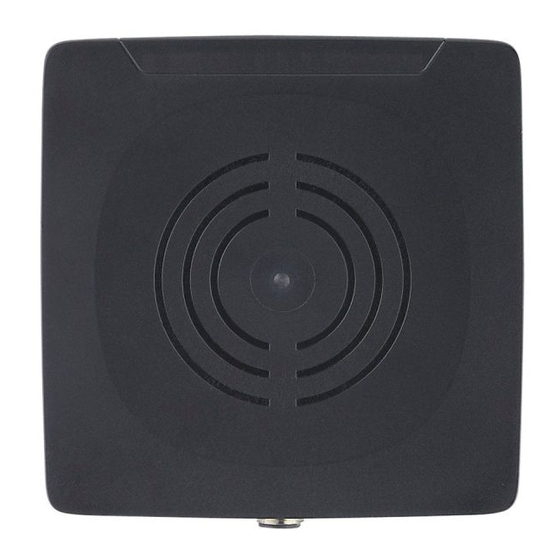

    4.2 Overview Art� no�: ANT600 Function: Read/write head Type designation: DTRHF HLRWIDUS03 Operating frequency: 13,56 MHz Type: Rectangular Max� transmitter power: 2 watt 5 Installation 5.1 General installation instructions When mounting several read/write heads adhere to the minimum distances between the systems�...
  • Page 7: 5�3 Avoiding Interference

    5.3 Avoiding interference The device generates a modulated electrical field with a frequency of 13�56 MHz� To avoid interference of the data communication no other devices generating interference emission in this frequency band must be operated in the vicinity� Such devices are for example frequency converters and switched-mode power supplies�...
  • Page 8: 5�5�2 Installation With Mounting Device E80336

    5.5.2 Installation with mounting device E80336 The mounting device is used to mount the unit to a clamp� The following clamps can be used: ● E21110 with a rod diameter of 12 mm ● E20795 with a rod diameter of 14 mm ● E21109 with a rod diameter of 14 mm 5.5.3 Installation with fixing bars E80337 ►...
  • Page 9: 5�6 Mounting Distances

    5.6 Mounting distances Operating mode Distance side (A) Distance front (B) For reading and writing ≥ 600 mm ≥ 400 mm (at 100% transmitter power) 5.7 Positioning of the ID tags ► Align the ID tag on the antenna central axis...
  • Page 10: Electrical Connection

    ► Connect the device to the evaluation unit DTE10x using the M12 connection� Voltage is supplied via the evaluation unit� DATA A selection of sockets is available on our website at: www�ifm�com Cables with the following characteristics are suitable for the connection: Length Ohmic resistance (feed + return line) Effective cable capacity <...
  • Page 11: Operation

    _0024 Original Scale Dra The read/write head is configured via the connected evaluation unit DTE10x� You can find more information about the operation in the manual: www�ifm�com 9 Scale drawing M12x1 12,4 The max� tightening torque of the screws when mounting the unit is 0�8 Nm�...
  • Page 12: Technical Data

    10 Technical data The data sheets are available on our website at: www�ifm�com 10.1 Detection range with E80384 [mm] -200 -150 -100 [mm] Detection range at 100 % HF power Detection range at 75 % HF power Detection range at 50 % HF power Individual ID tags require 100 % transmission power for correct reading and writing�...
  • Page 13: Maintenance, Repair, Disposal

    12.1.2 Europe Use in all EU countries 12.2 EC declaration of conformity ifm electronic gmbh hereby declares that the ANT600 radio system corresponds to the directive 2014/53/EU� You can find the EC declaration of conformity on our website at: www�ifm�com...
