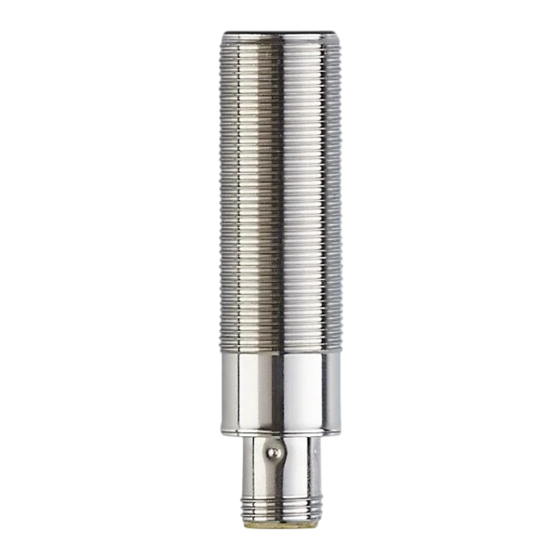

IFM DTM424 Operating Instructions Manual

IFM DTM424 Operating Instructions Manual

Canopen interface rf-identification system read/write head
Hide thumbs Also See for DTM424:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
GB
CANopen interface
RF-identification system
DTM424
DTM425
Read/write head

Advertisement

Table of Contents
loading

Related Manuals for IFM DTM424

Summary of Contents for IFM DTM424

  • Page 1 Operating instructions CANopen interface RF-identification system DTM424 DTM425 Read/write head...

  • Page 2: Table Of Contents

    DTM424 DTM425 Contents Preliminary note .............
  • Page 3 DTM424 DTM425 10 Maintenance, repair and disposal ..........37 11 Approvals/standards .

  • Page 4: Preliminary Note

    Warning of damage to property 1.3 Legal and copyright information © All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh. All product names, pictures, companies or other brands used on our pages are the property of the...

  • Page 5: Safety Instructions

    DTM424 DTM425 2 Safety instructions General • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system.

  • Page 6: Intended Use

    DTM424 DTM425 3 Intended use The read/write head reads and writes ID tags without contact. The data is made available as process data via the CAN-bus interface.

  • Page 7: Items Supplied

    DTM424 DTM425 4 Items supplied • Read/write head • 2x hexagonal nut The device is supplied without installation and connection accessories. Available accessories: www.ifm.com. The optimum function is not ensured when using components from other manufacturers.

  • Page 8: Function

    DTM424 DTM425 5 Function 5.1 ID tags ID tags are passively operated without a battery. The energy required for operation is provided by the read/write head. The energy is provided via an inductive coupling. The integrated antenna coil in the read/write head generates a magnetic field which partly penetrates the antenna coil of the ID tag.

  • Page 9: Installation

    DTM424 DTM425 6 Installation 6.1 Notes on the unit installation When mounting several RFID units adhere to the minimum distances between the systems. Flush mounting of a read/write head in metal reduces the read/write distance. Device performance can be affected if positioned in the immediate vicinity of powerful HF emission sources such as welding transformers or converters.

  • Page 10: Install Device

    DTM424 DTM425 6.4 Install device u Fix the device using the supplied nuts (M18). DTM424 Fig. 3: Flush mounting DTM425 Fig. 4: Non-flush mounting 6.5 Mounting distances DTM424 Operating mode Distance side (A) Distance front (B) For reading and writing ≥ 50 mm ≥ 100 mm...

  • Page 11: Positioning Of The Id Tags

    DTM424 DTM425 DTM425 Operating mode Distance side (A) Distance front (B) For reading and writing ≥ 65 mm ≥ 180 mm 6.6 Positioning of the ID tags The sensing face marks the centre of the integrated antenna coil of the read/write head.
  • Page 12 DTM424 DTM425 w The distance “D” is indicated in the data sheet.

  • Page 13: Electrical Connection

    4: CAN high 5: CAN low The CAN bus connection is almost trouble-free if the following points are considered: u Use cables approved for CAN bus. u Terminate the cables with 120 Ω terminating resistors. Information on available sockets see: www.ifm.com.

  • Page 14: Operating And Display Elements

    DTM424 DTM425 8 Operating and display elements DTM424 DTM425 1 LEDs green / yellow / red State Description green Operating status pre-operational flashes every 1.6 s alternating with yellow Operating status pre-operational and ID tag detected flashes every 0.4 s Operating status operational...

  • Page 15: Operation

    The device is delivered with node ID 32 and a bit rate of 125 Kbits/s. u Only use cables approved for CANopen. u Terminate the cables using terminating resistors (120 Ω). w The ifm cable EVC492 contains integrated terminating resistors. 9.1.1 CANopen functions The following...

  • Page 16: Set-Up

    DTM424 DTM425 Value Bit rate 1000 kBits/s 800 kBits/s 500 kBits/s 250 kBits/s 125 kBits/s 100 kBits/s 50 kBits/s 20 kBits/s If a master is used in the CANopen network for central storage of parameters, the changed values for Node ID (0x20F0 and 0x20F1) and bit rate (0x20F2 and 0x20F3) must be additionally entered in the master.

  • Page 17: Use Of 32 Bit Data Types

    DTM424 DTM425 9.1.4 Use of 32 bit data types CANopen defines data types with a maximum size of 64 bits (8 bytes). By means of the data type, the user data of ID tags is transmitted efficiently via the CANopen interface. The data type is also used for the default setting of the device and the file.
  • Page 18 DTM424 DTM425 0x1010 0x01 Save parameters 0x00000000 (Save device parameters in non- volatile memory) 0x1011 0x01 Load default communication pa- 0x00000000 rameters 0x1014 0x00 COB-ID EMCY Node ID 0x80 (COB-ID emergency message) 0x1015 0x00 Inhibit time EMCY 0x0000 (Inhibit time between EMCY...
  • Page 19 DTM424 DTM425 0x20F2 0x00 Bit rate set- Auto-save ting A (CAN bus bit rate) 0x20F3 0x00 Bit rate set- Auto-save ting B (CAN bus bit rate) Status and control of the reader 0x2150 0x00 Device status (device status flags) 0x2151...
  • Page 20 DTM424 DTM425 0x2182 0x06 Tag informa- 0x00 tion: ID tag type (detected ID tag type, de- fined in 0x2160) 0x2190 0x00 Current UID 0x000000000 upper 4 bytes 0000000 (32 bit) (UID of the ID tag, in reading range, PDO mappable)
  • Page 21 DTM424 DTM425 Read data range 0x2280 0x00 Read start of 0x0000 address (start of the ad- dress range on the ID tag to be read) 0x2281 0x00 Read length 0x0000 (length of the memory range on the ID tag to be...
  • Page 22 DTM424 DTM425 Write data range 0x2380 0x00 Write start ad- 0x0000 dress (start of the address range on the ID tag to be written) 0x2381 0x00 Write length 0x0000 (length of the memory range on the ID tag to be...

  • Page 23: Error Messages

    DTM424 DTM425 9.1.7 Error messages The device supports a number of error messages that are sent in the event of a communication, hardware or RFID error. If one of these errors occurs, the error register (OV index 0x1001) and the error field (OV index 0x1003) are updated.

  • Page 24: Monitoring Activity Via Heartbeat

    DTM424 DTM425 Error register Manufacturer error Manufacturer error Error message Description (0x1001) code name 0xFF02 0x81 0x11 ISO_TAG_ER- The specified section ROR_BLOCK_AL- has already been READY_BLOCKED locked and cannot be locked again. 0xFF02 0x81 0x12 ISO_TAG_ER- The specified section ROR_BLOCK_NOT_U...

  • Page 25: Device Status

    DTM424 DTM425 Node ID 0x2150 0x00 0x20 Device status 0x0180 Node ID + 0x220A 0x01 0x40 0x00000000 0x08 0x0280 Node ID + 0x220A 0x02 0x40 0x00000008 0x08 0x0380 Node ID + 0x220A 0x03 0x40 0x00000010 0x08 0x0480 0 (deactivated) 0x220A...
  • Page 26 DTM424 DTM425 Status read_err Default val- Status buf_ovfl fr_err busy present Default val- Status Value Description EMCY message Power enabled (always 1) Antenna deactivated Antenna activated present No ID tag present ID tag present busy Idle Read or write access active...

  • Page 27: Deactivate Antenna

    DTM424 DTM425 ID tag error codes (updated after read or write access of the ID tag) 0x00 ISO_TAG_ERROR_NO_ERROR The ID tag does not cause an error. 0x01 ISO_TAG_ERROR_COMMAND_NOT_ The specified command is not support- SPECIFIED ed. Example: command code error.

  • Page 28: Read Information Of An Id Tag

    DTM424 DTM425 ID tag type Name Block size [bytes] Number of blocks ST_256b ST_8k 2048 I-Code SLIX2 Via the object 0x2182 0x06 it is possible to poll the ID tag type read by the device. First of all, the detected ID tag type must be read from the object 0x2182 sub-index 0x06 and this value must be entered in the object 0x2161.
  • Page 29 DTM424 DTM425 The following values have proven their worth in practice: u "0" to "5" for dynamic applications (rapidly passing ID tags) u ">5” for static applications ID tag in ● ● ● ● ● ● ● ● ● ●...

  • Page 30: Data Transfer With An Id Tag

    DTM424 DTM425 9.2 Data transfer with an ID tag 9.2.1 Read UID of the ID tag The UID (Unique Identification Number) of the ID tag is available in object 0x2180 as soon as an ID tag is within the reading range of the device. If no ID tag is available, the value 0x0000000000000000 is entered.

  • Page 31: Example 2

    DTM424 DTM425 9.2.2.2 Example 2 The data range 0x44 to 0x48 (4 bytes) is to be transferred with the 6th TPDO. Node ID + 0x0680 0x220A 0x05 0x40 Object directory Index Sub-index Name (object) Value 0x2200 0x05 Read start of the address...

  • Page 32: Example 1

    DTM424 DTM425 Automatic writing of data can be activated with the object "Auto write" (OV index 0x2302). As soon as an ID tag is in the detection range, the last data is written to the ID tag. Only data up to the configured data length is written to the ID tag. Subsequent data is ignored.

  • Page 33: Error Handling For Pdo Transfer

    DTM424 DTM425 Index Sub-index Name (object) Value 0x2301 0x05 Read length (length of the 0x04 memory range on the ID tag to be read; max. 8 bytes) 0x2302 0x05 Auto-write 0x01 Transfer data via RPDO: PDO Transmission Data To the device...

  • Page 34: Lock Data Range On The Id Tag Via Sdo Transfer

    DTM424 DTM425 9.2.6.1 Example The data range 0x34 to 0x38 is to be transferred to the ID tag. Object directory Index Sub-index Name (object) Value 0x2380 0x00 Write start of the address 0x34 (start of the address range on the ID tag to be written)
  • Page 35 DTM424 DTM425 SDO error code Description Possible cause 0x05040001 Client/server command specifier not valid or unknown. 0x05040002 Invalid block size (block mode only). 0x05040003 Invalid sequence number (block mode only). 0x05040004 CRC error (block mode only). 0x05040005 Out of memory.

  • Page 36: Eds File

    Node ID and bit rate. CANopen configuration tools are available for the configuration of the CANopen network and the devices. The EDS files are available on ifm’s website: www.ifm.com Contents of the EDS file: • Communication functions and objects (to CANopen profile DS-301) •...
  • Page 37 10 Maintenance, repair and disposal The unit is maintenance-free. u Contact ifm in case of malfunction. u Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer.
  • Page 38 DTM424 DTM425 11 Approvals/standards For approvals and standards, the following information is available: • Test standards and regulations: documentation.ifm.com • EU declaration of conformity and approvals: documentation.ifm.com • Notes relevant for approval: package inserts of the device...
  • Page 39 DTM424 DTM425 Glossary ATQA Node ID The ATQA (Answer To reQuestA) is used to Unambiguous number of a participant in the identify the ID tag type. CANopen network. Object Controller Area Network, bus system for Term for data/messages which can be use in mobile applications.
