Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
TPS
FIG.E
FIG.F
20-002 www.powercommander.com

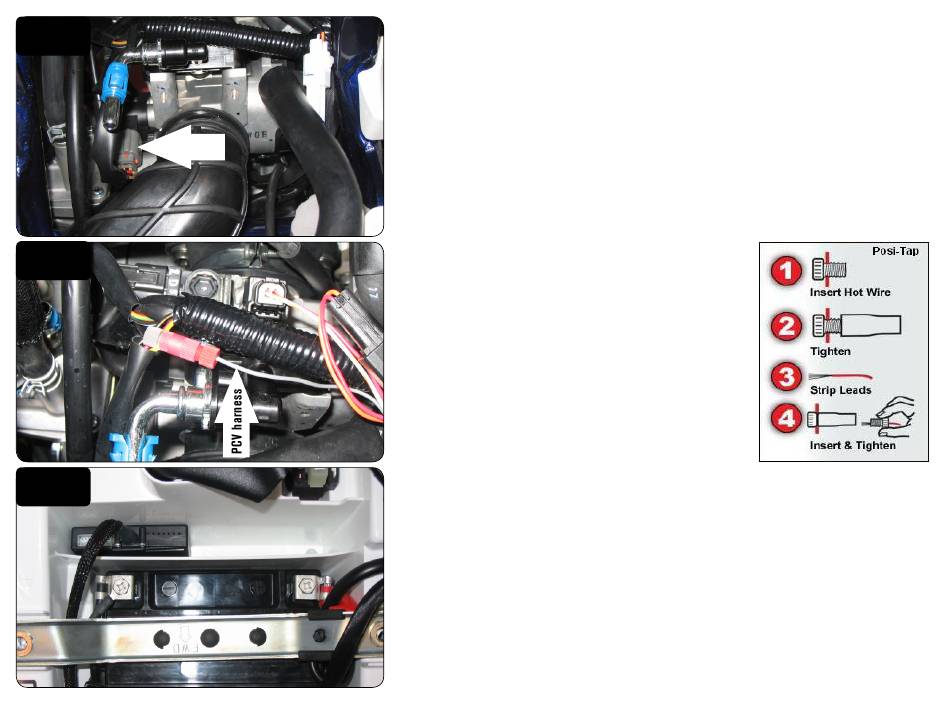

5 Locate the Throttle Position Sensor connector (Fig. D).
This connector is located on the left side of the throtttle body to the inside of the
frame.
6 Follow the TPS harness up to where it meets the main wiring harness.
7 Using the supplied Posi-tap connect the GREY
wire of the PCV harness to the YELLOW wire
of the stock harness (Fig. E)
8 Attach the ground wire of the PCV to the negative side of the battery (Fig.F).
9 Secure the PCV to the rear fender using the supplied velcro. Make sure to
clean both surfaces with the alcohol swab before attaching.
10 Reinstall the fuel tank and seat. Make sure the tank does not pinch the PCV
wiring harness.
2009 Suzuki LTZ400 PCV - 4
