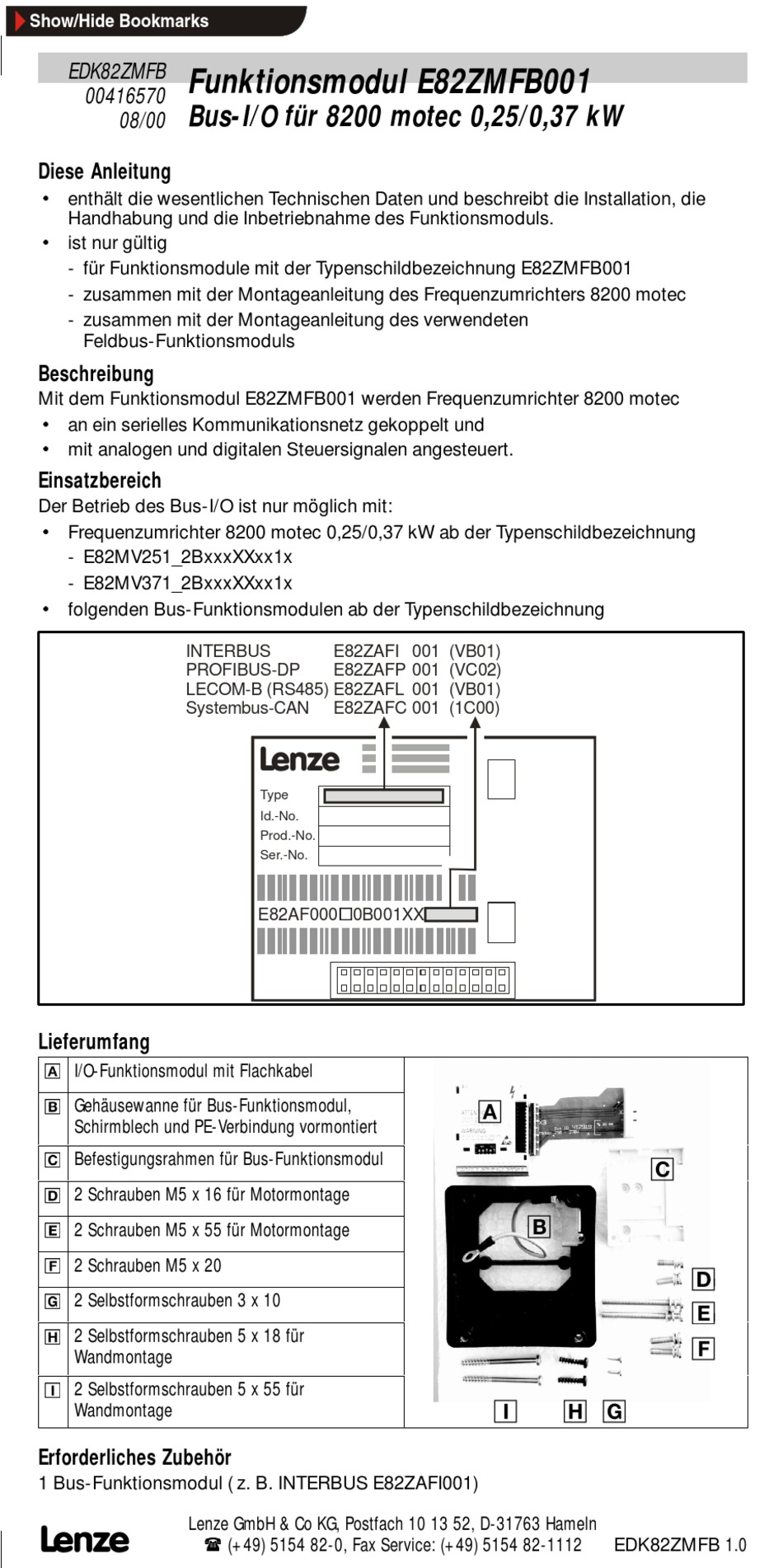

EDK82ZMFB
00416570
08/00
Diese Anleitung
é
enthält die wesentlichen Technischen Daten und beschreibt die Installation, die
é
Handhabung und die Inbetriebnahme des Funktionsmoduls.
ist nur gültig
- für Funktionsmodule mit der Typenschildbezeichnung E82ZMFB001
- zusammen mit der Montageanleitung des Frequenzumrichters 8200 motec
- zusammen mit der Montageanleitung des verwendeten
Feldbus-Funktionsmoduls
Beschreibung
Mit dem Funktionsmodul E82ZMFB001 werden Frequenzumrichter 8200 motec
é
é
an ein serielles Kommunikationsnetz gekoppelt und
mit analogen und digitalen Steuersignalen angesteuert.
Einsatzbereich
Der Betrieb des Bus-I/O ist nur möglich mit:
é
Frequenzumrichter 8200 motec 0,25/0,37 kW ab der Typenschildbezeichnung
- E82MV251_2BxxxXXxx1x
- E82MV371_2BxxxXXxx1x
é
folgenden Bus-Funktionsmodulen ab der Typenschildbezeichnung
Lieferumfang
0
I/O-Funktionsmodul mit Flachkabel
1
Gehäusewanne für Bus-Funktionsmodul,
Schirmblech und PE-Verbindung vormontiert
2
Befestigungsrahmen für Bus-Funktionsmodul
3
2 Schrauben M5 x 16 für Motormontage
4
2 Schrauben M5 x 55 für Motormontage
5
2 Schrauben M5 x 20
6
2 Selbstformschrauben 3 x 10
7
2 Selbstformschrauben 5 x 18 für
Wandmontage
8
2 Selbstformschrauben 5 x 55 für
Wandmontage
Erforderliches Zubehör
1 Bus-Funktionsmodul ( z. B. INTERBUS E82ZAFI001)
Funktionsmodul E82ZMFB001
Bus-I/O für 8200 motec 0,25/0,37 kW
INTERBUS
E82ZAFI 001 (VB01)
PROFIBUS-DP
E82ZAFP 001 (VC02)
LECOM-B (RS485) E82ZAFL 001 (VB01)
Systembus-CAN
E82ZAFC 001 (1C00)
Type
Id.-No.
Prod.-No.
Ser.-No.
E82AF000 0B001XX
(
Lenze GmbH & Co KG, Postfach 10 13 52, D-31763 Hameln
(+ 49) 5154 82-0, Fax Service: (+ 49) 5154 82-1112

0
1
8
7
6
EDK82ZMFB 1.0
2
2
3
3
4
4
5
