C H A R G E S T O R M ®
CHARGESTORM® Connected

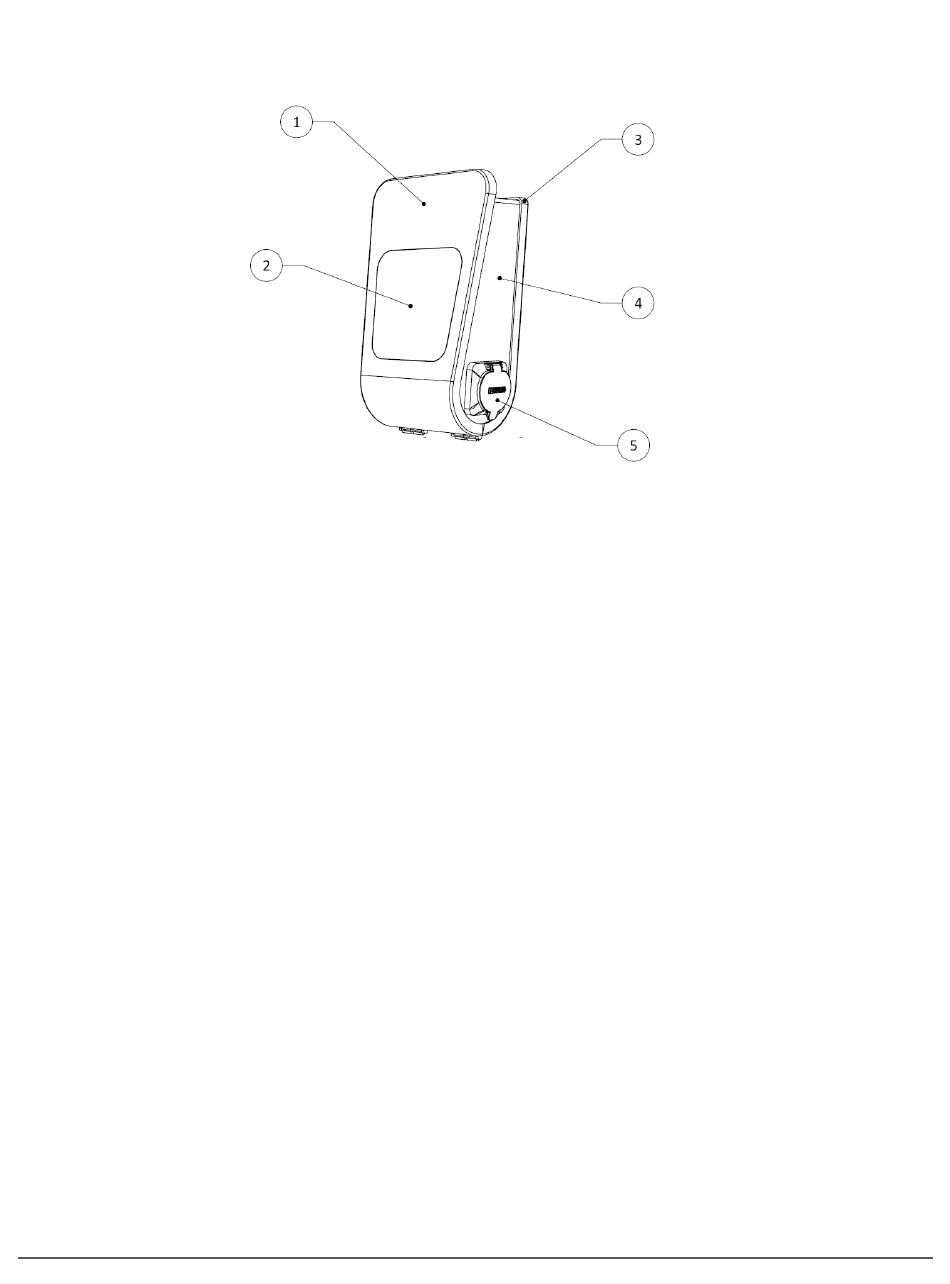

Identify parts on
1) Front panel. The front panel be put down when unlocked.
2) Display with charging status symbols. Status symbols visualize current charging state of the charging
station. The status indication shows status per outlet. Also, an RFID-symbol is part of the display.
3) Back cover
4) Technical box. In the box is charging control electronics mounted. To enter the box must the lock on the
top be opened with the key
5) Electrical Vehicle connector. Connector type depends on model. Type connector is either an outlet or a
fixed cable with a charging gun in the end.
C O N N E C T E D
Figure 1 Parts
User Manual 3
