Battery Charger

MULTI XS 25000, XS 25000
MULTI XT 14000, XT 14000
For lead-acid batteries
User Manual and Guide to professional
charging of starter and deep cycle batteries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTI XS 25000 and is the answer not in the manual?

Questions and answers

Related Manuals for CTEK MULTI XS 25000

Summary of Contents for CTEK MULTI XS 25000

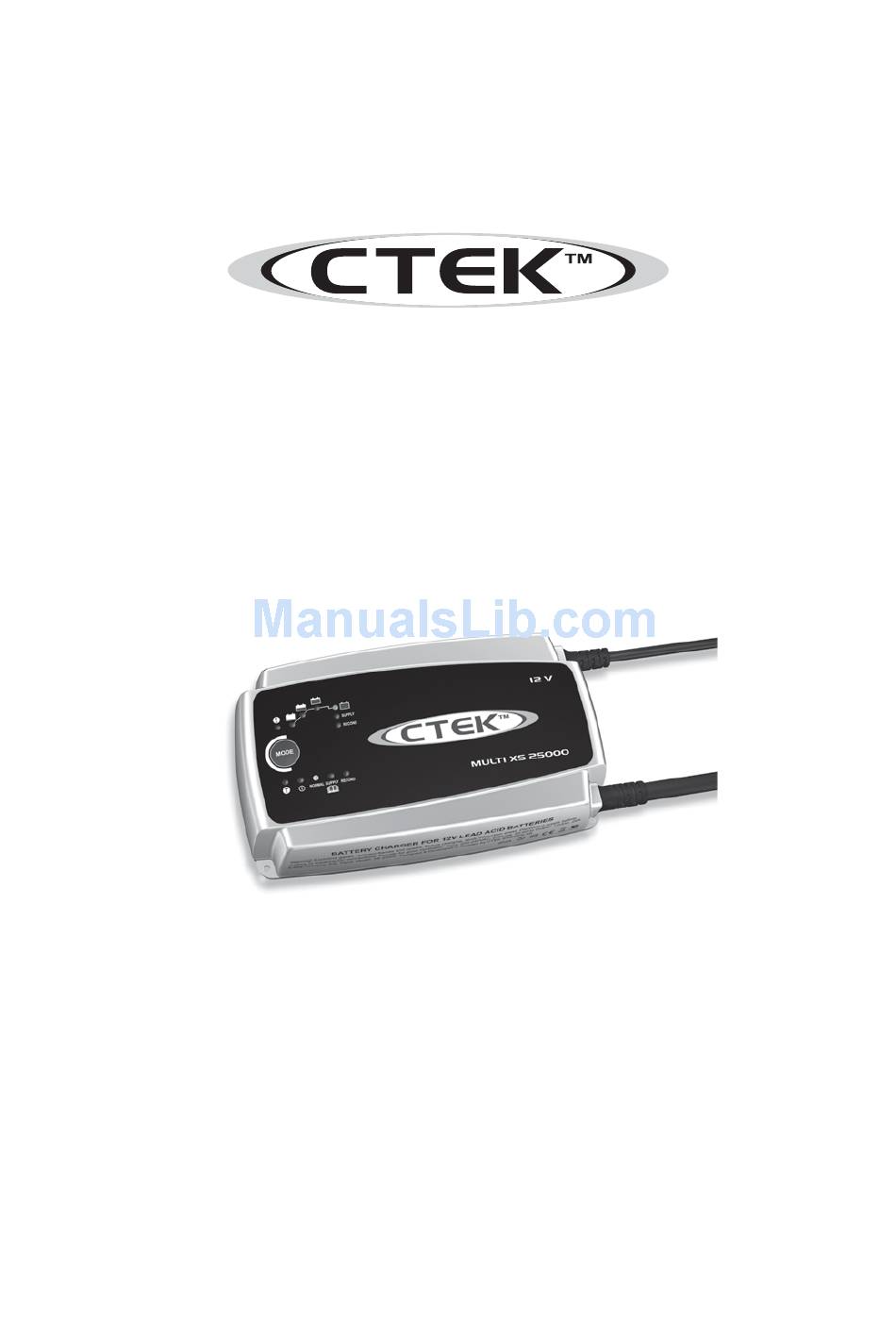

  • Page 1: Battery Charger

    Battery Charger MULTI XS 25000, XS 25000 MULTI XT 14000, XT 14000 For lead-acid batteries User Manual and Guide to professional charging of starter and deep cycle batteries.
  • Page 2 1. Connect the chargers AC cord to an AC Power Supply. The charger will indicate POWER, yellow indication lamp (B). 2. The lamp for completely discharged battery (1) will illuminate if the battery’s voltage is less than 12V for MULTI XS 25000 and XS 25000 or 24V for MULTI XT 14000 or XT 14000.

  • Page 3: Charging Phases

    CHARGING PHASES MULTI XS 25000, XS 25000, MULTI XT 14000 and XT 14000 charges and analyses in eight fully automatic steps. MULTI XS 25000 and MULTI XT 14000 have three different operating modes, see Battery Types and Settings.

  • Page 4: Temperature Compensation

    TEMPERATURE COMPENSATION MULTI XS 25000, XS 25000, MULTI XT 14000 and XT 14000 have a sensor cable placed together with the battery cables. The units will automatically adjust the charging voltage if the temperature deviates from +25°C. A high temperature lowers the voltage and freezing conditions is handled by higher voltage.

  • Page 5: Specification

    The charger is maintenance-free. The charger must not be opened; doing so will invalidate the warranty. If the power cable is damaged it must be replaced by CTEK or its authorized representative. The charger casing can be cleaned using a damp cloth and mild cleaning agent.

  • Page 6: Program Description

    Soft Start Bulk Absorption Tests the battery Peak charge with Recovers a Bulk charge sulphated battery condition MULTI XS 25000 MODE Desulphation Soft Start Bulk Absorption NORMAL Max 25A for 4h until the 25A for max 20h. 14.4V until after the voltage reaches 12.6V.
  • Page 7 Analysis Recond Float Pulse Tests whether the Maintenance for Maintenance for Reconditioning of battery retains maximum maximum a drained battery the energy performance battery life Analysis Recond Float Pulse Warning indication if Max 15.8V and 3A for 13.6V with max 25A for Pulse start at 12.9V, max voltage drops to 12.0V in 4h for deeply discharged...
  • Page 8 8 • GB...
