Summary of Contents for CTEK MULTI XT 4000
-

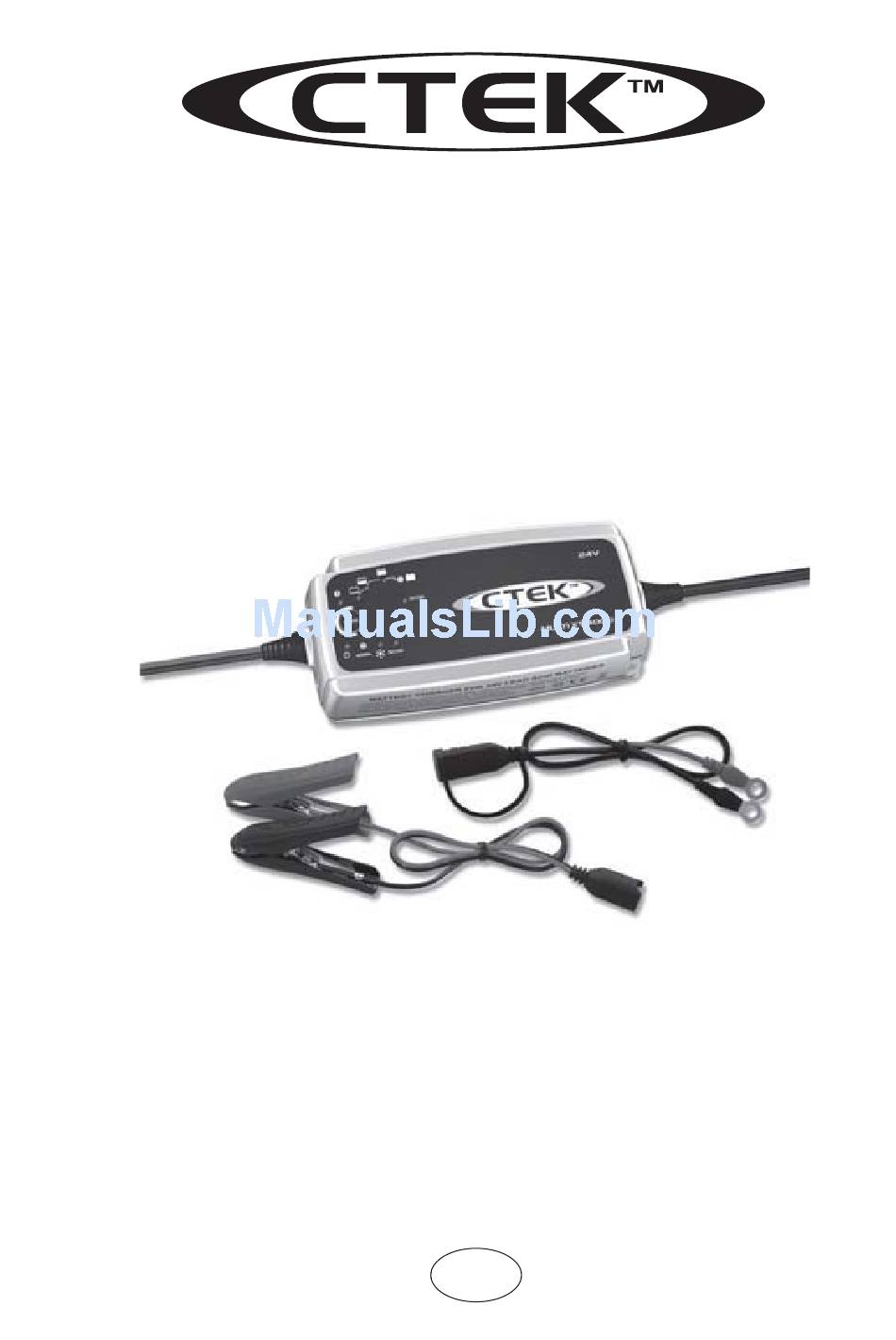

Page 1: Battery Charger
MULTI XT 4000 Battery charger For lead-acid batteries 8–100Ah User Manual and guide to professional battery charging for Starter and Deep Cycle batteries. Model 1008... -
Page 2: Battery Types And Settings
CTEK Sweden AB. It represents the state-of-the-art technology for battery charging. A MULTI XT 4000 will prolong the lifetime of your battery. Read this user manual and follow the instructions carefully before using the charger. - Page 3 Mode ”NORMAL” (28.8V) Normal setting for wet batteries, MF and for most Gel batteries. Mode ”SNOWFLAKE” (29.4V) This setting is recommended for batteries at temperatures below 5°C. It is also recommended for many AGM batteries. This setting is not recommended for maintenance charging when the temperature at times exceeds +5°C.
-
Page 4: Charging Phases
Therefore it is important for the charger to be connected correctly. CHARGING PHASES Mode chosen: ”NORMAL” or ”SNOWFLAKE” MULTI XT 4000 is a multi stage fully automatic charger. Lamp B for chosen setting ”NORMAL” and lamp C for chosen setting ”SNOWFLAKE”. Desulphation (Lamp 1, blinking) Desulphation with pulsing for sulphated batteries. -
Page 5: Temperature Protection
The case can be cleaned with a soft damp cloth and mild cleanser. The charger should be disconnected from the power while cleaning. EQUIPMENT MULTI XT 4000 is delivered with a set of battery leads with battery pole clamps and a set of battery leads with eyelet terminals. WARRANTY CTEK SWEDEN AB, Rostugnsvägen 3, SE-776 70 VIKMANSHYTTAN, SWEDEN provides... -
Page 6: Technical Specification
**) Quality of the current and voltage are very important. High current ripple heats up the battery and makes the positive electrode age prematurely. High voltage ripple could harm other equipment connected to the battery. MULTI XT 4000 produces a high quality current and voltage with very low ripple. -
Page 7: Error Mode
INDICATIONS RECOND RECOND Indication Description Error mode, the charger suspends the charging / voltage maintenance. See further description below. Start mode. Bulk charging, maximum voltage. Absorption charging, voltage limited to chosen voltage. Pulse maintenance charging Recond charging Indication Description STANDBY Mode ”NORMAL”... -
Page 8: Charging Time
CHARGING TIME The table shows the length of time for bulk charging. Battery size (Ah) Time to ~80% charge (h)
