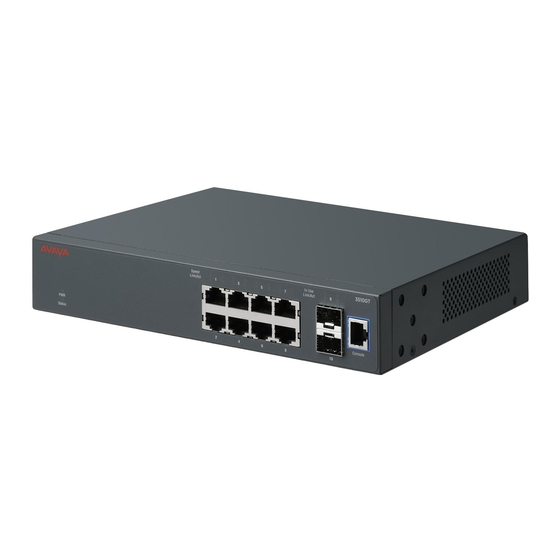

Avaya ERS 3500 Series Manual
Installing the sfp, sfp+, and xfp transceivers on ethernet routing switch
Hide thumbs
Also See for ERS 3500 Series:
- Technical configuration manual (108 pages) ,
- Regulatory information (90 pages) ,
- Fundamentals (80 pages)
Related Manuals for Avaya ERS 3500 Series
Summary of Contents for Avaya ERS 3500 Series
- Page 1 Installing the SFP, SFP+, and XFP transceivers on Avaya Ethernet Routing Switch 3500 Series Release 5.2 NN47203-302 Issue 03.01 March 2014...
- Page 2 Avaya customers and other parties through the Avaya written consent of Avaya can be a criminal, as well as a civil offense Support website: http://support.avaya.com or such successor site as under the applicable law.
- Page 3 Documentation, Hosted Service(s) and Product(s) should be construed as granting, by implication, estoppel, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered trademark of Avaya Inc.
- Page 4 Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
-
Page 5: Table Of Contents
Customer service............................41 Getting technical documentation....................... 41 Getting product training..........................41 Getting help from a distributor or reseller....................41 Getting technical support from Avaya Web site..................41 Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014... - Page 6 Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
-
Page 7: Chapter 1: Introduction
Avaya Mentor videos provide technical content on how to install, configure, and troubleshoot Avaya products. About this task Videos are available on the Avaya Support website, listed under the video document type, and on the Avaya-run channel on YouTube. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series... -
Page 8: Support
Introduction • To find videos on the Avaya Support website, go to http://support.avaya.com, select the product name, and select the videos checkbox to see a list of available videos. • To find the Avaya Mentor videos on YouTube, go to http://www.youtube.com/... -
Page 9: Chapter 2: New In This Release
Chapter 2: New in this release There are no changes to this document as a result of software features for Avaya Ethernet Routing Switch (ERS) 3500 Series Release 5.2. Other changes See the following sections for information about changes that are not feature-related. - Page 10 New in this release Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
-
Page 11: Chapter 3: Safety And Equipment Care
You must keep fiber optic equipment connections clean and damage-free. Use the information in this job aid to properly maintain and care for fiber optic equipment. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014... - Page 12 The proper connector cleaning method depends on the connector contaminants: • Judge cleanliness by visual inspection with a fiber microscope. First inspect the connector, and then clean as required. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
-
Page 13: Cleaning Single Connectors
When you inspect a connector, ensure that light sources are off. The light source used in fiber optic cables can damage your eyes. To avoid getting debris in your eyes, wear safety glasses when you work with the canned air duster. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014... -
Page 14: Cleaning Duplex Connectors
About this task Clean connectors so that the optical signal is minimally attenuated by the connector. Perform this procedure when you suspect more than dust contamination. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com... - Page 15 6. Inspect the connector to ensure it is clean and undamaged. 7. Using care to not touch the clean ferrules, gently push the shroud back onto the connector until it seats and locks in place. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
-
Page 16: Cleaning Receptacles
If you do not reinstall the connector, use a protective cap. If problems persist, ensure that the connector or receptacle is free from damage. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com... -
Page 17: Chapter 4: Sfp Transceivers
Avaya products support all the SFPs listed here. SFP model Common application 1000BASE-T Lowest-cost gigabit Ethernet solution. Up to 100 m reach over Category 5 (CAT5) unshielded twisted pair (UTP). Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014... - Page 18 DDM works during active laser operation without affecting data traffic. The ERS 3500 Series only checks warning and alarm status bits during initialization and during requests for dynamic data. If the system asserts or clears an alarm or warning, the system logs a message and generates a trap.
- Page 19 AA1419064-E6 (DDI) 1530 nm, up to 70 km AA1419065-E6 (DDI) 1550 nm, up to 70 km AA1419066-E6 (DDI) 1570 nm, up to 70 km AA1419067-E6 (DDI) 1590 nm, up to 70 km Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
-
Page 20: Installing An Sfp
Fiber optic equipment can emit laser or infrared light that can injure your eyes. Never look into an optical fiber or connector port. Always assume that fiber optic cables connect to a light source. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com... - Page 21 Apply a light pressure to the device until it clicks and locks into position. 4. Remove the dust cover from the optical bore and insert the fiber optic connector. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
-
Page 22: Job Aid
The following figure shows the 1000BASE-SX MT-RJ SFP. Push the tab to release the device. The following figure shows the wrap-around latch-type extraction mechanism. To remove the device, push the collar towards the module. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com... -
Page 23: Removing An Sfp
2. Depending on your SFP model, to release the SFP, pull the latch handle and use it to extract the module. 3. Slide the SFP out of the module SFP slot. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014... - Page 24 5. Store the SFP in a safe place until needed. Important: If you discard the SFP, dispose of it according to all national laws and regulations. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
-
Page 25: Chapter 5: Sfp Specifications
Chapter 5: SFP specifications SFP labels The Avaya label on a typical SFP contains an Avaya serial number, a bar code, an interface type, and a part number. Figure 1: SFP label General SFP specifications The following table describes general SFP specifications. -
Page 26: Sfps
2 km over MMF. The part number for this model is AA1419074–E6. The following table describes the 100BASE-FX SFP specifications. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com... - Page 27 This SFP is no longer available for purchase, but it is still supported in Release 5.1. The following table describes standards, connectors, cabling, and distance for the 1000BASE- SX SFP. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 28 • up to 275 m using 62.5 µm MMF optic cable • up to 550 m using 50 µm MMF optic cable Wavelength 850 nm Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 29 This SFP is no longer available for purchase, but it is still supported in Release 5.1. The following table describes standards, connectors, cabling, and distance for the 1000BASE- LX SFP. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 30 • Up to 550 meters (m) using MMF • Up to 10 kilometers (km) using SMF Data rate 1.0 Gb/s Line rate (8B/10B code) 1.25 Gb/s Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 31 Launch power – 4.0 to 1.0 dBm Receiver characteristics Receiver sensitivity – 21 dBm Maximum input power – 3.0 dBm 1000BASE-XD DDI CWDM 40 km SFP specifications Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 32 40 km. The part number is AA1419050-E5. Table 11: 1000BASE-XD DDI 1310 nm SFP specifications Parameter Specifications Maximum electrical power consumption 1.0 W Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 33 2 dB at 40 km Transmitter characteristics Launch power – 2.0 to 3.0 dBm Receiver characteristics Receiver sensitivity – 24 dBm Maximum receiver power 0 dBm Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 34 To prevent damage to the optical receiver, ensure that at least 5 dB of attenuation exists between the transmit and receive ports. Table 14: 1000BASE-ZX DDI SFP specifications Parameter Specification Maximum electrical power consumption 1.0 W Connectors Duplex LC Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 35 40 ports, using the same fiber. The long wavelength optical transceivers used in these models provide variable distance ranges using single mode fiber optic cabling. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 36 The 1000BASE-BX SFPs (part numbers AA1419076-E6 and AA1419077-E6) can attain a reach of up to 40 km. The following table describes standards, connectors, cabling, and distances for the 1000BASE-BX SFP. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 37 To prevent damage to the optical receiver, ensure that at least 14 dB of attenuation exists between the transmit and receive ports. To attain the BER of 10 , the minimum attenuation between the transmit and receive ports is 15 dB. Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 38 Table 19: 1000BASE-ZX CWDM SFP DDI (70 km) specifications Parameter Specifications Maximum electrical power consumption 1.0 W Connectors Duplex LC Cabling SMF, 9 µm Data rate 1.0 Gb/s Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
- Page 39 2 dB at 70 km Transmitter characteristics Launch power 0 to 5.0 dBm Receiver characteristics Receiver sensitivity – 24 dBm Maximum receiver power – 3.0 dBm Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014...
- Page 40 SFP specifications Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
-
Page 41: Chapter 6: Customer Service
Chapter 6: Customer service Customer service Visit the Avaya Web site to access the complete range of services and support that Avaya provides. Go to http://support.avaya.com/css/appmanager/public/support or go to one of the pages listed in the following sections. Getting technical documentation To download and print selected technical publications and release notes directly from the Internet, go to www.avaya.com/support. - Page 42 Customer service Installing the SFP, SFP+, and XFP transceivers on Avaya ERS 3500 Series March 2014 Comments? infodev@avaya.com...
