4. On the antistatic surface, hold the module in an upright position so that the
plastic surface faces you (
5. Move the levers on the module to the 135-degree position.
6. Lower the module along the vertical plastic guides until the module touches the
slot socket on the main logic board.
90-degrees
135-degrees

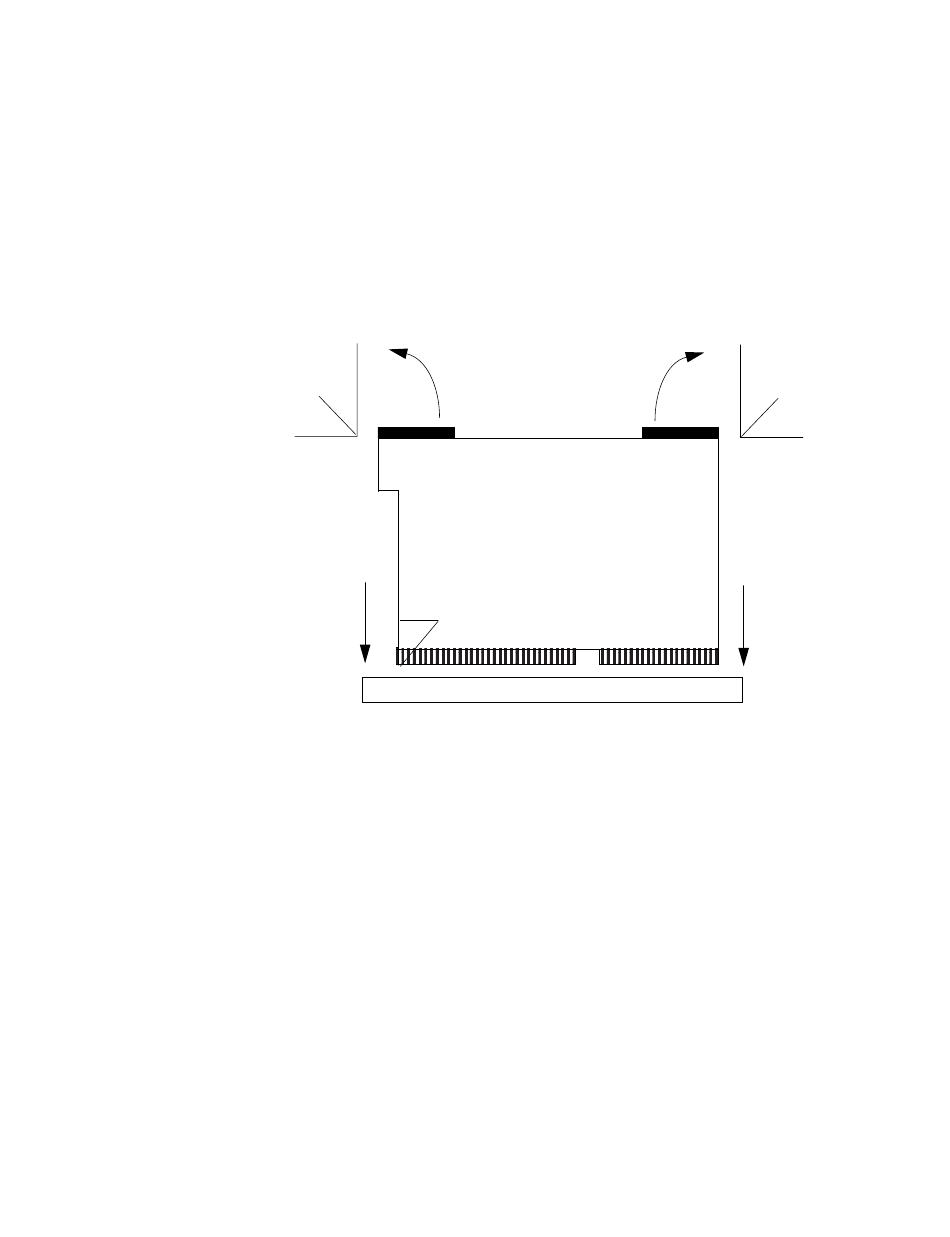

Lowering the Module Into the Chassis
FIGURE 3-4
7. With both hands, simultaneously turn and press the levers downward to the fully
horizontal position. Firmly press the module downward into the socket until it is
fully seated and the levers are fully locked (
