Slot 0
Slot 1
FIGURE 3-1
1. Grip the sides of the shroud-assembly processor area (see
2. With the thumbs of both hands, simultaneously lift the two levers on the module
upwards and to the side—about 135 degrees (
3. Lift the module upwards until it clears the system chassis.
4. Place the module on an antistatic surface.
3-2
Sun Ultra 2 UltraSPARC-II Module Upgrade • October 1999
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

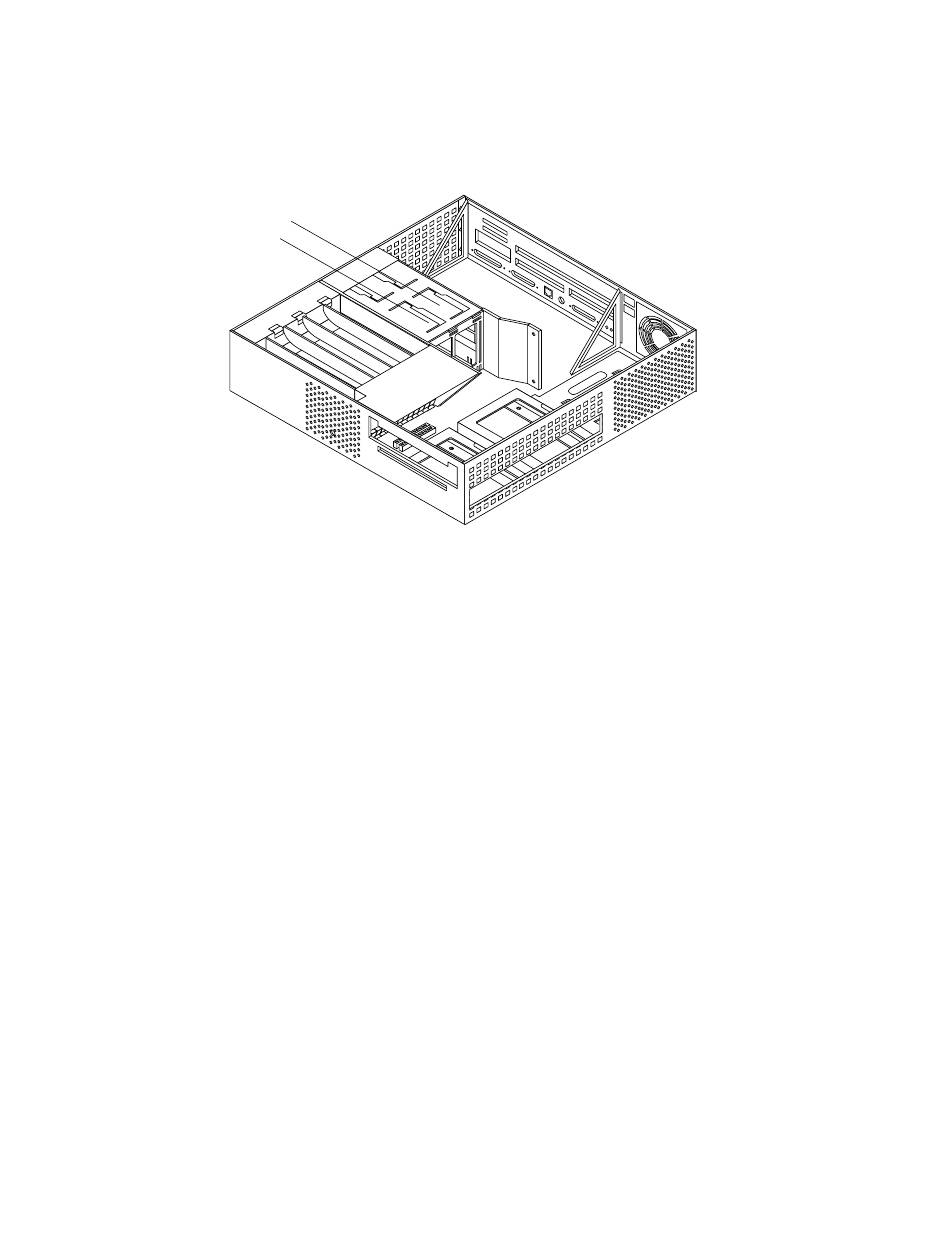

UltraSPARC Module Locations and Shroud Assembly Processor Area
).
FIGURE 3-1
).
FIGURE 3-2
