Johnson 40-6535 Instruction Manual

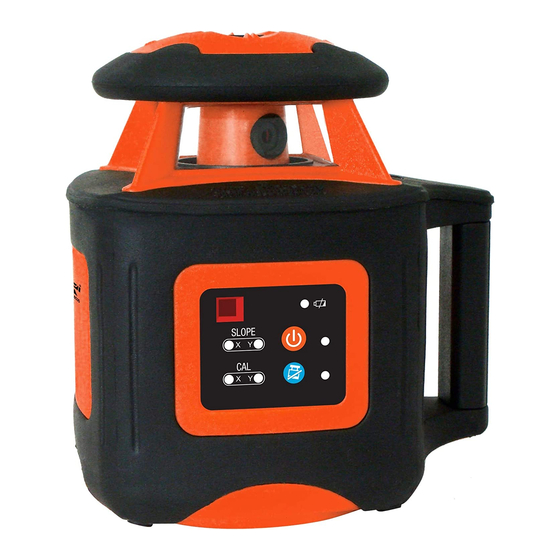

Electronic dual-slope rotary laser
Hide thumbs Also See for 40-6535:
Table of Contents

Advertisement

Quick Links

Download this manual

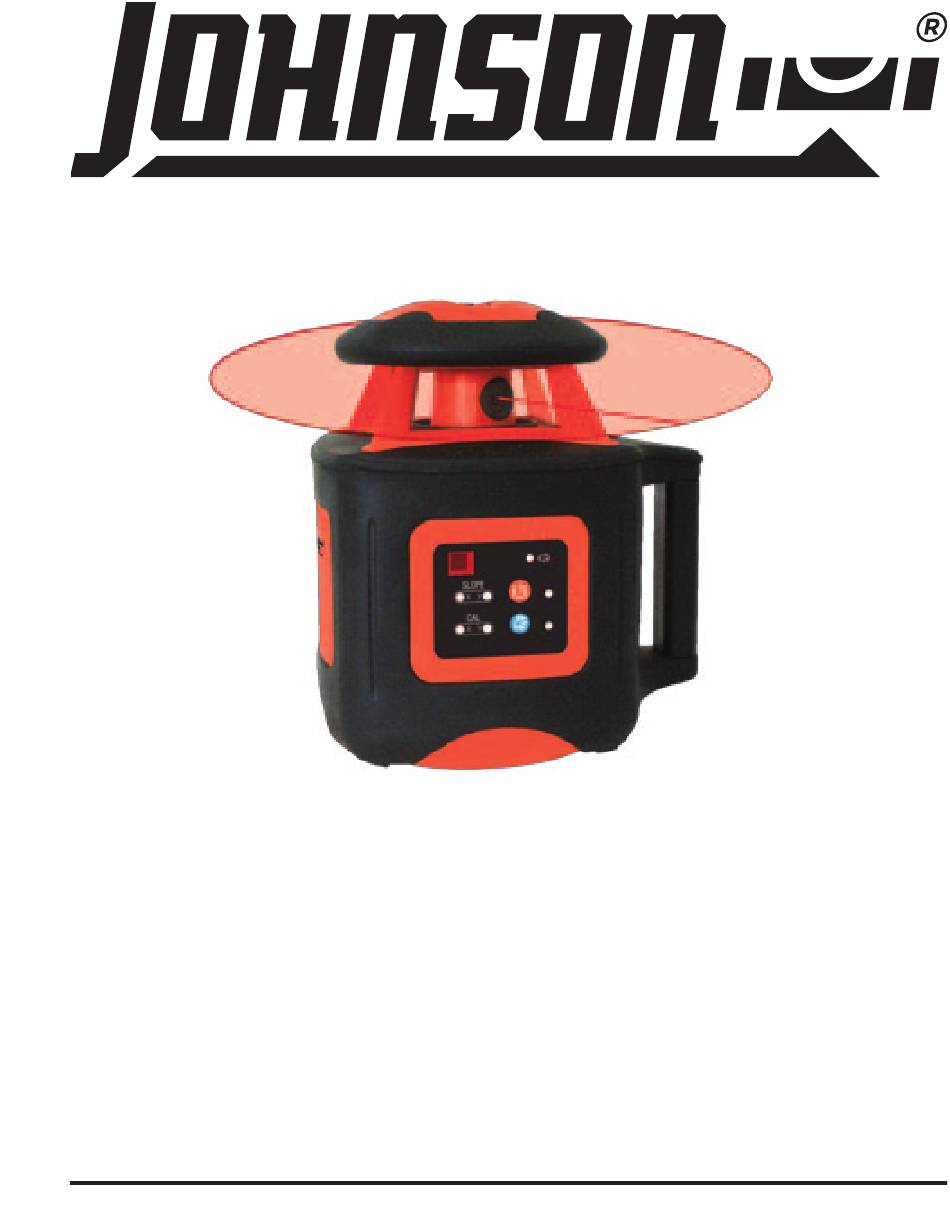

Electronic Dual-Slope Rotary Laser
Model Nos. 40-6535, 40-6541
Instruction Manual
Thank you for your purchase of this Electronic Dual-Slope Horizontal
Rotary Laser. We suggest you read this instruction manual thoroughly
before using the instrument, and save this instruction manual for
future use.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
©2020 Johnson Level & Tool - Rev. 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6535 and is the answer not in the manual?

Questions and answers

Related Manuals for Johnson 40-6535

Summary of Contents for Johnson 40-6535

  • Page 1 This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040.10 and 1040.11 as well as international safety rule IEC 285. ©2020 Johnson Level & Tool - Rev. 2...

  • Page 2: Table Of Contents

    Electronic Dual-Slope Rotary Laser NiMH Rechargeable Battery Pack Battery Charger Remote Control with 9V Battery Detector with 9V Battery Tripod 13’ Grade Rod Magnetic Target Tinted Glasses Instruction Manual Hard-Shell Carrying Case ©2020 Johnson Level & Tool - Rev. 2...

  • Page 3: Features And Functions

    Failure to do so, may void the warranty. DANGER! Class IIIa Laser Product Max. Power Output: ≤ 5mW Wavelength: 625-645nm THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE. ©2020 Johnson Level & Tool - Rev. 2...

  • Page 4: Location/Content

    • Use only original Johnson ® parts and accessories purchased from your Johnson ® authorized dealer. Use of non-Johnson ® parts and accessories will void warranty. 4. Location/Content of Warning Labels ©2020 Johnson Level & Tool - Rev. 2...

  • Page 5: Location Of Parts/Components

    5. Location of Parts/Components Rotating laser emitting window Handle Keypad DC Outlet Jack Battery Cover ©2020 Johnson Level & Tool - Rev. 2...

  • Page 6: Operating Instructions

    (2) The unit can still work during charging with the charger. (3) Do not charge alkaline batteries to avoid explosion. (4) Used (discharged) batteries are hazardous waste and should be disposed of properly. ©2020 Johnson Level & Tool - Rev. 2...
  • Page 7 1. Unscrew the battery cover bolt and remove the battery cover. 2. Put in 4 “C” alkaline batteries (not included) according to the illustrated polarity direction. 3. Screw the battery cover bolt and battery cover back on the unit. ©2020 Johnson Level & Tool - Rev. 2...

  • Page 8: Using The Product

    If the instrument is inclined beyond the self-leveling range of ±5° , it will deliver an audible alarm, and the power indicator lamp will blink. You will need to re-position the instrument until it is within the leveling range. ©2020 Johnson Level & Tool - Rev. 2...
  • Page 9 (fig.1) to adjust slope angle. Note: A single press of either key activates fine tuning while a continuous pressing activates quick adjustment. ©2020 Johnson Level & Tool - Rev. 2...
  • Page 10 Under the sleep mode, if there is no operation for 30 minutes, the instrument will power off automatically. Under sleep mode, press the power key on the remote control to make the instrument start. ©2020 Johnson Level & Tool - Rev. 2...

  • Page 11: Accuracy Check

    The instrument must be checked for accuracy before each operation. If the accuracy is found to be out of tolerance, the laser should be returned to Johnson or an authorized Johnson service center for calibration. Accuracy Check 1.

  • Page 12: Technical Specifications

    28 hours (NiMH) 33 hours (alkaline) Dimensions 7.4" x 5.91" x 8.15" Weight 5.51 lbs. Working Temperature 14°F to 113°F Center Screw Thread 5/8" – 11 Rotation Speed 800 rpm IP Rating IP66 ©2020 Johnson Level & Tool - Rev. 2...

  • Page 13: Application Demonstrations

    •Keep the laser unit dry and clean, especially the laser output win- dow. Remove any moisture or dirt with a soft, dry cloth. •Do not use harsh chemicals, strong detergents or cleaning solvents to clean the laser unit. ©2020 Johnson Level & Tool - Rev. 2...
  • Page 14 Beam reflections or Ensure your body is not detect with laser object blocking detecton blocking the receiver detector window window Ensure laser is not posi- tioned near windows, trucks, or other reflec- tive panels ©2020 Johnson Level & Tool - Rev. 2...
  • Page 15 Remote out of operating Move closer to the laser range No line of sight to laser Position yourself so no objects are between you and the laser ©2020 Johnson Level & Tool - Rev. 2...

  • Page 16: Product Warranty & Registration

    13. Product Warranty & Warranty Registration Johnson Level & Tool offers a three year limited warranty on this product. Warranty details are available at www.johnsonlevel.com. The warranty is limited to repair and/or replacement of the product only. Repairs completed by a non-authorized servce center will void your war- ranty.

This manual is also suitable for:

40-6541
