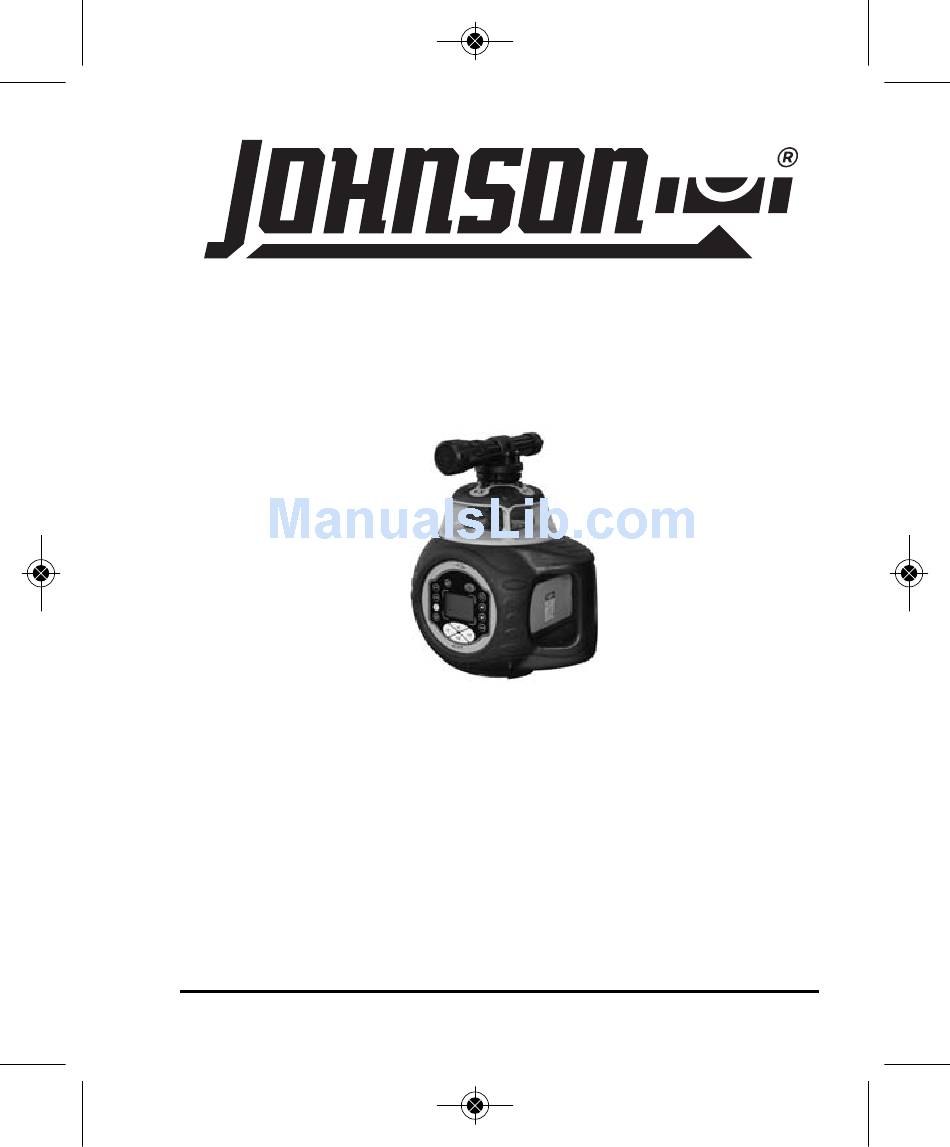

6274H-2_Manuals 9/26/12 11:32 AM Page 1

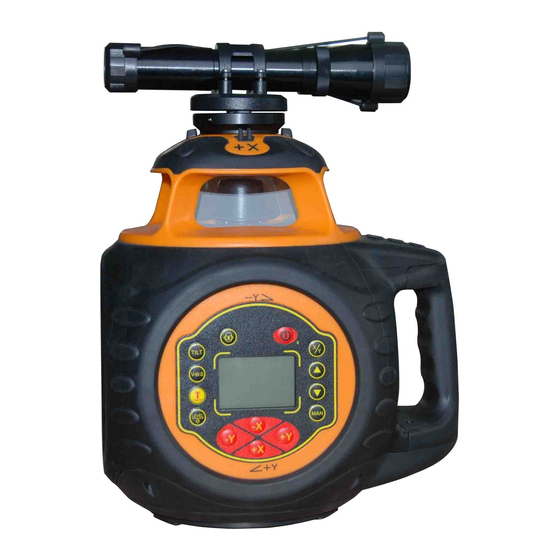

Electronic Self-Leveling Dual Grade
Horizontal Rotary Laser
Model No. 40-6584
Instruction Manual
Congratulations on your choice of this Electronic Self-Leveling Dual
Grade Horizontal Rotary Laser. We suggest you read this instruction
manual thoroughly before using the instrument. Save this instruction
manual for future use.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
©2012 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6584 and is the answer not in the manual?

Questions and answers

Related Manuals for Johnson 40-6584

Summary of Contents for Johnson 40-6584

  • Page 1 Save this instruction manual for future use. This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040.10 and 1040.11 as well as international safety rule IEC 285. ©2012 Johnson Level & Tool...

  • Page 2: Table Of Contents

    5. Location of Parts/Components 13. Warranty Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents Description Model No. 40-6584 Qty. Electronic Self-Leveling Dual Grade Horizontal Rotary Laser Li-ion Rechargeable Battery Pack Battery Adapter Remote Control with 2 AA Batteries...

  • Page 3: Safety Instructions

    • Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. • Use only original Johnson ® parts and accessories purchased from your Johnson ® authorized dealer. Use of non-Johnson ®...

  • Page 4: Location/Content

    6274H-2_Manuals 9/26/12 11:32 AM Page 4 4. Location/Content of Warning Labels ©2012 Johnson Level & Tool...

  • Page 5: Location Of Parts/Components

    Charging Port 5/8” - 11 Battery Screw Cover Screw Thread 5/8” - 11 Connection to the Laser Screw Screw Thread Slope Plate 5/8” - 11 Screw Thread Fine Adjustment Knobs Fine Adjusting Plate Lock Knob ©2012 Johnson Level & Tool...

  • Page 6: Operating Instructions

    LED on the charger will turn green when the battery is fully charged. Charging LED Charger Charge the rechargeable battery pack Charge the rechargeable battery pack with outside the laser battery pack inside the laser ©2012 Johnson Level & Tool...
  • Page 7 Fine Adjusting Plate. Use the sighting scope to rotate the laser to the exact position required. Use the Fine Adjustment Knobs for fine movement. Use the Lock Knob when positioned in the correct position. Fine Adjusting Plate ©2012 Johnson Level & Tool...

  • Page 8: Using The Product

    Manual Mode Button Level Button / LCD Backlight Button Beam Shield Buttons LCD Display Rotating Speed Tilt Mode Vibrate/VWS Mode X-Axis Grade Value Manual Mode Y-Axis Grade Value Remote On/Off Battery Capacity Beam Shield Remote Channel ©2012 Johnson Level & Tool...
  • Page 9 X-axis grade setting mode. The X-axis symbol “X” and axis direction symbol (+) will flash. A short press of the button will move the position to the next symbol. Pressing the grade value buttons will change the values. When the X-axis setting is ©2012 Johnson Level & Tool...
  • Page 10 All four quadrants on the LCD will be displayed. Pushing one of the buttons will turn the beam off in that quadrant and that quadrant will not be displayed on the LCD. Note: One, two or three quadrants can be turned off simultaneously. ©2012 Johnson Level & Tool...
  • Page 11 Note: Grade value cannot be entered when in manual mode. To exit manual mode, hold the button in again for three seconds or push the TILT button to enter TILT mode. ©2012 Johnson Level & Tool...
  • Page 12 When powered on, the laser will automatically check the battery capacity and show the following status. Full battery Half battery Low battery Very low battery and laser should be charged Empty battery and laser needs to be charged ©2012 Johnson Level & Tool...
  • Page 13 6. If the LCD displays on the laser and remote, the remote and laser are on the same channel. ©2012 Johnson Level & Tool...
  • Page 14 If the laser is not used after sixty minutes in “sleep” mode, the laser will power off automatically and all stored information will be lost. ©2012 Johnson Level & Tool...
  • Page 15 LED display: down arrow, up arrow, horizontal on grade bar Dimensions: 6.30" x 3.35" x 1.10" (160 x 85 x 28mm) Weight: 1 lb. (0.45kg) Others: Rain and dust resistant ©2012 Johnson Level & Tool...
  • Page 16 3. Fine/Coarse symbol 4. Beeper symbol 5. Position indication arrows Power Key: Turn on/off the power Fine/Coarse Accuracy Key: Switch detecting accuracy LED Key: Turn on/off the LCD’s light Volume Key: Cycles between high, low and off ©2012 Johnson Level & Tool...
  • Page 17 0.5 second (Fig.2). When the indicator segments are no longer illuminated, the detector is ready for use. Figure 3 Figure 2 Note: The LCD display will still have the power, detection and sound indicators illuminated (Fig. 3). ©2012 Johnson Level & Tool...
  • Page 18 Laser signal The laser signal is down The laser signal is up Horizontal bar indicated on-grade No laser signal is detected Sound: rapid short beeps Sound: no sound Sound: slow short beeps Sound: continuous sound ©2012 Johnson Level & Tool...
  • Page 19 Low Battery Display Function When the battery sign blinks on the LCD, the battery is low and needs to be replaced. If the battery is very low, the unit will power off automatically. Replace the battery. ©2012 Johnson Level & Tool...
  • Page 20 Rod Clamp Connecting to the rod clamp. Connecting to the grade rod. 5. Detector Maintenance • Keep the unit, particularly the reception window, clean. If it does get dirty, use a cloth to wipe it clean. ©2012 Johnson Level & Tool...

  • Page 21: Self-Check & Fine Calibration

    Mark a vertical line on the wall that intersects the laser line from the instrument. Mark a line where the laser line hits the vertical line, and label as ‘A’. ©2012 Johnson Level & Tool...
  • Page 22 3. Using the Remote Control, press the button to select the axis to be calibrated. 4. On the remote, press the buttons to move the laser line up and/or down, until the laser line hits directly on reference point ‘0’. ©2012 Johnson Level & Tool...
  • Page 23 • After Calibration is complete, user must turn the instrument off and then back on. Calibration is then complete. • When calibrating, the user must check accuracy of both the X and Y Axis, until both are within accuracy specification. ©2012 Johnson Level & Tool...

  • Page 24: Technical Specifications

    Battery Pack (included) Dimensions 9.252" x 7.086" x 9.763" (235 x 180 x 248mm) Weight 7.275 lbs. (3.3Kg) Working Temperature 14°F to 113°F (-10°C to 45°C) Center Screw Thread 5/8" – 11 IP Protection Class ©2012 Johnson Level & Tool...

  • Page 25: Application Demonstrations

    6274H-2_Manuals 9/26/12 11:33 AM Page 25 10. Application Demonstrations Grading Squaring Leveling Set Forms Elevation ©2012 Johnson Level & Tool...

  • Page 26: Care And Handling

    12. Product Warranty Johnson Level & Tool offers a three year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com.

  • Page 27: Warranty Registration

    For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Dept. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.

  • Page 28: Accessories

    NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
