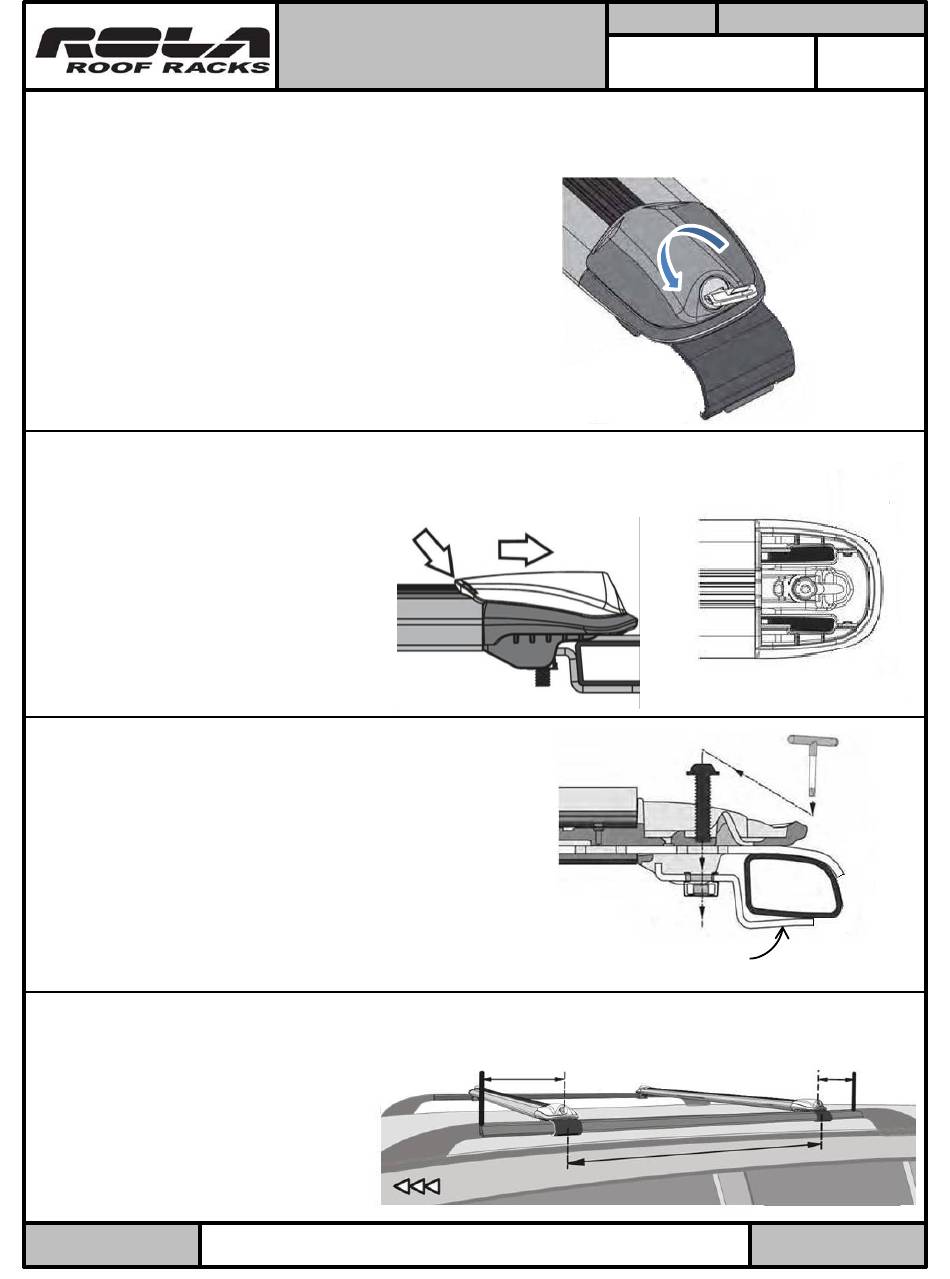

Your cross bars come pre-assembled.
Some disassembly is required to install
these cross bars onto the vehicle's side
rails.
1. U
n-lock the cylinder by rotating 1/4 turn anti-
clockwise. (Fig 1) Repeat this process for all 4
covers.
2. To remove the Covers, firmly grip the
edge of the cover with your fingers (as
shown by arrow in Fig. 2), and pull the
cover towards you - (arrow in Fig. 2). Set
the Covers and keys aside.
3. Remove the bottom straps (see fig 3) by
unscrewing the (4 ) anti-theft bolts with the supplied
"T" wrench tool.
4. Prior to placing the cross-bar assembly on
the vehicle side rails, pull the Top Straps out
slightly (5 to 6 mm) to allow Cross Bars to fit
onto the vehicle Rail Bars.
Place Cross Bars on the
vehicle at the
recommended positions
shown along the Rail Bars
( Fig. 4).
59820N Rev 5-13-11
FITTING INSTRUCTIONS:
VW JETTA WAGON 2009 - On
with Side Rails
grip
pull
350mm
(13 3/4")
Front of vehicle
PART No:
CARRYING CAPACITY
Un-lock Covers
Fig 2
covers removed
bottom strap
700 mm
MIN.
59820
75 kgs
:
165 lbs
Fig 1
Fig 3
Fig 4
Pg 1 of 2
Advertisement
Table of Contents
Related Manuals for Rola 59820
Summary of Contents for Rola 59820
- Page 1 59820 FITTING INSTRUCTIONS: PART No: VW JETTA WAGON 2009 - On 75 kgs with Side Rails CARRYING CAPACITY 165 lbs Your cross bars come pre-assembled. Fig 1 Some disassembly is required to install Un-lock Covers these cross bars onto the vehicle’s side rails.
- Page 2 VW JETTA WAGON 2009 - On FITTING INSTRUCTIONS with Side Rails Fig 5 5. As you push the Bottom Strap upward, introduce the Star Head Bolt through the End Support & Straps. Using the T-Handle wrench provided, fasten the Straps together - ensuring they are fixed in the correct positions along the side rail as specified in (Fig.
- Page 3 N° DE PIÈCE : 59820 VW JETTA WAGON 2009 - On 75 kgs CAPACITÉ DE CHARGE : Porte-bagages de toit Voir le manuel de l’utilisateur INSTRUCTIONS D’INSTALLATION 165 lbs Déverrouiller les Les traverses sont livrées pré-montées. Il Fig. 1 sera peut-être nécessaire de les démonter...
- Page 4 VW JETTA WAGON 2009 - On ROLA FITTING INSTRUCTIONS Porte-bagages de toit Fig. 5 5. En poussant la fixation inférieure vers le haut, faire passer un boulon à empreinte cruciforme à travers le support d’extrémité et les fixations. A l’aide de la clé en T fournie, verrouiller les fixations l’une à...
