VR Installation
4
. Alarm Installation
T
he DVR includes one internal switch for sounding an alarm when any of the sensor
in
puts is activated. The switch is normally open and closed upon activation. The
ci

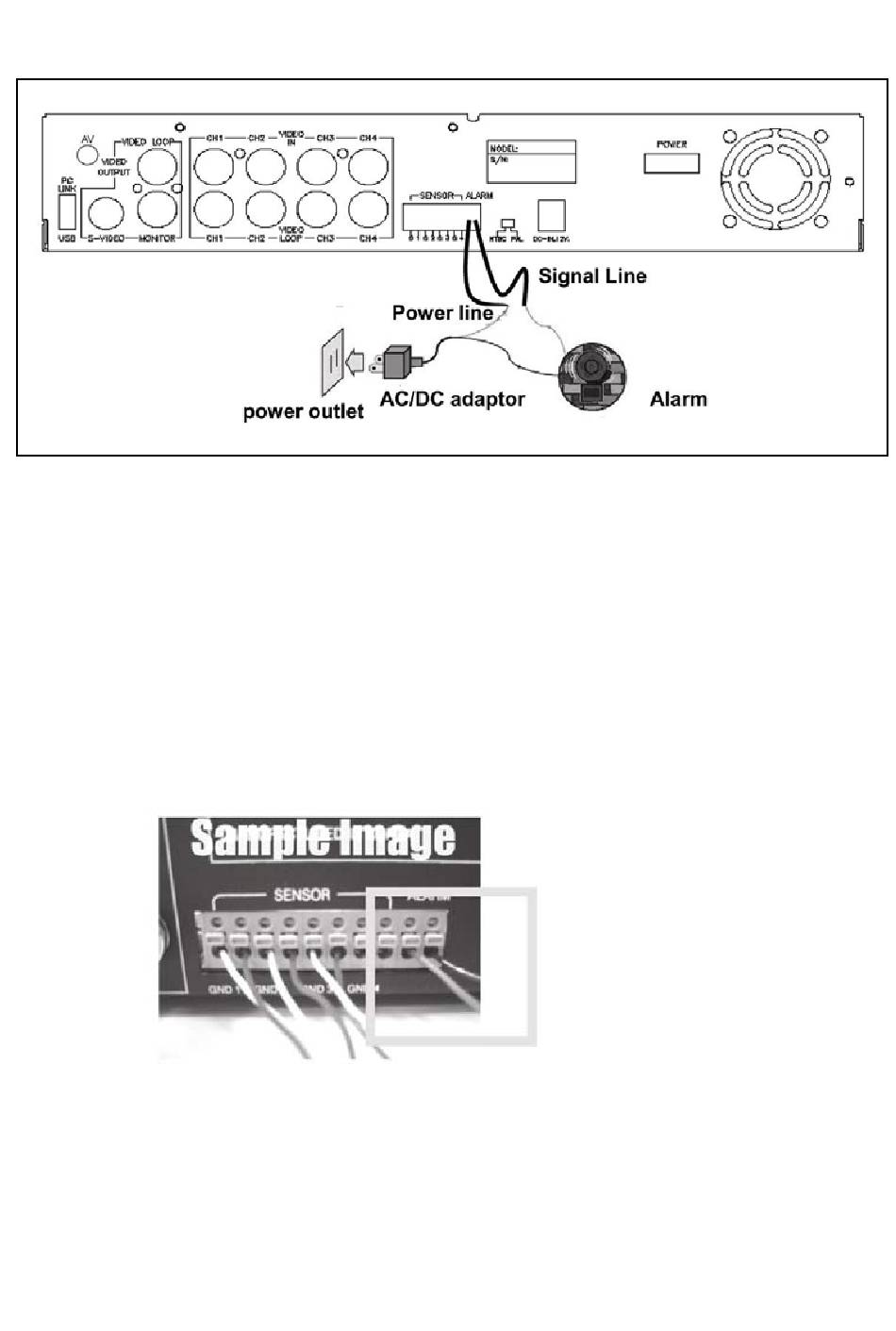

rcuitry is shown in the above figure. The alarm is installed as follows:
i.
The alarm requires
ii.
Connect the alarm power line to the alarm switch terminal on the rear of the DVR
a power supply, which is normally supplied with the alarm.
