DVR Installation
2. Video Input Connection (Camera)
Connect cameras to the DVR using the video input connectors. The DVR provides 4 x
BNC connectors. The camera installation procedures are as follows:
i.
Connect the video signal line to the DVR.
ii.
Connect power to the camera.
3. Sensor Installation

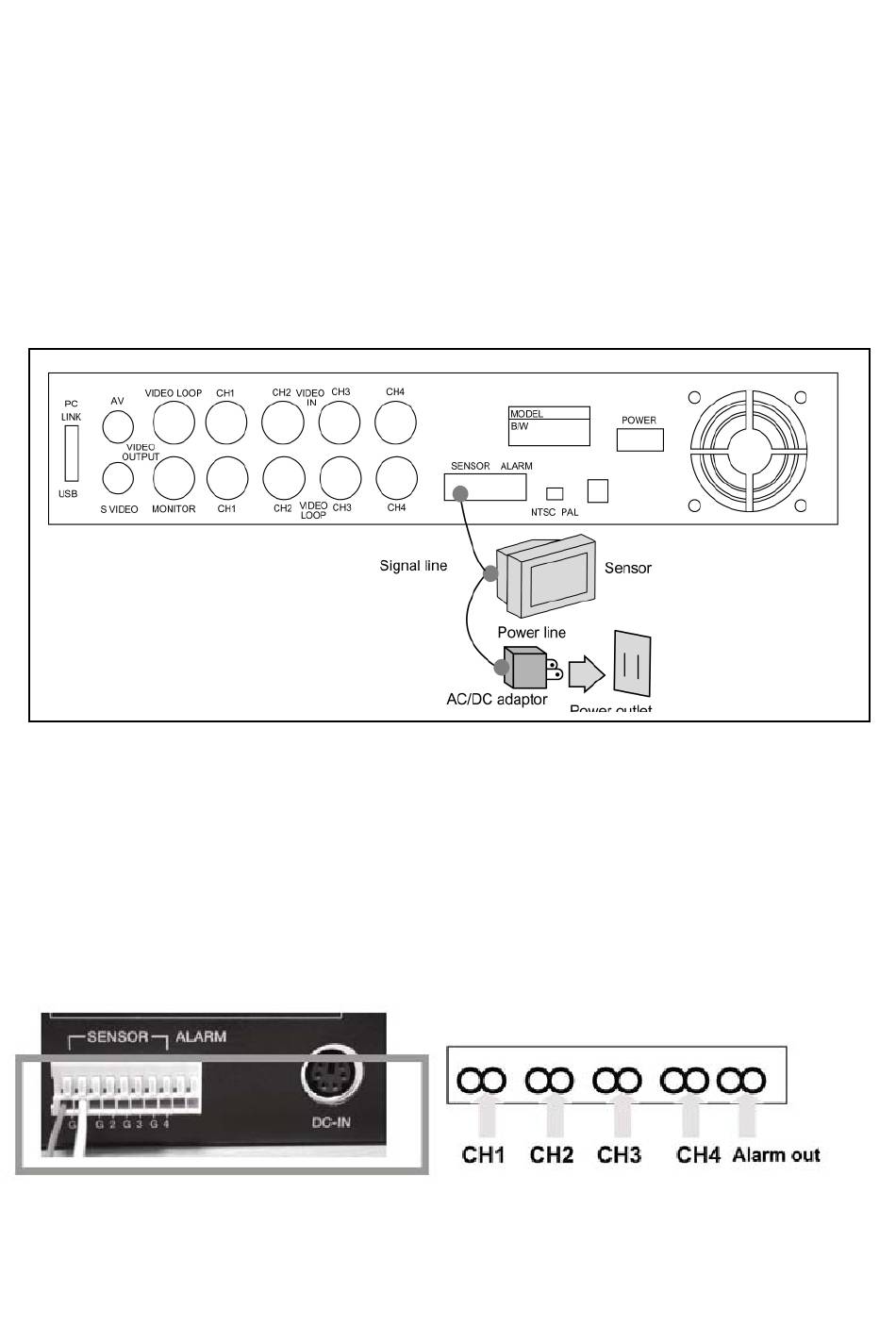

The DVR has 4 sensor inputs, one for each channel. The sensor Installation procedure
is as follows:
i.
Connect the sensor signal line to the unit. The sensor signal terminal is on the
DVR rear panel.
ii.
Connect the sensor adaptor jack into the sensor, and plug in the power adaptor.
