10. After final adjustment is complete secure both
Stationary glasses.
Assemble the Bottom brackets (15) onto the
bottom of the Stationary glasses.
Drill the holes in the Shower base through the holes
in the flange of the Bottom brackets using Ø 1/8"
drill bit. Fasten the bottom brackets with the Round
head screw ST4.2×25 (08).
Cover the screw with the Decorative covers (10).

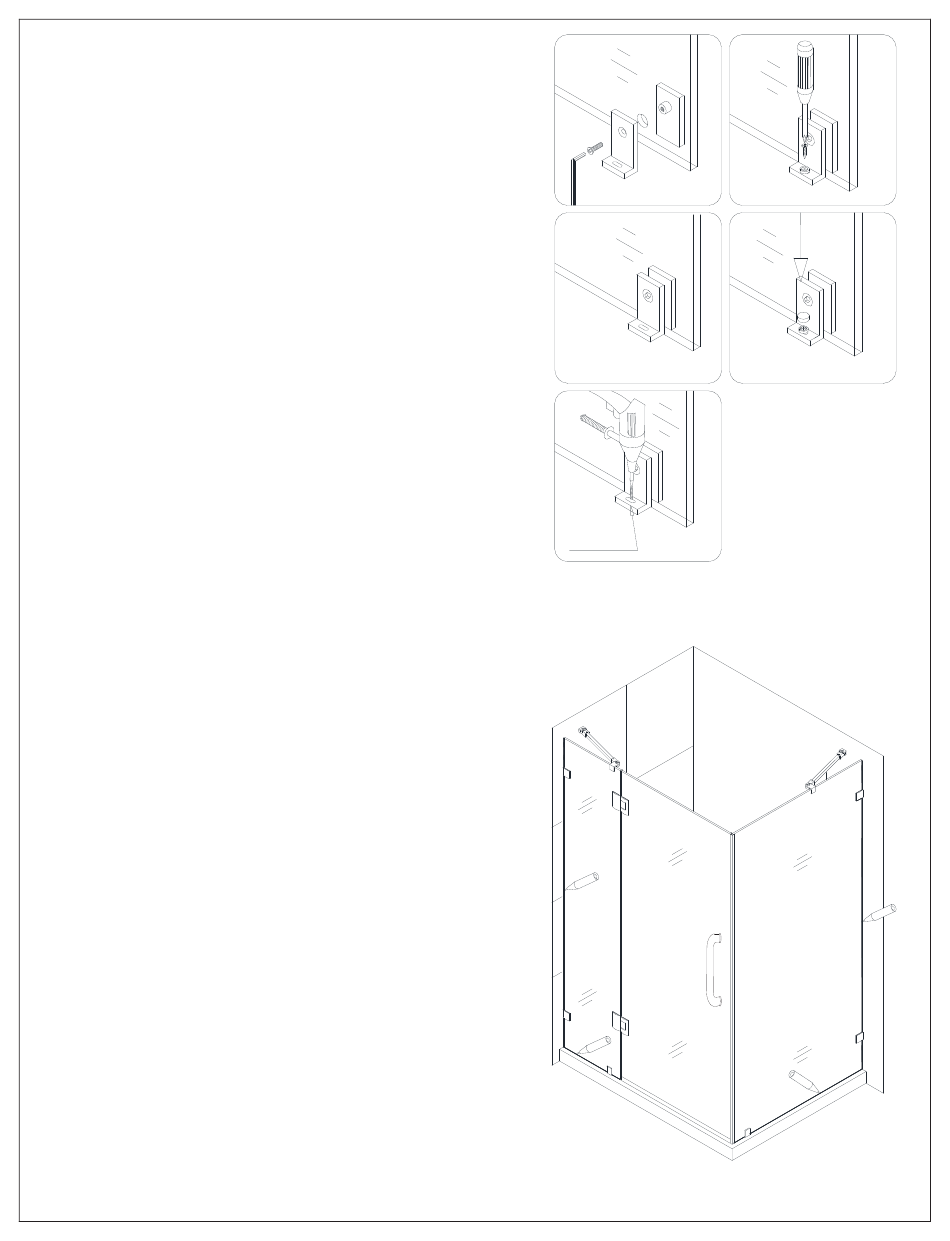

See Fig. 11 for details.
11. Apply the sealant along the connection of the
stationary glasses with the walls and the Shower
base.
See Fig. 12 for details.
1 4
2 5
3
Ø1/8"
Fig
. 11
Fig
. 12
