Gorenje HET945XSC Manual

Gorenje HET945XSC Manual

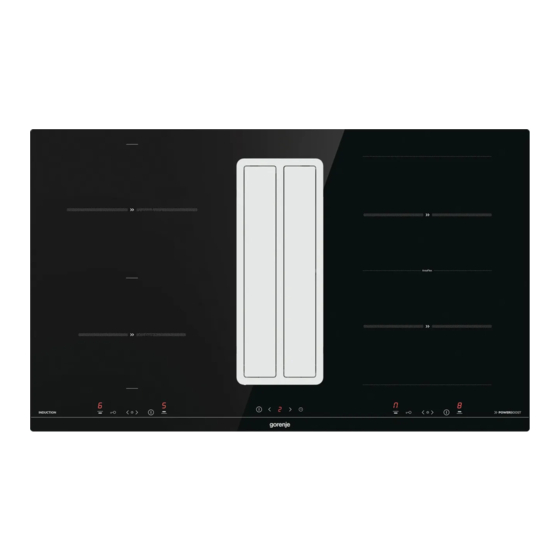

Induction hob with extractor

Advertisement

Manual
¡ i
Induction hob with extractor
Bedienungsanleitung
h ¡
Induktionskochfeld mit integriertem Abzug
Návod
g
Indukční varná deska s odsáváním

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HET945XSC and is the answer not in the manual?

Questions and answers

Summary of Contents for Gorenje HET945XSC

  • Page 1 Manual ¡ i Induction hob with extractor Bedienungsanleitung h ¡ Induktionskochfeld mit integriertem Abzug Návod Indukční varná deska s odsáváním...
  • Page 2 Manual EN 3 - EN 25 Bedienungsanleitung DE 3 - DE 25 Návod CZ 3 – ¢ £ ¤ ¥ Pictograms used / Verwendete Piktogramme / Použité symboly Important information / Wichtige Informationen / Důležité informace Tip / Tipp / Rada...
  • Page 3: Table Of Contents

    CONTENTS Your induction hob Introduction Description Control panel Safety instr. Temperature safety Cooking-time limiter Healthy cooking Induction noises Pans Power levels Pan detection Cooking-timer/alarm Indications in the display Hob functions table Cooking settings Use of the downdraft Operation Operating the induction hob14 How to link bridge induction zones Setting the cooking timer/alarm Using the (child) lock function...
  • Page 4: Your Induction Hob

    YOUR INDUCTION HOB Introduction This hob has been designed for the real lover of cooking. Cooking on an induction hob has a number of advantages. It is easy, because the hob reacts quickly and can also be set to a very low power level.
  • Page 5 VOTRE PLAQUE DE CUISSON À INDUCTION Description 1. Cooking zone Ø 16 cm / 1.2 kW (boost 1.4 kW) 2. Cooking zone Ø 20 cm / 2.3 kW (boost 3.0 kW) 3. Controls for left cooking zones 4. Downdraft 5. Controls for downdraft 6.
  • Page 6 YOUR INDUCTION HOB Control panel 11 12 13 1. Downdraft On/Off key 2. Downdraft extraction minus (-) key 3. Downdraft display 4. Downdraft extraction plus (+) key 5. Downdraft timer key 6. Cooking zone right front selection key 7. Display power level / residual heat 8.
  • Page 7 SAFETY Before use, read the separate safety instructions first! Temperature safety A sensor continuously measures the temperature of certain parts of the hob. Every cooking zone is equipped with a sensor that measures the temperature of the bottom of the pan to avoid any risk of overheating when a pan boils dry.
  • Page 8: Use

    Induction noises A ticking sound • This is caused by the capacity limiter on the left and right zones. Ticking can also occur at lower cooking levels. Pans are making noise • Pans can make some noise during cooking. This is caused by the energy flowing from the hob to the saucepan.
  • Page 9 Be careful with enamelled sheet-steel pans! The enamel may chip (the enamel comes loose from the steel), if you switch the hob on at a high level when the pan is (too) dry; the base of the pan may warp - due, for example, to overheating or to the use of too high a power level.
  • Page 10: Cooking-Timer/Alarm

    Boost power management • Due to the restricted power of the induction hob, the boost function can only be set on one cooking zone simultaneously (for both left or right cooking zones). Both cooking zones can be set to level 9. If one cooking zone is on the Boost level, the other cooking zone can be set maximal to level 7/8.
  • Page 11: Hob Functions Table

    Fault code; See ‘Troubleshooting table’. Lock function active. Fault code; See ‘Troubleshooting table’. Link function bridge zones active. Keep-warm level active Downdraft Downdraft status display <-> Extraction level: 1 = low level / 4 = high boost level (flashing) Grease filter cleaning indication. Replace carbon filter indication.
  • Page 12 Cooking power levels Because the settings depend on the quantity and composition of the contents of the pan, the table below is intended as a guideline only. Use setting ‘boost’ t   • bring the food or liquid to the boil quickly; •...
  • Page 13: Use Of The Downdraft

    OPERATION Use of the downdraft Press the flap to open the extraction inlet.. Open one or both flaps depending on the needed extraction. Place the lid at an angle on the pan with the opening to the extraction side. This ensures maximum extraction.
  • Page 14: Operating The Induction Hob14

    OPERATION Operating the induction hob Use of the touch keys Put the tip of your finger flat on the touch key. Do not apply pressure. The touch keys react to a light fingertip touch. Only operate the touch keys with your finger. The touch key gives a short audio signal when it engages.
  • Page 15: How To Link Bridge Induction Zones

    OPERATION Stop a cooking zone A cooking zone operate. 1. Touch the cooking zone key. 2. Touch the minus (-) key to set the power level to zero (0). The cooking zone stops. The hob stops after 20 seconds when all cooking zones are set to Zero (0) and no other functions are in use.
  • Page 16 OPERATION 3. Touch within 10 seconds the minus (-) or plus (+) key to select a cooking time. 4. The timer has been set. The cooking zone will stop after the set time has passed. You hear an audio signal. Press the plus (+) or minus (-) key to stop the alarm.
  • Page 17: Using The (Child) Lock Function

    OPERATION Using the (child) lock function 1. Switch on the hob and set a cooking level. 2. Touch the lock key for approximately 3 seconds. The timer display shows ro. The hob is now locked. The settings cannot be changed. 3.
  • Page 18 OPERATION 3. Touch the minus (-) or plus (+) key to select a stop time. • 1. = 5 minutes • 2. = 10 minutes • 3. = 15 minutes • 4. = 20 minutes 4. Touch the timer key to confirm the chosen time. The speed level and the stop time level flash in the display.
  • Page 19: Cleaning

    MAINTENANCE Cleaning Daily cleaning • Although food spills cannot burn into the glass, we nevertheless recommend you to clean the hob immediately after use. Best for daily cleaning is a damp cloth with a mild cleaning agent. • • Dry with kitchen paper or a dry teacloth. Stubborn stains Stubborn stains can also be removed with a mild cleaning agent such as washing-up liquid.
  • Page 20 MAINTENANCE Cleaning the grease filter 1. Press the flap from the right extraction inlet. 2. Pull the grease filter out of the extraction inlet. These must be cleaned once a month (or when the filter saturation indication system indicates this necessity) using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.
  • Page 21 MAINTENANCE Carbon filter (recirculation use) indicator In the display the carbon filter indicator S will light up after 120 (downdraft) operating hours. During use, the indicator flashes alternating with the chosen suction mode. 1. Touch either the plus (+) or minus (-) key to stop the flashing. The suction mode is displayed.
  • Page 22: General

    If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first by checking the points mentioned below or check for more information the website ‘www.gorenje.com’. Symptom Possible cause...
  • Page 23 TROUBLESHOOTING Symptom Possible cause Solution L appears in the display (from Lock function activated. Touch simultaneously the the left zones). cooking zone key from the left rear zone and the minus (-) key until you hear an The link function is activated. Deactivate the link function.
  • Page 24: Information According Regulation (Eu) 66/2014

    TECHNICALSPECIFICATIONS Information according regulation (EU) 66/2014 Mesures conformes à la norme EN60350-2 Model identification HET945XSC Type of hob Induction hob Number of electric cooking zones and/or areas Heating technology Induction cooking zones and cooking areas For circular electric cooking zones: diameter of useful surface area per Ø...
  • Page 25: Disposal Of Packaging And Appliance

    ENVIRONMENTALASPECTS Disposal of packaging and appliance In the manufacturing of this appliance durable materials were used. Make sure to dispose of this equipment responsibly at the end of its lifecycle. Ask the authorities for more information regarding this. The appliance packaging is recyclable. The following may have been used: •...
