Summary of Contents for Dometic MSI412

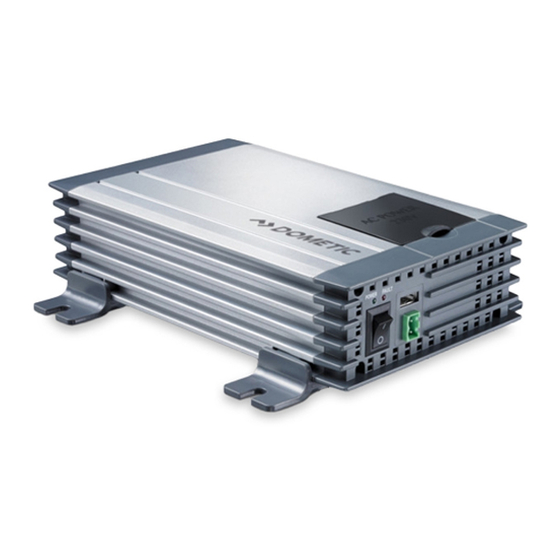

- Page 1 ENERGY & LIGHTING SINEPOWER MSI412 Sine wave inverter Installation and Operating Manual...
-
Page 2: Table Of Contents
Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Contents 1 Explanation of symbols ................... 2 2 Safety instructions .................. -
Page 3: Safety Instructions
CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product. Safety instructions The manufacturer accepts no liability for damage in the following cases: •... - Page 4 Safety when installing the device WARNING! Take the precautions necessary to ensure that children cannot interfere with operation. Dangerous situations may occur which cannot be recognised by children! CAUTION! Ensure the device is standing firmly. The device must be set up and fastened in such a way that it cannot tip over or fall down.
-
Page 5: Scope Of Delivery
Operating the appliance safely WARNING! • Operate the device only if you are certain that the housing and the cables are undamaged. • Even after the fuse triggers, parts of the inverter remain live. • Always disconnect the power supply when working on the device. NOTICE! •... -
Page 6: Technical Description
The inverters can be used anywhere where there is a 12 Vg voltage source. The inverters are connected to: • Vehicle battery: MSI412 (12 Vg) Devices MSI412 can be switched on and off optionally using an external switch. The devices are additionally cooled with a load and temperature-dependent fan (1). - Page 7 If the system has a short circuit, the device switches off. If the voltage is too high, the device switches off and must be restarted manually. If the input voltage is too high or too low or the system overheats, the device switches off and then on again after a short while.
-
Page 8: Fastening The Inverter
Pos. Element Connection cable for direct current Fastening the inverter You can fasten the inverter using the four holders supplied. When selecting the installation location, observe the following instructions: • The inverter can be mounted horizontally or vertically. • The inverter must be installed in a place that is protected from moisture. •... - Page 9 Connecting the inverter • For ambient temperatures higher than 40 °C (such as in engine or heating compartments, or direct sunlight), the heat from the inverter under load can lead to the automatic shut-off of the inverter. • The installation surface must be level and sufficiently strong. NOTICE! Before drilling any holes, ensure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing.
-
Page 10: Connecting The Inverter
2 m. Make sure that a professional fuse is installed between the positive pole (+) and the inverter. Mind the following values: • MSI412: 40 A Connecting the inverter NOTICE! • If no sufficient, professional fuse is installed, the inverter could be damaged and the gaurantee is invalidated. -
Page 11: Using The Inverter
➤ Connect the external switch to the remote port according to the wiring diagram (fig. 7). ➤ Put the switch (fig. 3 1, page 8) in position “I”. ✓ The green status LED lights up (fig. 3 2, page 8) when the switch is closed. Using the inverter Using the inverter NOTE... -
Page 12: Cleaning And Caring For The Inverter
➤ Connect your power consuming device, to the socket (fig. 3 6, page 8) of the inverter. ➤ Switch the inverter on by pressing the switch (fig. 3 1, page 8) on the device (position “I”) … ➤ … or switch on the inverter using the external switch (optional). ✓... - Page 13 No output voltage, no LED No contact to the battery Check contact and cable. lights up Defective fuse (in the inverter Have an electrician change or the vehicle) the fuse. No output voltage, green The battery voltage is less than Charge the battery (start the and red LED light, power 11 V...
-
Page 14: Guarantee
If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. Technical data Technical data MSI412 Rated input voltage: 12 Vg Constant output power: 350 W... - Page 15 Input voltage range: 11 – 15 Vg Low voltage shutdown: <11 Vg Ambient temperature: 0 °C – 40 °C Heat dissipation: Dimensions: 124 x 199 x 49 mm Weight: 0.8 kg Testing/certification: Approvals The device complies with Australian standard (AS/NZS 4763:2011), IEC 60068.2.8:2007, IEC 61558.1:2008+A1 and IEC 61558.2.1:2007.
- Page 16 Mail: info@dometic.be Unit 6-7 on Mastiff Linbro Park MEXICO BRAZIL 2008 Johannesburg Dometic Mx, S. de R. L. de C. V. Circuito +27 11 4504978 Dometic DO Brasil LTDA Médicos No. 6 Local 1 Colonia Ciudad Avenida Paulista 1754, conj. 111 +27 11 4504976 Satélite...
