Multilink EDP Series Installation Manual page 16

Battery Installation Procedure:
Each model in the EDP UPS series has a specific battery harness designed for their use. Each harness includes a main
cabinet harness and individual disconnects for each battery. Please review the following steps and figures with respect
to the EDP UPS model chosen before installing the battery strings.
The 1.0kVA system uses a 24VDC battery system. Refer to figure 4-3 when installing the battery harness for this
1.
system. NOTE: Follow diagram as pictured or system damage may occur.
The 1.5kVA system uses a 36VDC battery string. Refer to figure 4-4 when installing the battery harness for this
2.
system. NOTE: Follow diagram as pictured or system damage may occur.
Page 16

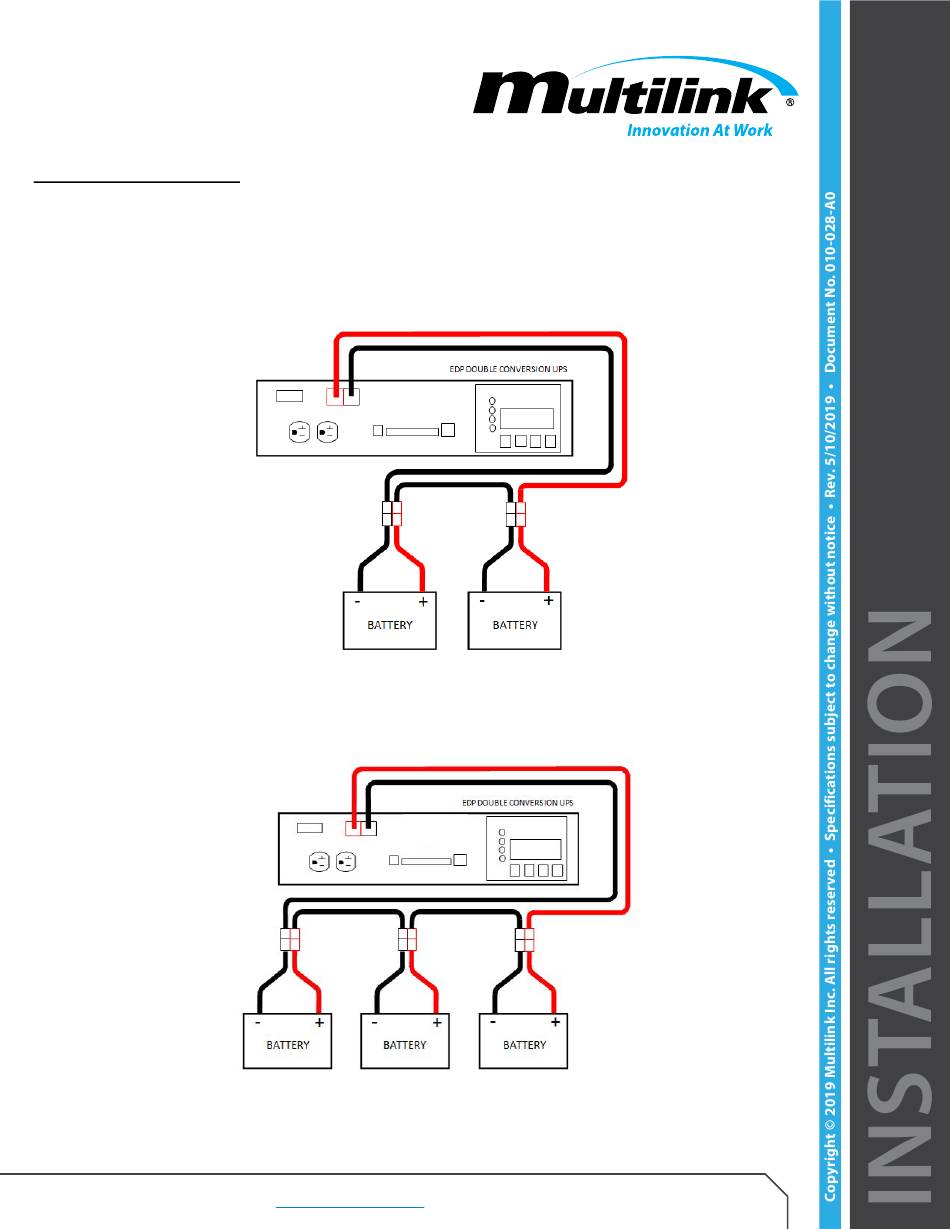

Fig. 4-3: 1kVA EDP model, 24VDC Battery Harness Kit
Fig. 4-4: 1.5kVA EDP model, 36VDC Battery Harness Kit
