If the Safety Automatic Transfer Switch (SATS) is required, attach the corresponding wires of the cabinet's
3.
terminal block buses to the SATS and the power supply as show. If only an EDP Double Conversion power
supply is in use, please continue to step 4.
Attach the corresponding wires of the circular Power harness to their respective terminal block buses in the
4.
cabinet.
Black – AC Utility Line Hot Terminal Block Bus
a)
White – AC Utility and Load Neutral Terminal Block Buses
b)
Red – AC Load Hot Terminal Block Bus
c)
Green – AC Line and Load Ground Terminal Block Buses
d)
Page 14

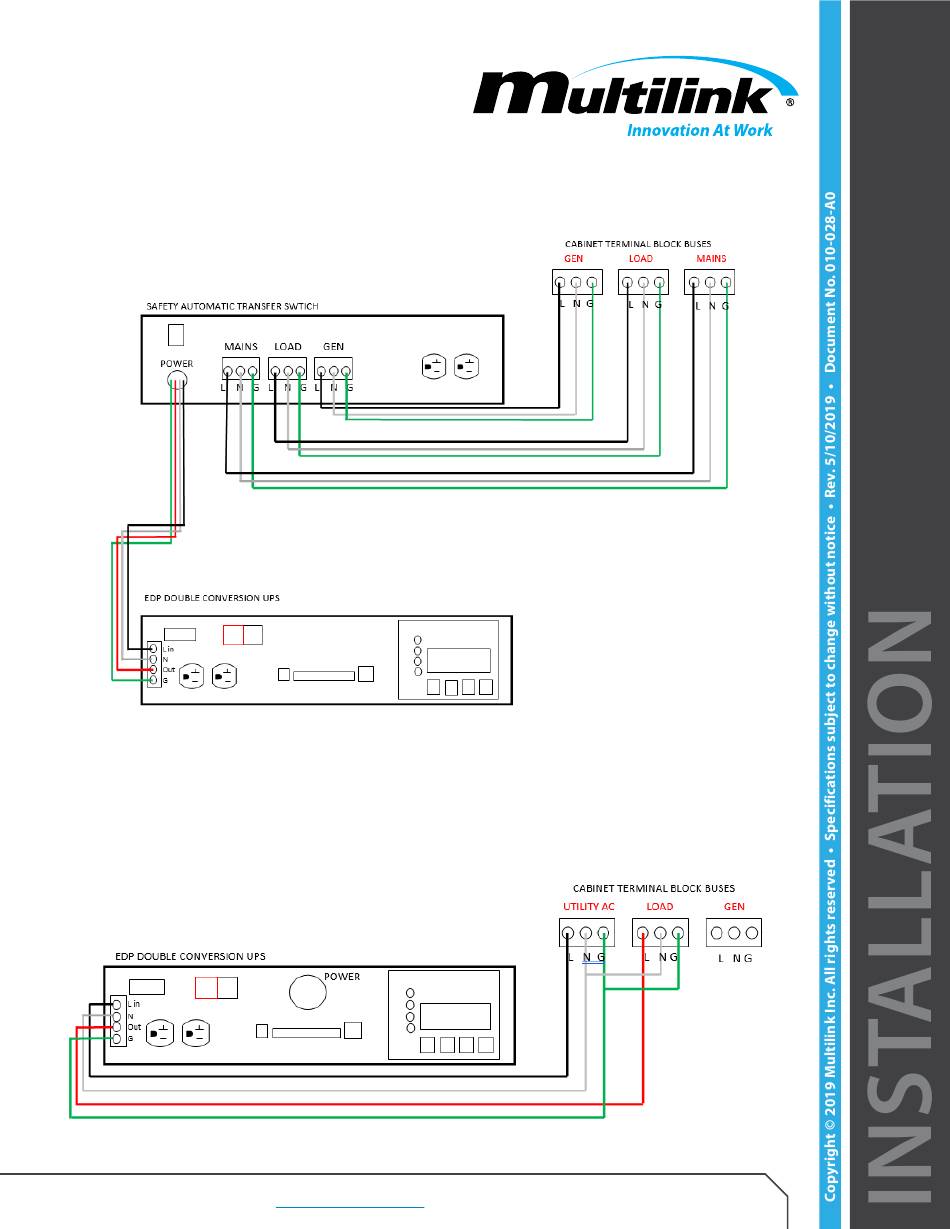

Fig. 4-1 SATS and EDP wiring example
Fig. 4-2 EDP UPS ONLY wiring example
